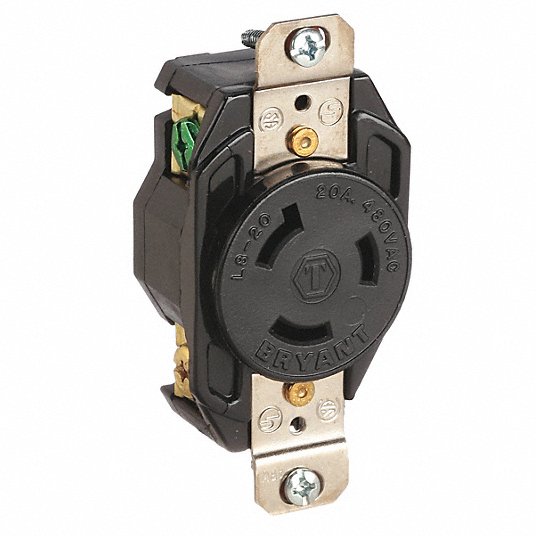

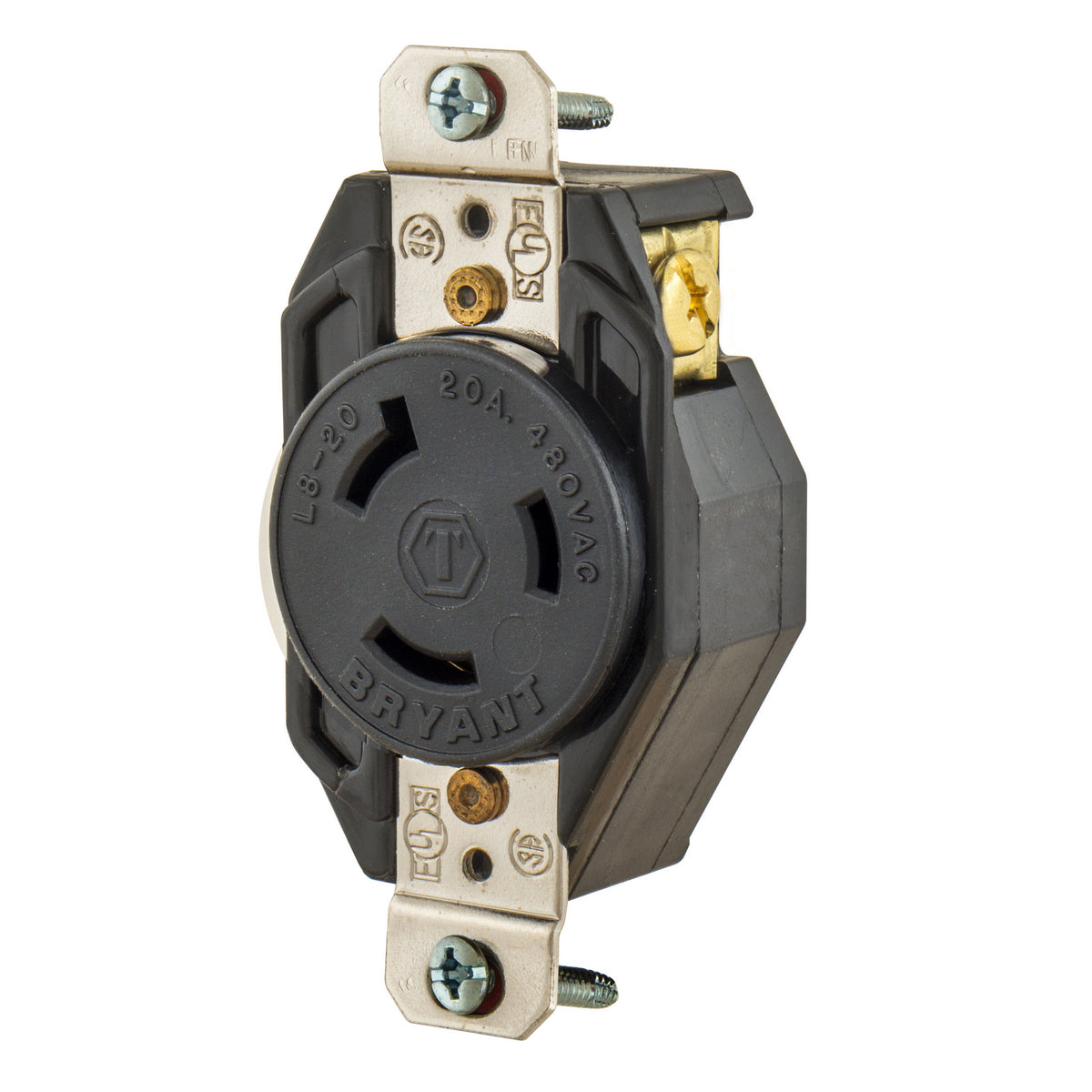

Bryant 70820FR Industrial Grade Locking Receptacle 20 Amp 480V AC

Product Description

The BRYANT 70820FR is an industrial-grade locking receptacle, a standard for heavy-duty electrical devices. Designed for reliable and safe electrical connections, it supports one electrical plug and is often used for dedicated circuits for appliances or equipment. It features terminations with screws that tighten down on conductors to secure them.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide Width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

This receptacle features a one-piece, rivet less copper-alloy contact design that reduces heat buildup and provides secure blade retention. It accommodates cord diameters of 0.300 inch - 0.950 inch.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70820FR
• Country of Origin: US

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 70820FR
• Voltage Rating: 480V AC
• Amperage Rating: 20A
• NEMA Configuration: L8-20
• NEMA Receptacle Configuration: L8-20R
• Number of Poles: 2
• Number of Wires: 3
• Number of Outlets: 1
• Mount Type: Flush
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Contact Material: Copper Alloy
• Flange Material: Composite
• Flange Type: Non-Flanged
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 3 hp
• Housing Color: Black
• Housing Material: Nylon
• Hub Type: Dead End
• IP Rating: Not Rated
• Includes Mounting Hardware: Yes
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.28 in
• Midget Locking: No
• NEMA Enclosure Rating: Not Rated
• Phase: Single
• Polarized: Yes
• Resistance Properties: Corrosion Resistant
• Shrouded: No
• Standards: UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
