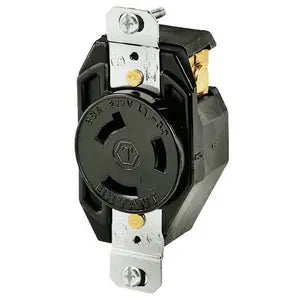

Bryant 70730FR Flush Receptacle 30A 277V L7-30R

Product Description

The BRYANT 70730FR is an industrial-grade flush receptacle. Rated for 30A and 277V AC, this 2-pole, 3-wire grounding receptacle features combination back and side wiring terminals that accept #14 to #8 AWG solid or stranded conductors. The NEMA rating and configuration are molded into the face for easy identification.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade flush receptacle with robust construction for secure and reliable connections in demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70730FR
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70730FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: NYLON FACE, MOLDED REINFORCED THERMOPLASTIC POLYESTER BASE
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Single Locking
• UPC: 781786690233
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 277 VAC
• Voltage Rating Description: 277V AC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Industry Standard(s): WR Rating
• Nema Rating: L7-30R
• Standards - RoHS Compliance Status: CM
• Rating - Amps: 30A
• Rating - Volts: 277V
• Ground: Grounding
• Mounting: Flush
• Face OD: 1.56 in
• Brand: BRYANT
• MPN: 70730-FR
• Wiring: BACK, SIDE
• VOLTAGE RATING: 277 V
• CURRENT RATING: 30 AMPERE
• GROUND TYPE: GROUNDING
• CONFIGURATION: L7-30R
• APPROVAL: UL 498, CSA, CE, NOM
• CONSTRUCTIONAL FEATURE: IMPACT RESISTANT, CHEMICAL RESISTANT
