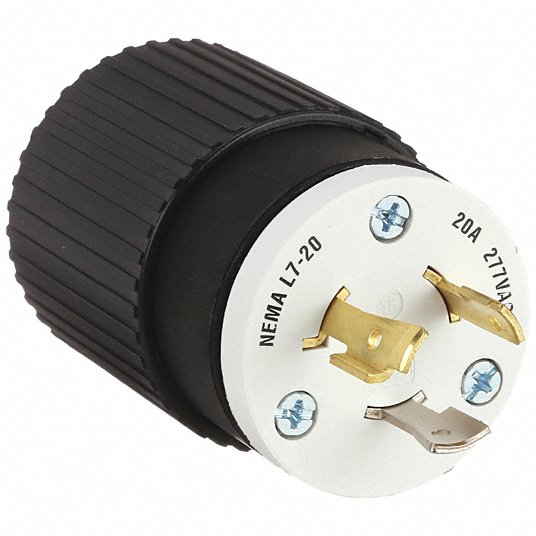

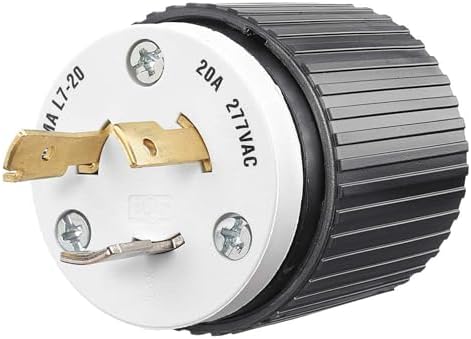

Bryant 70720NP Industrial Grade Locking Plug 2-Pole, 3-Wire, 20 Amp, 277V AC, Nema L7-20P

Product Description

The Bryant 70720NP industrial grade locking plug is designed for heavy-duty electrical connections. This 2-pole, 3-wire plug features a resilient dust seal to prevent moisture and contaminants from entering the wiring chamber. Its internal self-centering triple gripper cord grip ensures secure cord retention and reduces installation time. Ideal for industrial and commercial power applications.

• Resilient dust seal prevents moisture and contaminants from entering the wiring chamber.
• Internal self-centering triple gripper cord grip provides secure cord retention.
• Impact and chemical resistant nylon construction ensures durability.

Product Highlights

Industrial grade locking plug with secure cord retention and durable nylon construction for reliable electrical connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70720NP
• Country of Origin: US

Technical Specifications

• Brand: Bryant Electric
• Voltage: 277 Volts
• Material: Nylon
• Connector Type: Plug in
• Number of Poles: 2
• Number Of Wires: 3
• Amperage: 20 Amps
• Specification Met: NEMA
• Application: Extra Heavy Duty Industrial
• Catalog Number: 70720NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Triple Gripper Nylon Plug
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Locking Plugs
• UPC: 781786690127
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 277 VAC
• Voltage Rating Description: 277 VAC
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L7-20P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Body Length: 2.13 in
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black; White
• Housing Material: Nylon
• IP Rating: IP20
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Wire Size: 18 AWG
• NEMA Configuration: L7-20
• NEMA Plug Configuration: L7-20P
• Number of Blades: 3
• Outside Diameter: 2.13 in
• Overall Length: 2.13 in
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• Model: 70720NP
