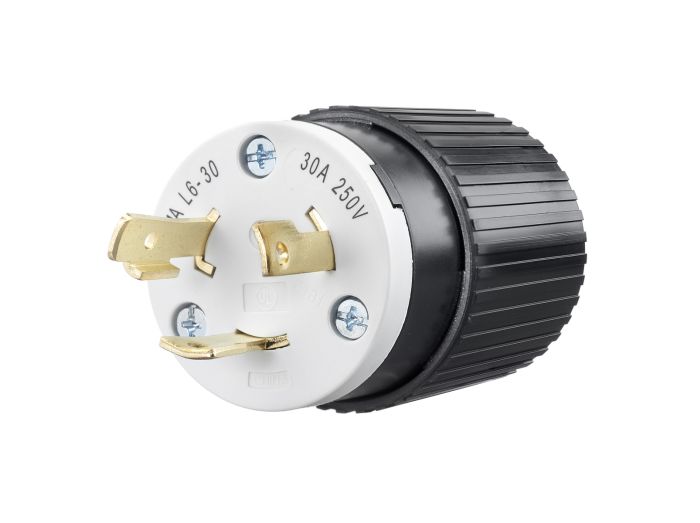

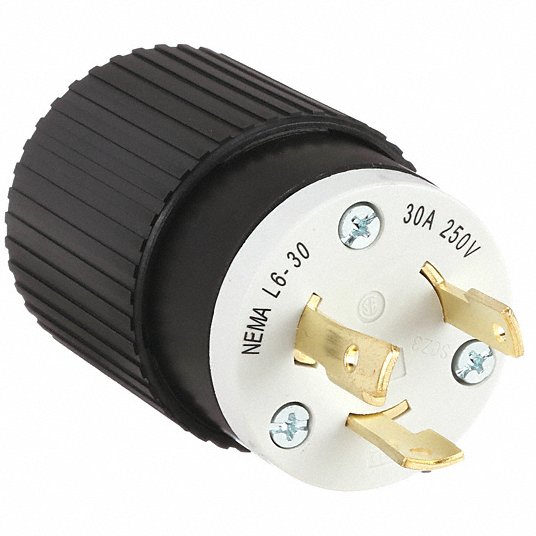

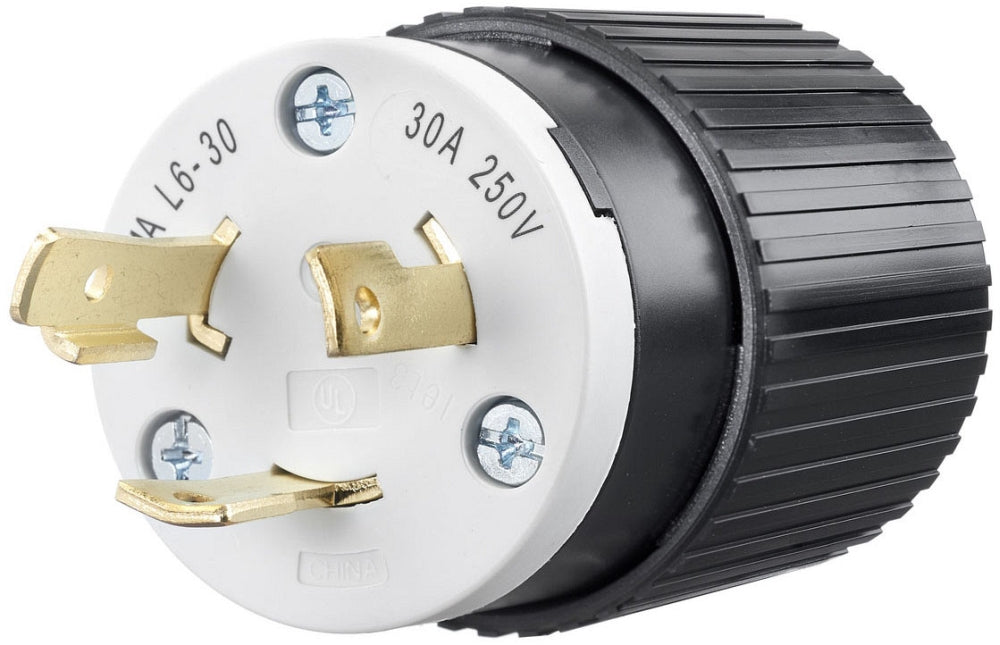

Bryant 70630NP Locking Device Plug 30A 250V L6-30P

Product Description

The BRYANT 70630NP locking plug provides a secure cable-to-plug connection for industrial and commercial power applications. This male plug is rated at 30A 250V, 2-Pole 3-Wire Grounding, and features a L6-30P NEMA configuration. It is suitable for environments where vibration or movement could disrupt connections.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

The BRYANT 70630NP locking plug ensures reliable power connections in demanding industrial and commercial settings.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70630NP
• Country of Origin: China

Technical Specifications

• Approval: UL, CSA
• Configuration: NEMA L6-30P
• Cord Size: 0.3 to 0.95 Inch
• Ground Type: Grounding
• Manufacturer Name: Bryant
• Material: Nylon
• Number Of Poles: 2
• Number Of Wires: 3
• Product UPC: 781786689527
• Type: Internal Cord Clamp, Triple Gripper, Male, Extra Heavy Duty, Standard
• Application: Extra Heavy Duty Industrial
• Catalog Number: 70630NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Triple Gripper Nylon Plug
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L6-30P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Brand: BRYANT
• Body Length: 2.13 in
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Maximum Cable Diameter: 0.95 in
• For Minimum Cable Diameter: 0.3 in
• Grounded: Grounded
• Horsepower Rating: 2 hp
• Housing Material: Composite
• IP Rating: IP20
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Wire Size: 18 AWG
• Number of Blades: 3
• Outside Diameter: 2.13 in
• Overall Length: 2.13 in
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: NEMA WD-1; NEMA WD-5; UL 498
• Voltage: 250 VAC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
