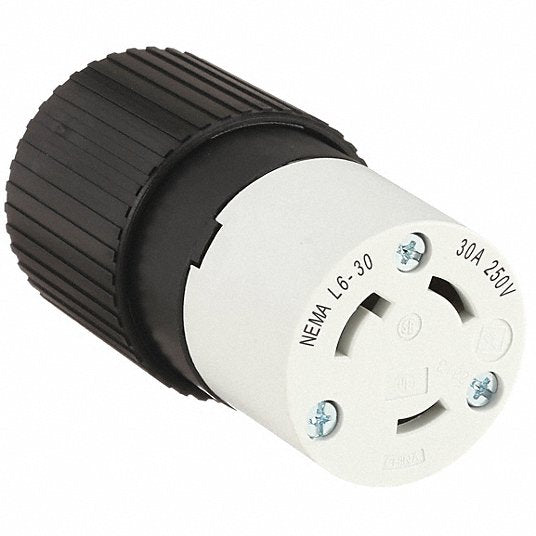

Bryant 70630NC Female Connector Body 30A 250V L6-30R

Product Description

The BRYANT 70630NC is an industrial female connector body. Rated at 30A and 250V, this 2-pole, 3-wire grounding connector features an L6-30R NEMA configuration and screw terminals. Its toughened nylon construction is impact and chemical resistant. Alignment keys on the face and body ensure easy assembly.

• Alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face
• Impact and chemical resistant nylon construction

Product Highlights

Industrial grade female connector body with secure cord retention for heavy-duty applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70630NC
• Country of Origin: United States

Technical Specifications

• Application: Heavy Duty Industrial
• Catalog Number: 70630NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75 , and the product is a connector, the weight should be around 0.3 lbs to 0.5 lbs. Therefore, the current weight is reasonable.
