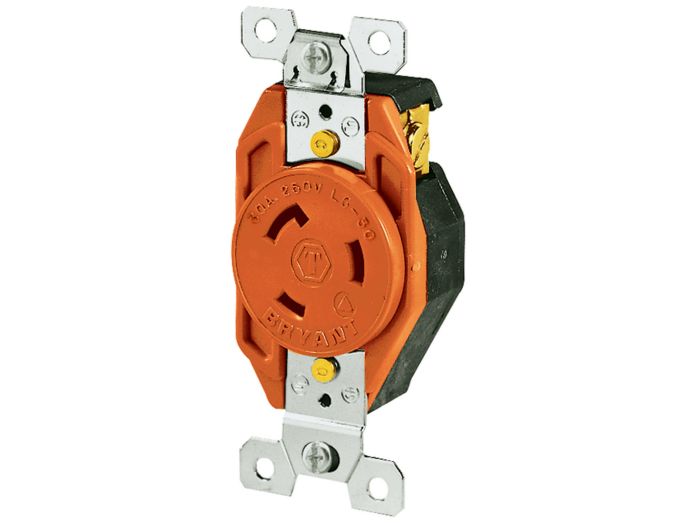

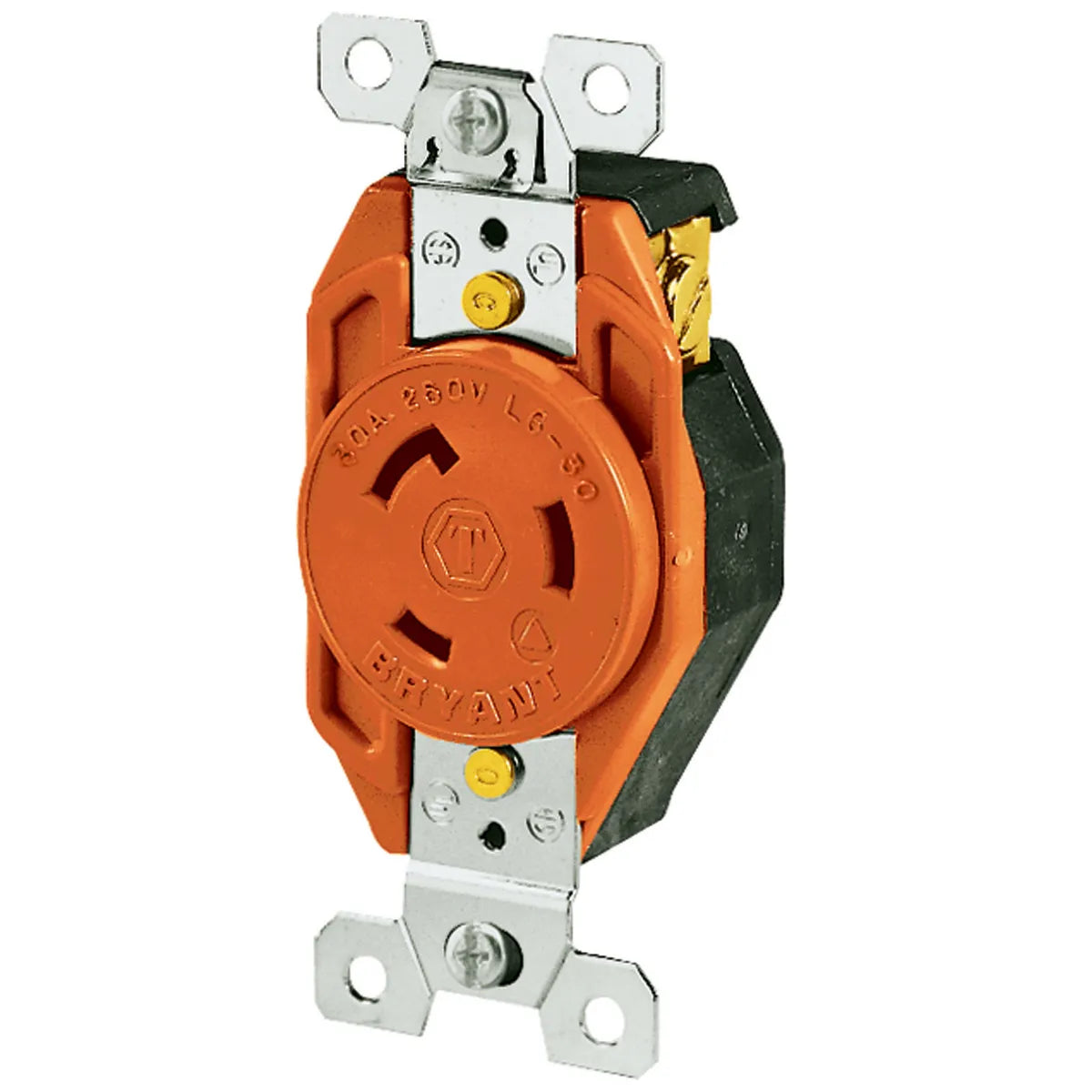

Bryant 70630IG Locking Devices Isolated Ground Industrial Flush Receptacle 30A 250V L6-30R

Product Description

The BRYANT 70630IG is an industrial-grade, isolated ground, flush receptacle. Rated for 30A and 250V, this 2-pole, 3-wire grounding receptacle limits electrical noise with dual grounding paths. It features a nylon deep face design and triple-wipe brass line contacts, ensuring reliable connectivity and performance in demanding environments.

• Limits electrical noise on the equipment grounding circuit
• Nylon deep face design
• Triple-wipe brass line contacts

Product Highlights

Industrial grade, isolated ground, flush receptacle with robust construction for demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70630IG
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70630IG
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Locking
• Style: Isolated Ground
• Type: Single Receptacle
• UPC: 781786689459
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Industry Standard(s): WR Rating
• Nema Rating: L6-30R
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: 70630IG
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: Yes
• Approvals: CSA, UL
• Number of Ports: 3
• Connector Style: 3-Port
• Number of Pins: 3
• Compatible Mounting Type: Flush
