Bryant 70630ER Flanged Receptacle 30A 250V L6-30R

Product Description

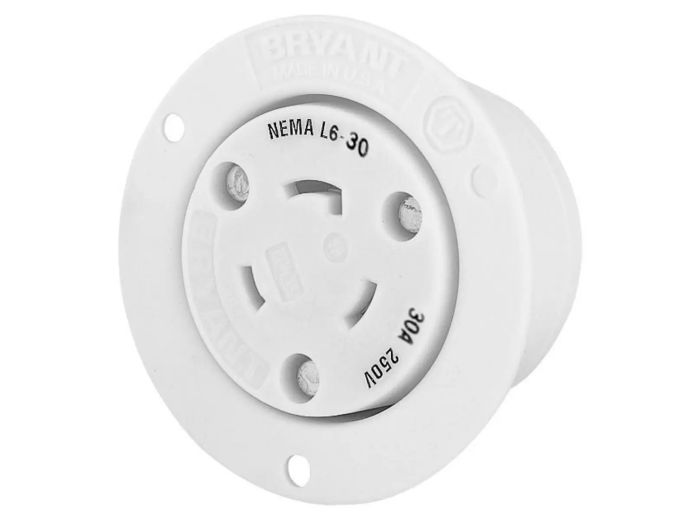

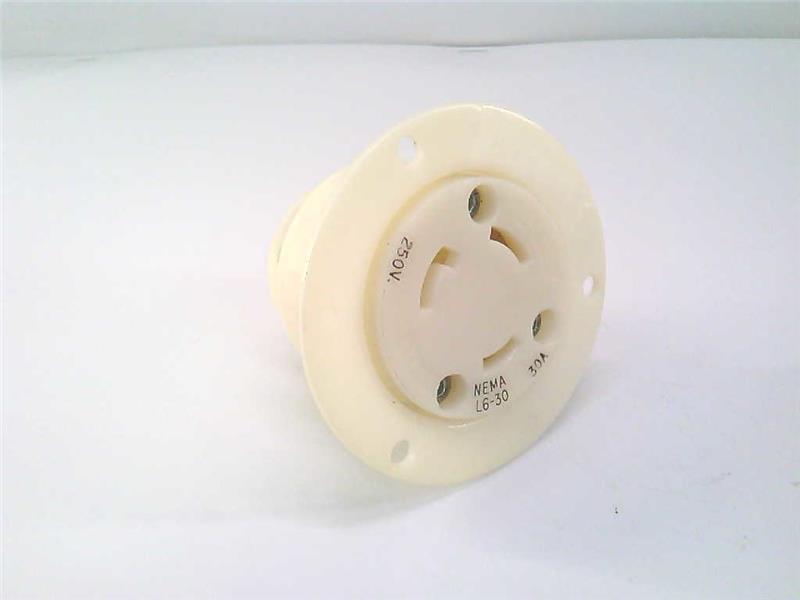

The BRYANT 70630ER is an industrial flanged receptacle, designed for heavy-duty applications. Rated at 30A and 250V, this 2-pole, 3-wire grounding receptacle features a L6-30R NEMA configuration and screw terminals. Constructed from impact-resistant thermoplastic, it is suitable for indoor dry environments unless protected by additional means.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial grade flanged receptacle with robust construction and easy installation, suitable for various industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70630ER
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70630ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786689404
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L6-30R
• Manufacturer Part Number: 70630ER
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Brand: Hubbell
• Part No.: 70630ER
• Category: Plug/Receptacle
