Bryant 70620NCCR locking connector Nm L6-20

Product Description

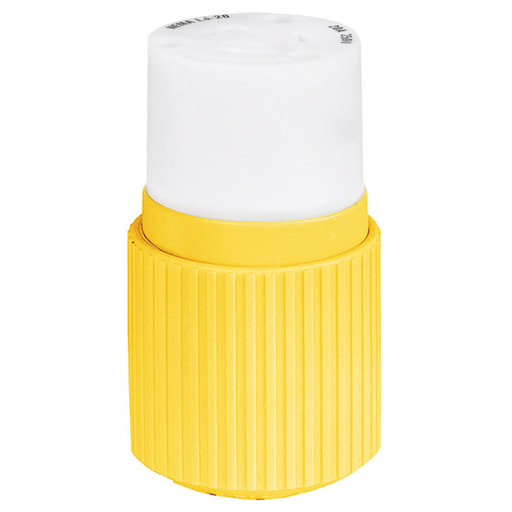

The Bryant 70620NCCR is a locking connector with NEMA configuration L6-20R. This marine-grade, female nylon connector body is corrosion resistant and features screw terminals for secure connections. Ideal for heavy-duty industrial applications requiring a reliable and durable connection.

• Corrosion Resistant
• Face and body feature alignment keys for easy assembly
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Marine grade locking connector with corrosion resistance and easy assembly features.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70620NCCR
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 70620NCCR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: L6-20R
• Watertight: No
• Special Properties: Corrosion Resistant
• Isolated Ground: No
• Approvals: CSA, UL
• Amperage Rating: 20 A
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• NEMA Rating: L6-20R
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 C with impact.
• Voltage Rating: 250 V
• Connectivity: Screw Terminals
• Number Of Poles: 2-Pole
• Style: Internal Cord Clamp
• Cord Diameter: 0.300-0.655 in
• Material: Composite
• Width: 2.300 in
• Length: 2.13 in
• Application: Heavy Duty Industrial
• Conductor Range: #14 AWG to #12 AWG
• Insulation: Insulated Body
• Number of Conductors: 3-Wire Grounding
• Type: Connector Body
• Voltage Rating Description: 250 V
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Description - Invoice: LKG CONN, CM, 20A 250V, L6-20R, YL
