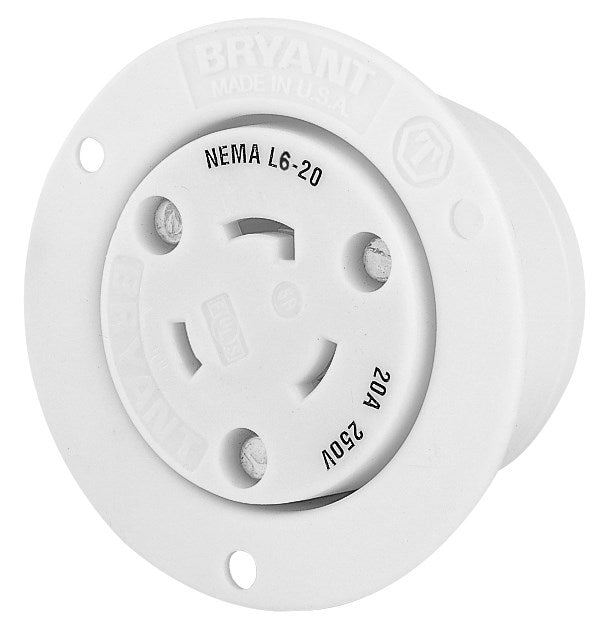

Bryant 70620ER Flanged Receptacle 20A 250V L6-20R

Product Description

The BRYANT 70620ER is an industrial flanged receptacle, designed for heavy-duty applications. Rated at 20A and 250V, this 2-pole, 3-wire grounding receptacle features a L6-20R NEMA configuration and screw terminals. Ideal for industrial settings requiring a robust and reliable power connection.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial grade flanged receptacle with robust construction and easy installation. Suitable for various industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70620ER
• Country of Origin: Unknown

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70620ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786689206
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L6-20R
• Standards - RoHS Compliance Status: CM
• Features: Panel Mount
• Number of Outlets: 1
• MPN: 70620ER
• Modified Item: No
• Brand: Bryant
• Gender: Female
• Mounting Style: Panel
• Manufacturer Part Number: 70620ER
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Locking Devices, Industrial, Flanged Receptacle, 20A 250V, 2-Pole 3-Wire Grounding, L6-20R, Screw Terminal, White
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Flanged Outlet
• NEMA Configuration: L6-20R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Wattage: 5,000 W
• Product Name: 70620ER
• Wire Connection Type: Screw Terminals
• Grounding: Grounded
• Housing Color: White
• Cover Type: No Cover
• Standards: Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
• Resistance Properties: Impact Resistant
• Flange Type: Flanged
• Mount Type: Screw Mounting
• Country of Origin: Puerto Rico
