Bryant 70615NP Locking Plug 15A 250V L6-15P

HUBBELL
Brand: HUBBELL
SKU: 70615NP
Availability: In Stock

Ships same day if ordered by 12 pm
$34.97
$34.97
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

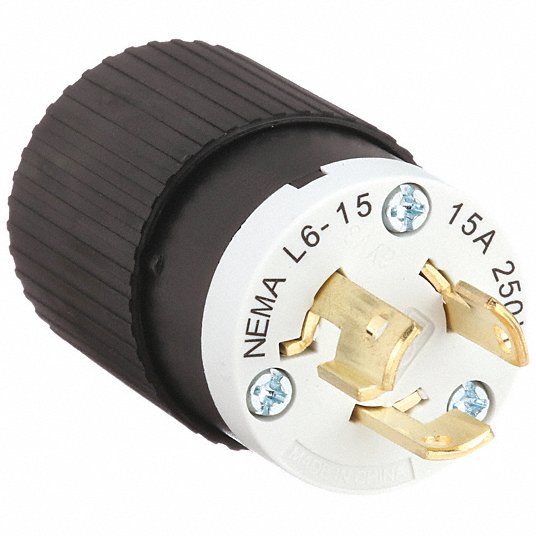

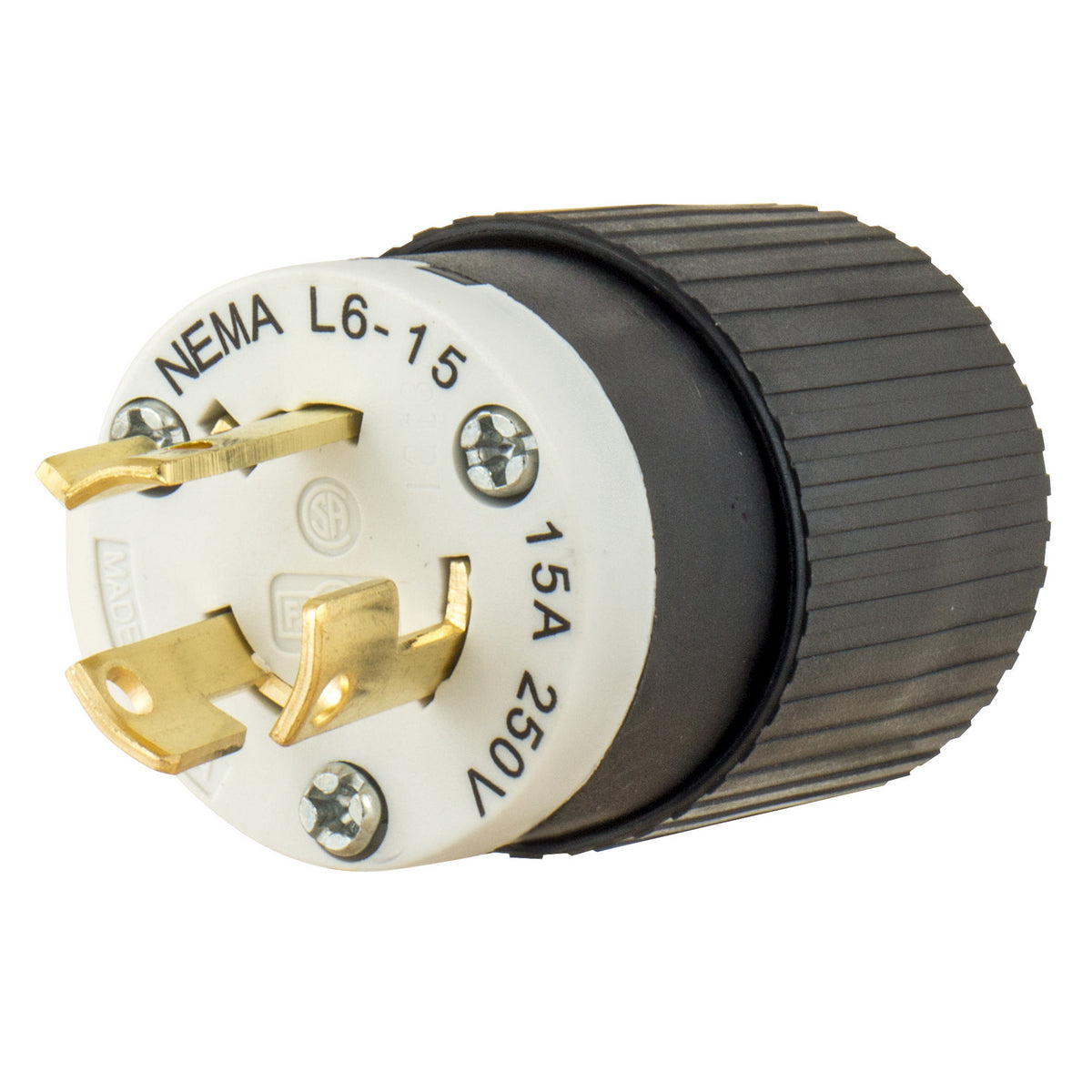

The BRYANT 70615NP locking plug is an industrial male plug designed for secure cable-to-plug connections in environments where vibration or movement could disrupt connections. Rated at 15A and 250V, it features a screw terminal and a L6-15P NEMA configuration. It is suitable for plant floors, manufacturing facilities, and mills.

  • Hand grip features wide-rib, non-slip design
  • Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
  • Captive, combination Slot/Phillips assembly screws

Product Highlights

Industrial grade locking plug with a non-slip grip and secure cord retention. Ideal for industrial and commercial power applications.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 70615NP
  • Country of Origin: China
Technical Specifications
Manufacturer
Bryant Electric
Manufacturer #
70615NP
Parts Town #
BYNT70615NP
Replaced by PT #
CRR70615NP
Units
Each
Catalog Number
70615NP
Item Type
15A Triple Gripper Nylon Plug
Style
Internal Cord Clamp
Type
Plugs
UPC
781786666054
Dimensions
1.53 in x 1.53 in x 2.18 in
Height
2.18 in
Length
1.53 in
Width
1.53 in
Current Amperage Description
15 Amp
Voltage Rating
250V AC
Voltage Rating Description
250 V
Number Of Poles
2-Pole
Number Of Wires
3-Wire
Wire Size
#14 AWG to #10 AWG
Nema Rating
L6-15P
Standards - RoHS Compliance Status
CM
Carton Quantity
10
Pallet Quantity
5400
Family Series
Bryant Electric Plugs & Receptacles
Description
Locking Devices, Industrial, Male Plug, 15A 250V, 2-Pole 3-Wire Grounding, L6-15P, Screw Terminal, Black and White
Current Rating
15 A
Number of Poles
2
Number of Wires
3
Voltage
250 VAC
Body Type
Straight
Connection Type
Plug
NEMA Configuration
L6-15P
Watertight
No
Isolated Ground
No
Color
Black, White
Approvals
CSA, UL
Net Weight
0.115 lbs
Gross Weight
0.1 lbs
Brand
BRYANT
Body Length
1.53 in
Compatible Series
Twist Lock
Connection Orientation
Straight
Face Diameter
1.38 in
For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.3 in
Grounding
Grounded
Horsepower Rating
1/2 hp
Housing Color
Black; White
Housing Material
Nylon
IP Rating
IP20
Maximum Wire Size
10 AWG
Midget Locking
No
Minimum Wire Size
14 AWG
NEMA Plug Configuration
L6-15P
Number of Blades
3
Outside Diameter
1.53 in
Overall Length
1.53 in
Phase
Single
Power Indicating Light
No
Resistance Properties
Chemical Resistant; Impact Resistant
Shrouded
No
Standards
NEMA WD-1; NEMA WD-5; UL 498
Wire Connection Type
Screw Terminals
Wiring Style
Standard
UNSPSC
39121402
MPN
70615NP
Cord Diameter
0.3 to 0.655 in
Country of Origin
CN
Currency
USD
Grade
Industrial
Gross Weight Per Pack
0.1000 lb
Gross Weight per Pack Metric
0.04
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536694020
Height [Metric]
5.8420 cm
Length [Metric]
3.5560 cm
Material
Composite
Replaced Catalog Number
70615NPC
Returnable
Y
Size
1.53 in x 1.53 in x 2.18 in
Temperature Rating
-40 to 60 °C
Terminal Type
Screw
UPC 11
78178666605
UPC 12
78178666605
Width [Metric]
3.5560 cm
Amperage Rating
15 A
