Bryant 70615NC Female Connector Body 15A 250V L6-15R

HUBBELL
Brand: HUBBELL
SKU: 70615NC
Availability: In Stock

Ships same day if ordered by 12 pm
$55.51
$55.51
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

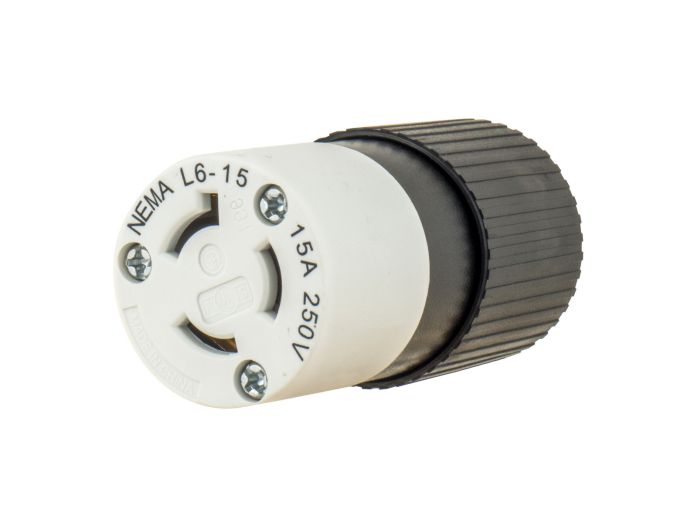

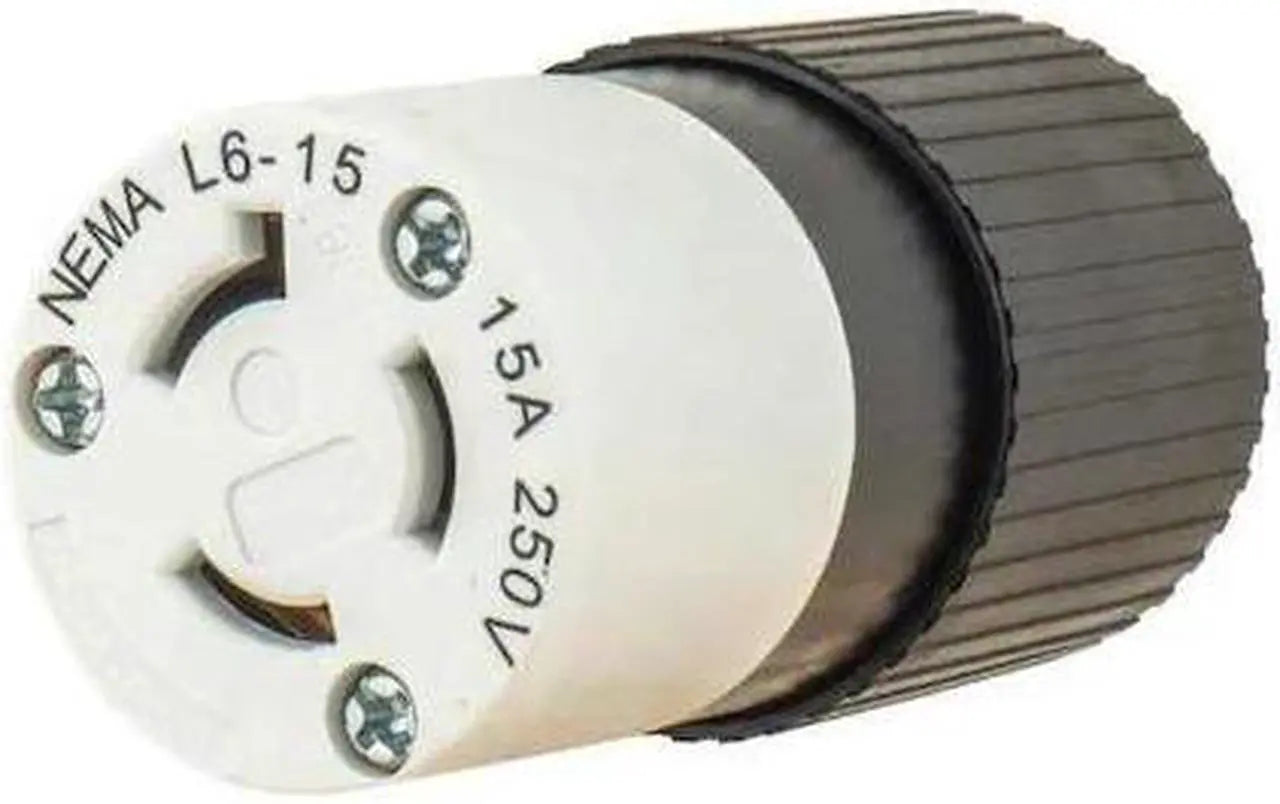

The BRYANT 70615NC is an industrial female connector body, designed for locking devices. Rated at 15A and 250V, it features a 2-pole, 3-wire grounding configuration and L6-15R NEMA rating. Constructed from impact and chemical-resistant nylon, it ensures durability and secure cord retention with its internal Triple Gripper design.

  • Features alignment keys for easy assembly.
  • Amperage, voltage and NEMA configuration imprinted on face for easy identification.
  • Impact and chemical resistant, toughened nylon construction.

Product Highlights

Industrial-grade connector body with robust construction and secure cord grip, suitable for heavy-duty applications.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 70615NC
  • Country of Origin: CN
Technical Specifications
Application
Heavy Duty Industrial
Catalog Number
70615NC
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Yes
Insulation
Insulated Body
Item Type
15A Triple Gripper Nylon Connector
Material
Composite
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Bryant
Style
Internal Cord Clamp
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type
Female Grounding Heavy Duty Insulated Standard
UPC
781786703902
Dimensions
1.53 in x 1.53 in x 2.78 in
Height
2.78 in
Length
1.53 in
Width
1.53 in
Amperage Rating
15 A
Connectivity
Screw Terminals
Current Amperage Description
15 Amp
Current Rating
15 A
Voltage Rating
250 V
Voltage Rating Description
250 V
Conductor Range
#14 AWG to #12 AWG
Number of Conductors
3-Wire Grounding
Number Of Poles
2-Pole
Number Of Wires
3-Wire
Wire Size
#14 AWG to #10 AWG
Nema Rating
L6-15R
Standards - RoHS Compliance Status
CM
Brand
Hubbell, Bryant
MPN
70615NC
Maximum Input Current
11-15 A
Output Voltage
250 V
Manufacturer Part Number
70615NC
Manufacturer
Bryant Electric
Family Series
Bryant Electric Plugs & Receptacles
Voltage
250 VAC
Body Type
Straight
Connection Type
Connector
NEMA Configuration
L6-15R
Watertight
No
Isolated Ground
No
Approvals
CSA, UL
Net Weight
0.135 lbs
Gross Weight
0.15 lbs
Cord Diameter
0.3 to 0.655 in
Country of Origin
CN
Grade
Industrial
Manufacturer Name
Hubbell
Terminal Type
Screw
Color Mapping
Black/White
First Listed on Newegg
May 18, 2018
Housing Material
Composite
IP Rating
IP20
Phase
Single
Polarized
Yes
Resistance Properties
Chemical Resistant, Impact Resistant
Shrouded
No
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Cap Type
No Cap or Cover
Grounding
Grounded
