Bryant 70615FR Flush Receptacle 15A 250V L6-15R

Product Description

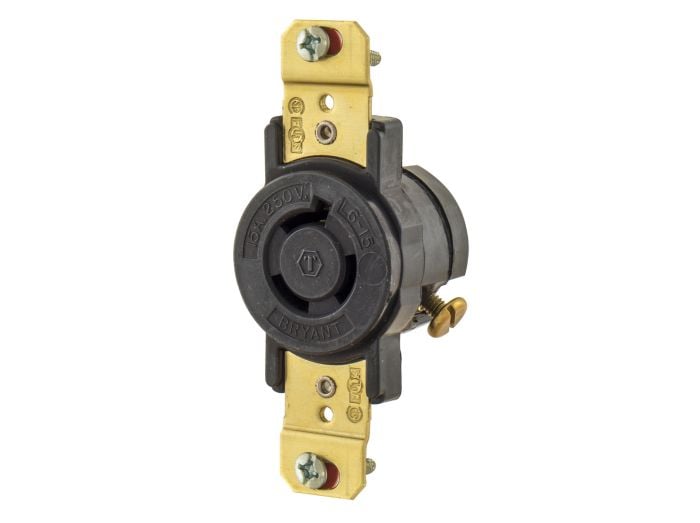

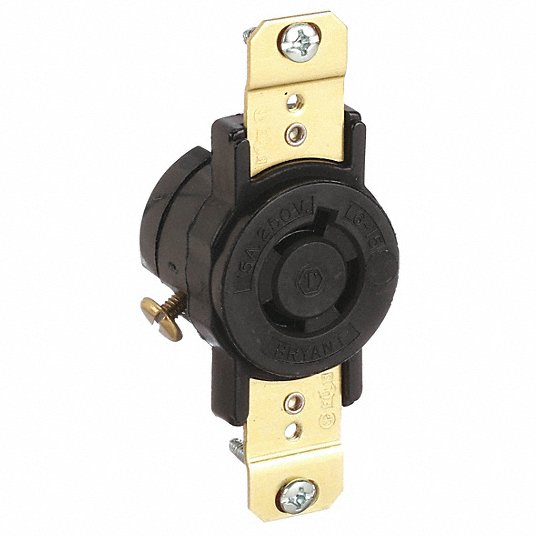

The BRYANT 70615FR is an industrial-grade flush receptacle, designed for heavy-duty applications. Rated at 15A and 250V, this 2-pole, 3-wire grounding receptacle features a L6-15R NEMA configuration and screw terminals. Its reinforced thermoplastic construction ensures durability in demanding environments.

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• All terminals are back and side wired
• Brass mounting strap with stainless steel grounding clip

Product Highlights

Ideal for industrial settings, this receptacle provides a secure and reliable power connection for various equipment.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70615FR
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70615FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Single Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• UPC: 781786703551
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single
• Voltage Rating: 250 V
• Voltage Rating Description: 250V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L6-15R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• Country of Origin: United States
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Contact Material: Brass
• Flange Material: Composite
• Flange Type: Non-Flanged
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.425 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 1-1/2 hp
• Housing Color: Black
• Housing Material: Composite
• Hub Type: Dead End
• IP Rating: Not Rated
• Includes: Mounting Strap
• Includes Mounting Hardware: Yes
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Wire Size: 14 AWG
• Mount Type: Flush
• NEMA Configuration: L6-15
• NEMA Receptacle Configuration: L6-15R
• Number of Outlets: 1
• Polarized: Yes
• Resistance Properties: Moisture Resistant
• Shrouded: No
• Standards: UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121406
