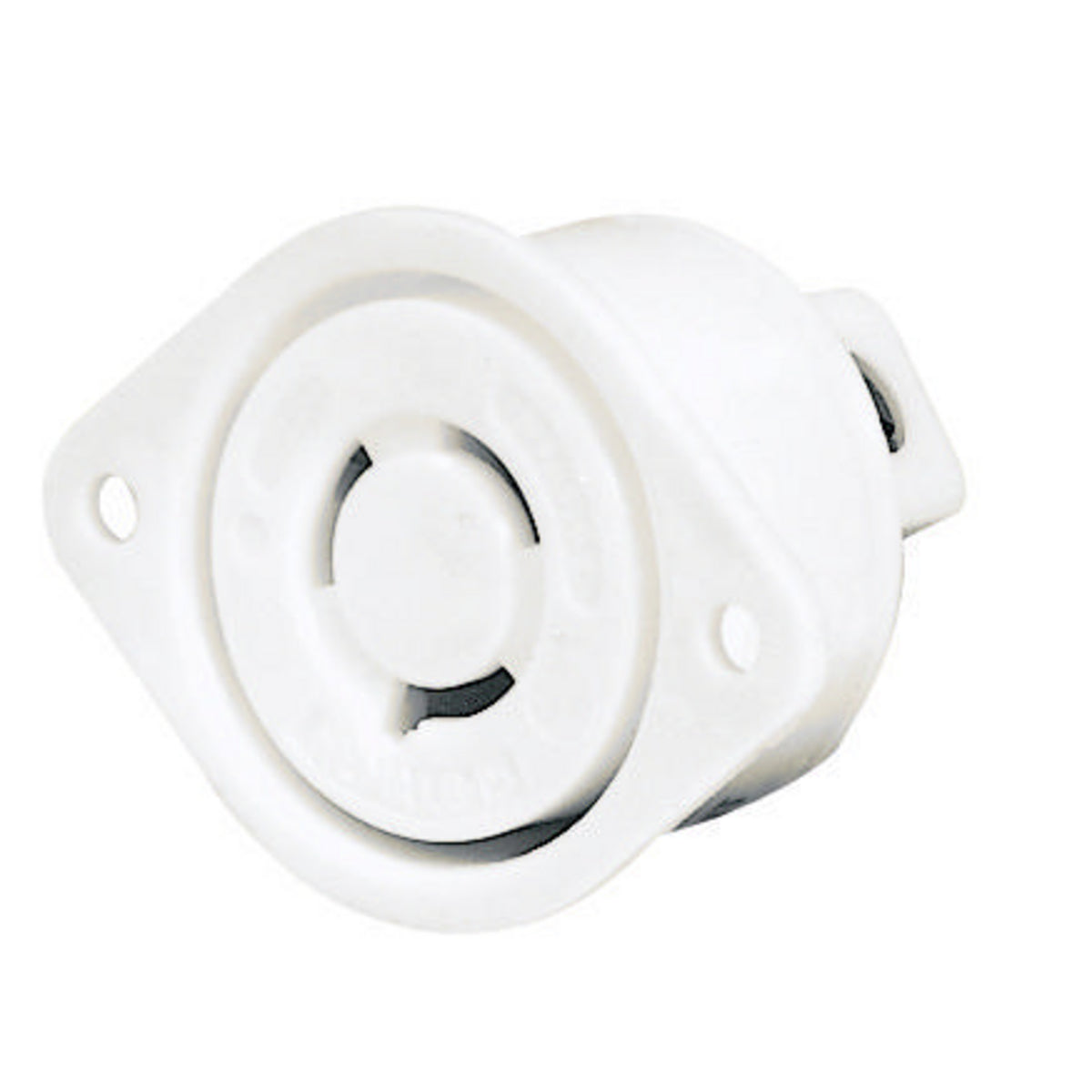

Bryant 70615ER Flanged Receptacle 15A 250V L6-15R

Product Description

The BRYANT 70615ER is an industrial flanged receptacle rated at 15A and 250V, designed for 2-pole, 3-wire grounding with an L6-15R NEMA rating and screw terminals. Constructed from reinforced thermoplastic with single-piece, all-brass contacts. All terminals are back and side wired. It is suitable for extra heavy-duty industrial applications.

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• All terminals are back and side wired

Product Highlights

Industrial grade flanged receptacle with robust construction and reliable connectivity for demanding applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70615ER
• Country of Origin: Puerto Rico

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70615ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786703957
• Dimensions: 1.84 in x 2.50 in x 1.68 in
• Display Size: Standard Sized Product
• Height: 1.68 in
• Length: 1.84 in
• Width: 2.5 in
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L6-15R
• Standards - RoHS Compliance Status: CM
• Carton Quantity: 10
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Net Weight: 0.105 lbs
• Gross Weight: 0.1 lbs
• Mount Type: Flush
• Wire Connection Type: Screw Terminals
• Grounding: Grounded
• Cover Type: No Cover
• Standards: Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
• Flange Type: Flanged
• Wiring Style: Equipment Base
• ARRA Compliant: C
• Buy American Compliant: C
• Cord Diameter: 0.3 to 0.655 in
• Country of Origin: PR
• Currency: USD
• Grade: Industrial/Specification
• Gross Weight Per Pack: 0.1000 lb
• Gross Weight per Pack Metric: 0.04
• Gross Weight UOM Metric: kg
• Harmonization Tariff Schedule Code: 8536694020
• Temperature Rating: -40 to 60 0.100 C
• Terminal Name: 70615ER
• UNSPSC: 39121406
• UPC 11: 78178670395
• UPC 12: 78178670395
• Wattage: 3,750 W
• Stock Status: NONSTOCK
• Manufacturer Name: Hubbell
• MPN: 70615ER
