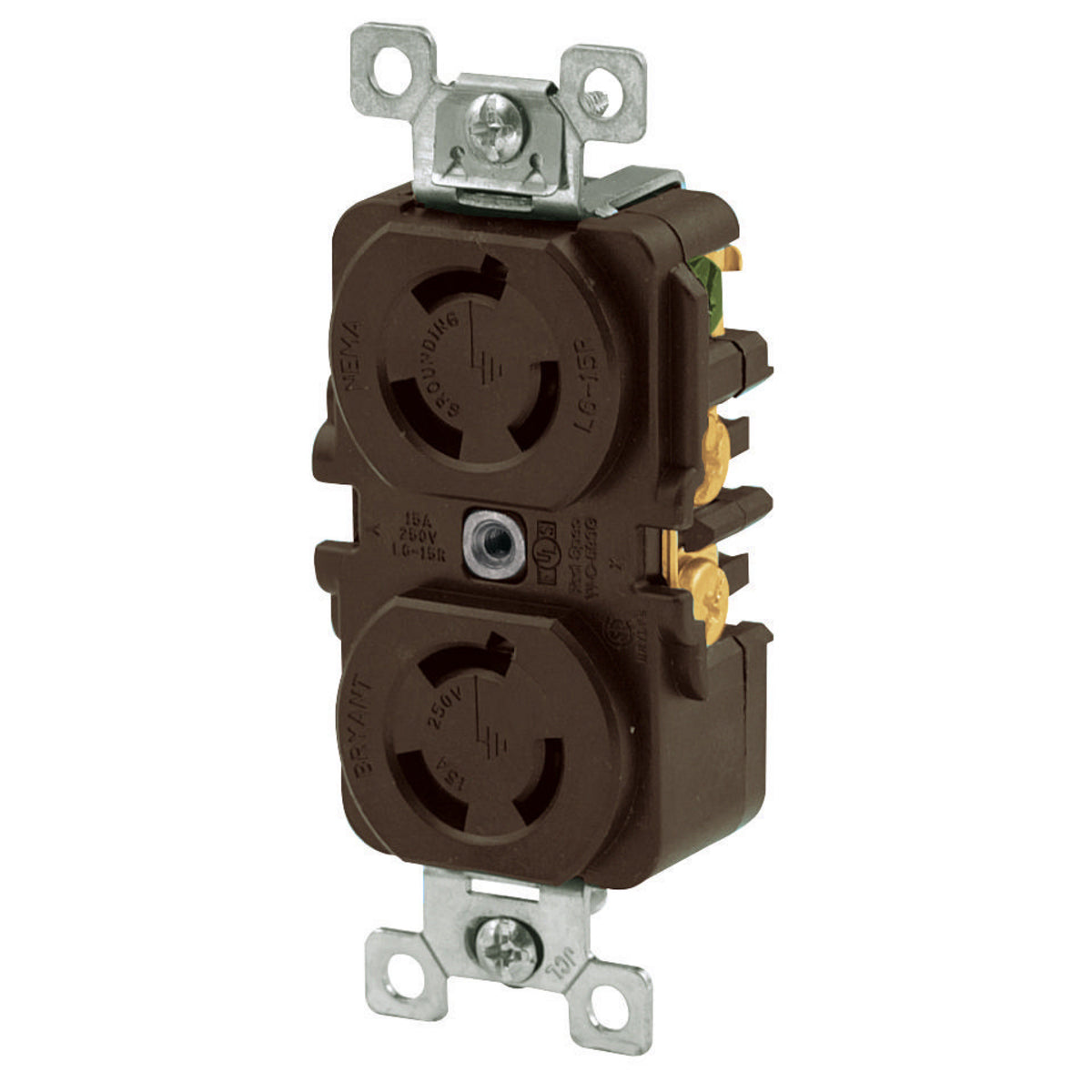

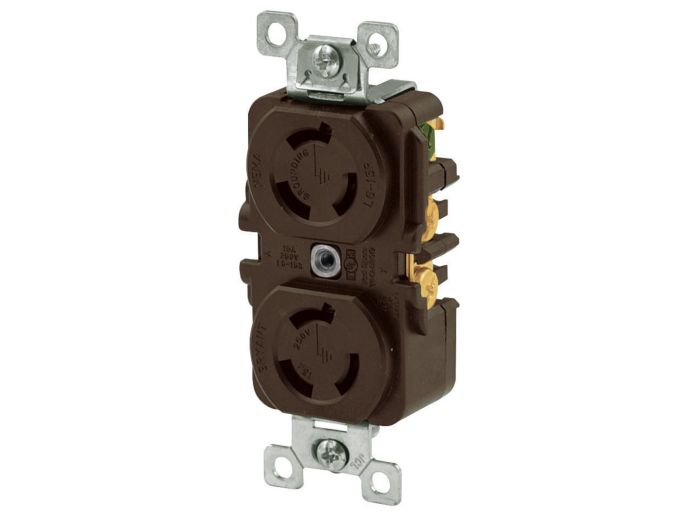

Bryant 70615DR Duplex Receptacle 15A 250V L6-15R

Product Description

The BRYANT 70615DR is an industrial duplex receptacle with a 15A and 250V rating, designed for heavy-duty applications. It features reinforced thermoplastic construction and single-piece, all-brass contacts. This receptacle is suitable for indoor dry environments when protected by additional means.

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• Single point break-off tabs

Product Highlights

Industrial-grade duplex receptacle with robust construction for demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70615DR

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70615DR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Duplex Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Duplex Receptacle
• Type: 1-Phase Duplex Extra Heavy Duty Grounding Standard
• UPC: 781786703506
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L6-15R
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: 70615DR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Locking Devices, Industrial, Duplex Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, L6-15R, Screw Terminal, Brown
• Voltage: 250 VAC
• Body Type: Straight
• Connection Type: Duplex Receptacle
• Watertight: No
• Isolated Ground: No
• Color: Brown
• Approvals: CSA, UL
• Grade: Industrial/Specification
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Screw
• Mounting: Screw Mount
• Special Features: Standard Product
