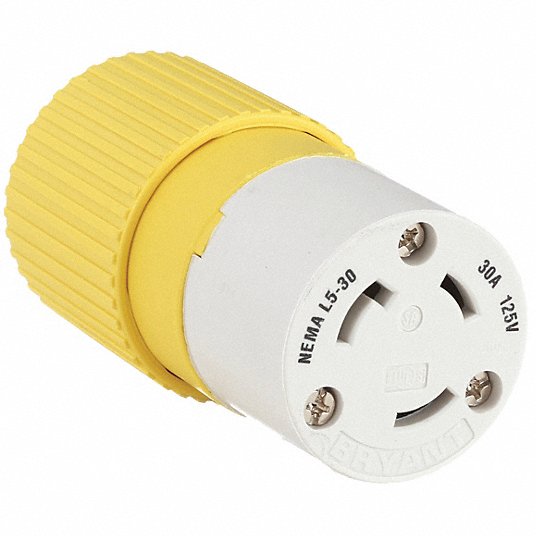

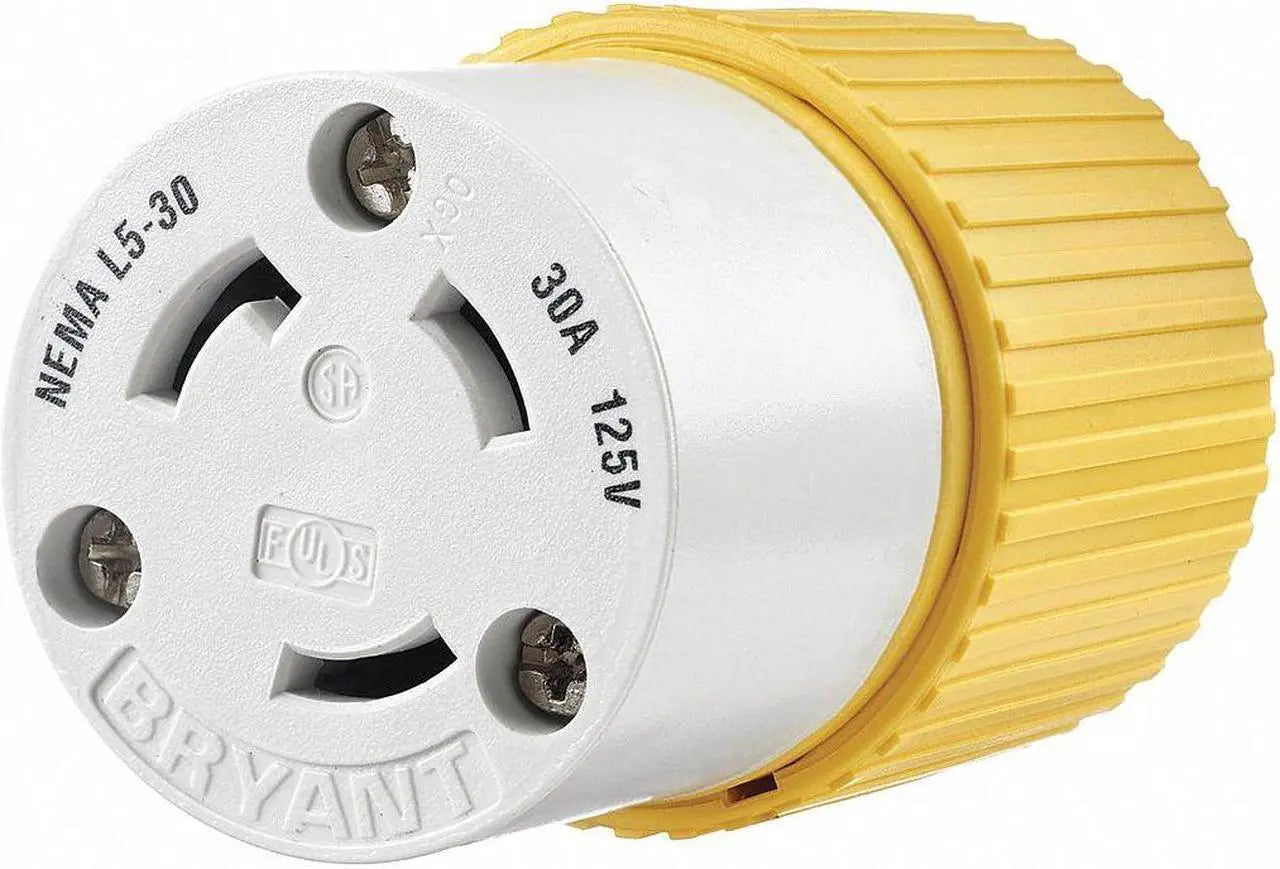

Bryant 70530NCCR Locking Connector, 30A 125V, L5-30R

Product Description

The BRYANT 70530NCCR is a locking connector designed for heavy-duty industrial applications. This marine-grade female connector body supports 30A and 125V with a 2-pole, 3-wire grounding configuration. Constructed with corrosion-resistant materials and screw terminals, it ensures a secure and durable connection for power supply to equipment.

• Nickel-plated copper-alloy metallic components
• Molded of impact/chemical resistant high-visibility yellow nylon
• Stainless steel screws

Product Highlights

Durable locking connector with corrosion resistance, ideal for industrial use.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70530NCCR
• Country of Origin: USA

Technical Specifications

• Catalog Number: 70530NCCR
• Application: Heavy Duty Industrial
• Color: Yellow, White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Triple Gripper Nylon Connector
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Disconnect Terminal & Tab Electrical Connectors
• UPC: 781786688780
• Dimensions: 2.13 in x 2.13 in x 3.90 in
• Height: 3.9 in
• Length: 2.13 in
• Width: 2.13 in
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Conductor Range: #12 AWG to #8 AWG
• Number of Conductors: 3-Wire Grounding
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L5-30R
• Brand: BRYANT
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: White; Yellow
• Housing Material: Composite
• IP Rating: IP20
• Maximum Operating Temperature: 75 °C
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Operating Temperature: -40 °F
• Minimum Wire Size: 18 AWG
• NEMA Configuration: L5-30
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: L5-30R
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Corrosion Resistant
• Shrouded: No
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Color Mapping: Yellow/White
