Bryant 70530NC Lkg Conn, 30A 125V, L5-

Product Description

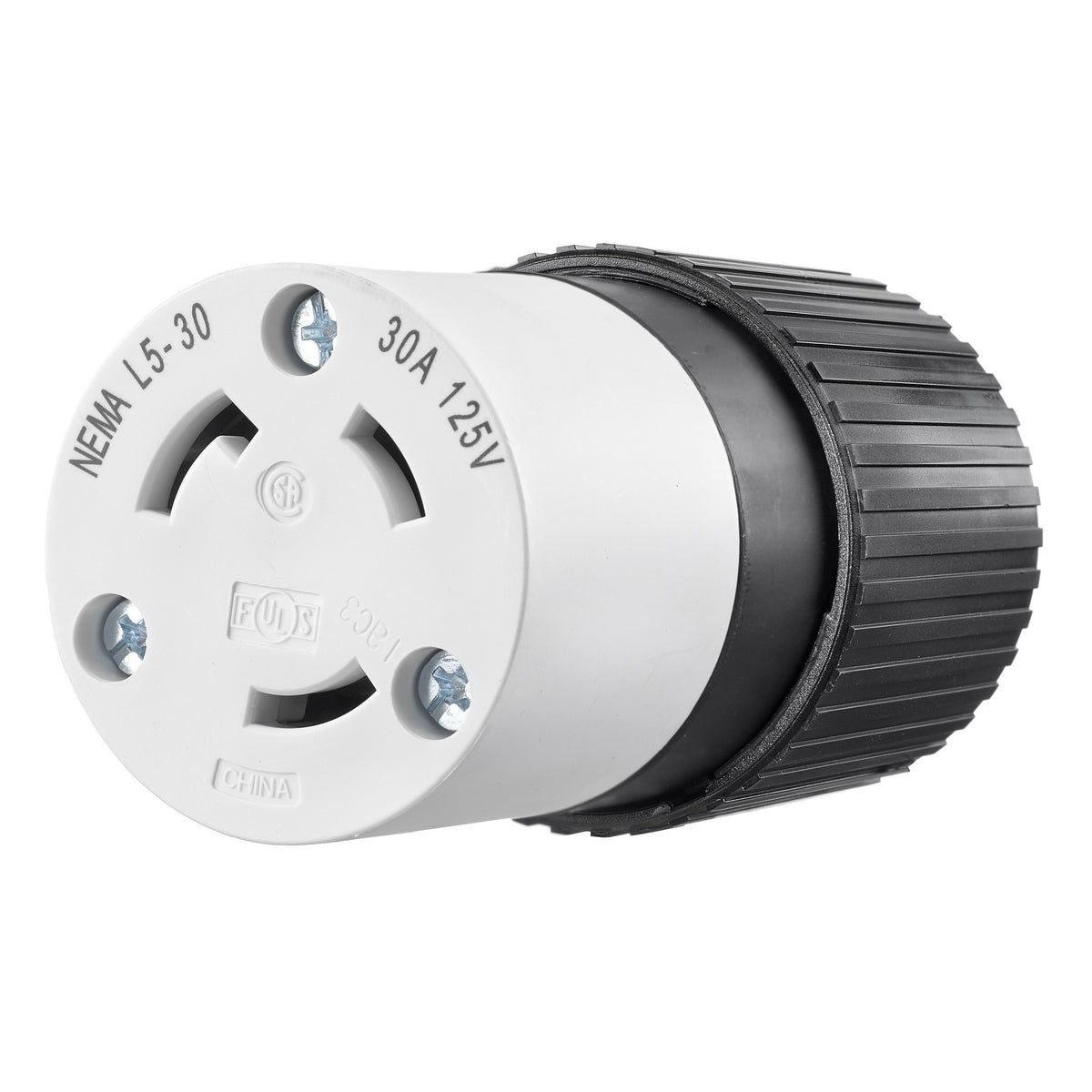

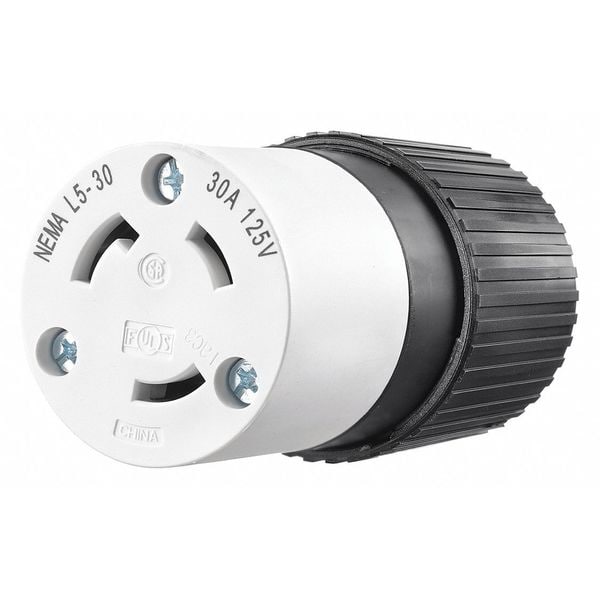

The BRYANT 70530NC is an industrial-grade female connector body designed for locking devices. Rated at 30A and 125V, this 2-pole, 3-wire grounding connector features a L5-30P NEMA configuration and screw terminals. Constructed from impact and chemical-resistant nylon, it ensures secure cord retention with its internal self-centering Triple Gripper cord grip.

• Features alignment keys for easy assembly
• Amperage, voltage and NEMA configuration imprinted on face for easy identification
• Impact/chemical resistant, toughened nylon construction

Product Highlights

Industrial-grade locking connector with secure cord grip and easy assembly features.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70530NC
• Country of Origin: China

Technical Specifications

• Amperage: 30 Amp
• Applications: Heavy Duty Industrial
• Conductor Size: 12-8 AWG
• Current: 30 Amp
• Grounding: Grounded
• Material: Composite
• Mounting Type: Cord
• NEMA: L5-30R
• Number of Conductors: 3-Wire Grounding
• Number of Poles: 2
• Number of Wires: 3
• Size: Standard
• Style: Internal Cord Clamp
• Tc Connection: Screw Terminals
• Temperature Rating: -25 to 75 degrees C
• Type: Standard
• Voltage: 125 Volt
• Wire Size: 18-8 AWG
• Brand: Bryant
• Sub Brand: Tech-Spec, Triple Gripper
• Environmental Conditions: Indoor Dry unless protected by additional means
• Manufacturer Part Number: 70530NC
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 30 A
• Voltage Rating: 125V AC
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: L5-30R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Phase: Single
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• Connection Orientation: Straight
• Shrouded: No
• Housing Color: Black, White
• Cap Type: No Cap
• IP Rating: IP20
• Standards: CSA Certified, UL Listed
• Resistance Properties: Chemical Resistant, Impact Resistant
• Grade: Industrial
• Material - Mounting Hardware: Cord Mounted
• Application: Heavy Duty Industrial
• Insulation: Insulated Body
• Antimicrobial: No
• For Maximum Cable Diameter: 0.95 in
• For Minimum Cable Diameter: 0.30 in
• Cord Size: 0.300 in to 0.950 in
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 18 AWG
• Cord Diameter: 0.3 to 0.95 in
• Terminal Type: Screw
• Dimensions: 2.13 in L x 2.13 in W x 3.9 in H
• Manufacturer Name: Hubbell
