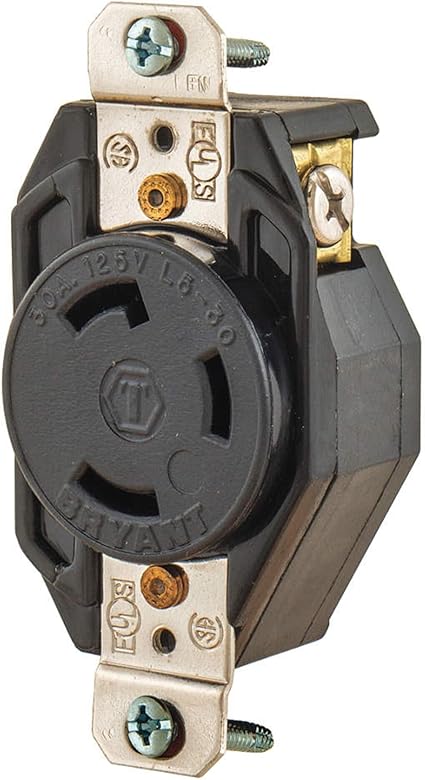

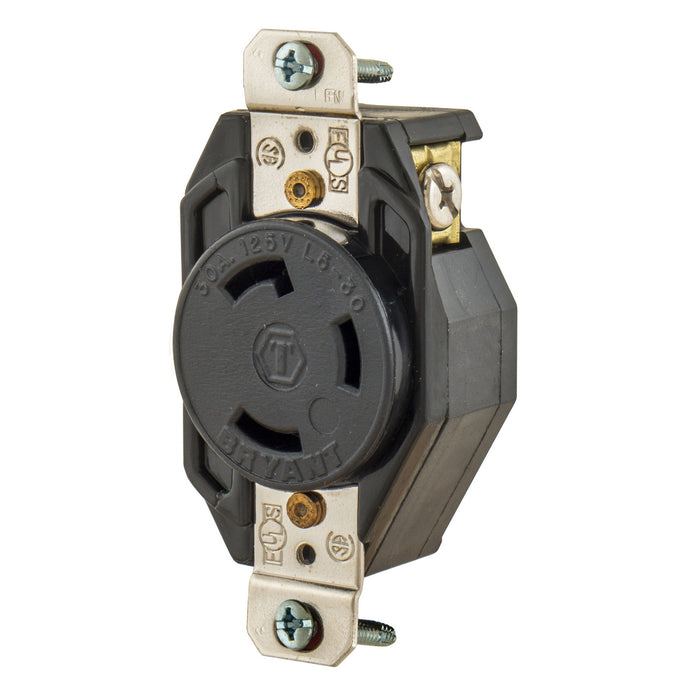

Bryant 70530FR Locking Devices Industrial Flush Receptacle 30A 125V L5-30R

Product Description

The BRYANT 70530FR is an industrial specification grade locking receptacle. Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors. Heavy duty mounting straps are nickel-plated to resist corrosion, and the wide width design assures secure assembly. NEMA rating and configuration are molded into face for easy identification.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

This locking receptacle is ideal for industrial applications requiring a secure and reliable power connection. It features a robust design and is built to withstand demanding environments.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70530FR
• Country of Origin: US

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70530FR
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Single Nylon Receptacle
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Replacement Part
• Type: Locking Receptacle
• UPC: 781786688735
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Industry Standard(s): WR Rating
• Standards - RoHS Compliance Status: CM
• NEMA: L5-30R
• Voltage: 125V
• Amperage: 30A
• Poles: 2-pole
• Wires: 3-wire
• Grounding: Grounding
• Grade: Industrial Grade
• Brand: Bryant Electric
• Specification Met: NEMA
• Item Type Name: Electrical Receptacle, Electrical Outlet
• Material: Copper
