Bryant 70530ER Flanged Receptacle 30A 125V L5-30R

Product Description

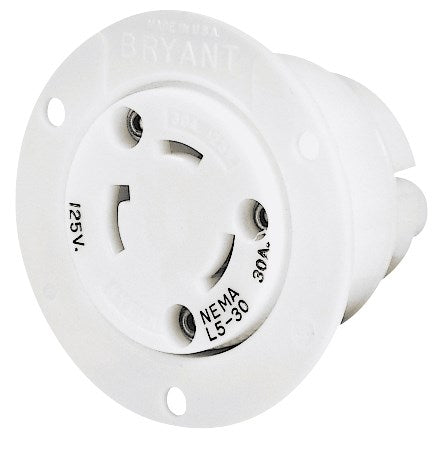

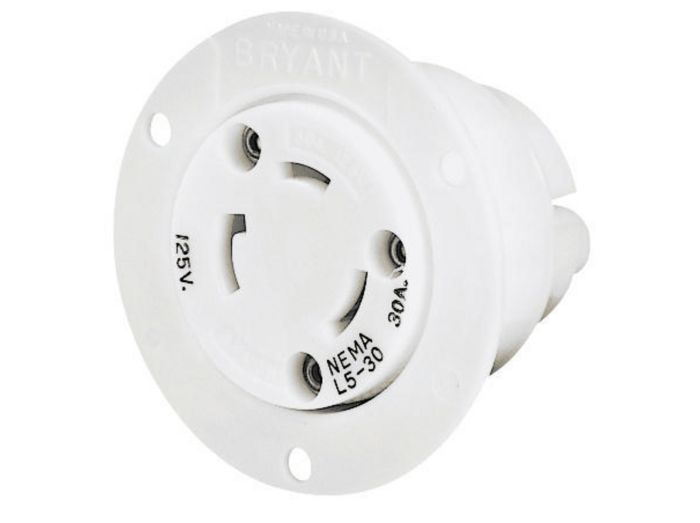

The BRYANT 70530ER is an industrial-grade flanged receptacle, designed for robust performance. Rated at 30A and 125V, this 2-pole, 3-wire grounding receptacle features a L5-30R NEMA configuration and screw terminals. Ideal for heavy-duty applications requiring a reliable locking connection.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Durable flanged receptacle with secure locking mechanism for industrial applications. Easy to install with backwired terminations.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70530ER
• Country of Origin: US

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70530ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786688704
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L5-30R
• Manufacturer Part Number: 70530ER
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Wattage: 3,750 W
• Brand ID: BRYANT
• Description - Long: Locking Devices, Industrial, Flanged Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, White
• Description - Short: Locking Devices, Industrial, Flanged Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, White
• FV_Current/Amperage Rating Description: 30 Amp
• FV_Voltage Rating Description: 125V
• Product Name: 70530ER
