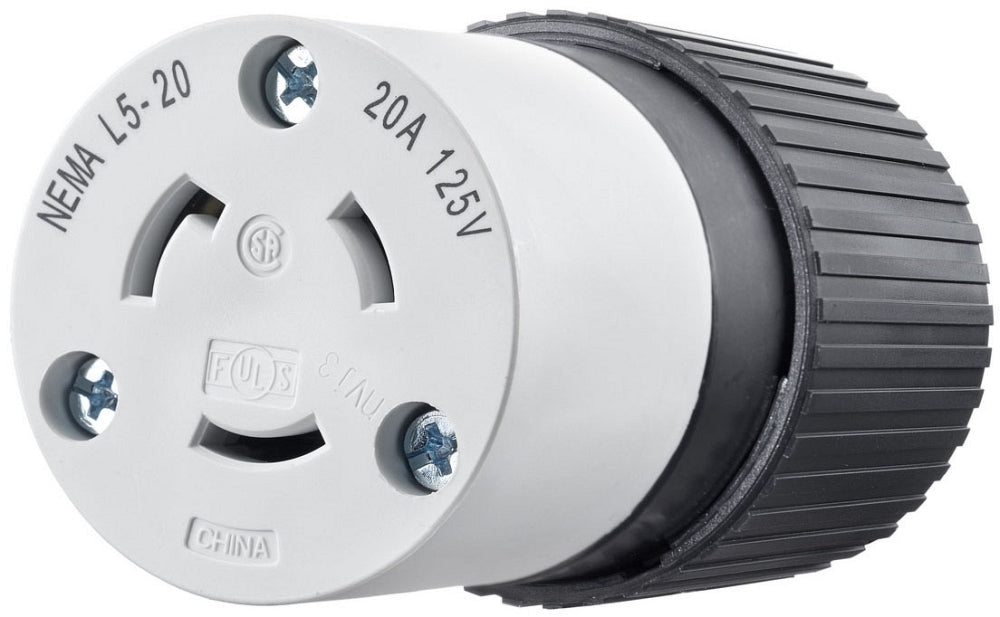

Bryant 70520NC Locking Device Connector 20A 125V NEMA L5-20R

Product Description

The Bryant 70520NC is a locking device connector designed for reliable electrical connections. This connector is rated for 20 Amps and 125 Volts and conforms to the NEMA L5-20R standard. The black and white design facilitates easy identification in various applications.

• UL and CSA approved for safety.
• Easy assembly with alignment keys.
• Secure cord retention with triple gripper design.

Product Highlights

This locking connector is ideal for use in power supply systems where a secure connection is necessary. It is built from toughened nylon which provides durability in demanding environments.

Product Information

Standard Information

• Manufacturer: Bryant
• UPC: 781786688599

Technical Specifications

• Approval: UL, CSA
• Color: Black and White
• Configuration: NEMA L5-20R
• Constructional Feature: Impact/Chemical Resistant
• Cord Size: 0.3 to 0.95 Inch
• Ground Type: Grounding
• Material: Toughened Nylon
• Number of Poles: 2
• Number of Wires: 3
• PDW ID: ECL8209
• Product Type: Insulated, Internal Cord Clamp, Triple Gripper, Heavy Duty
