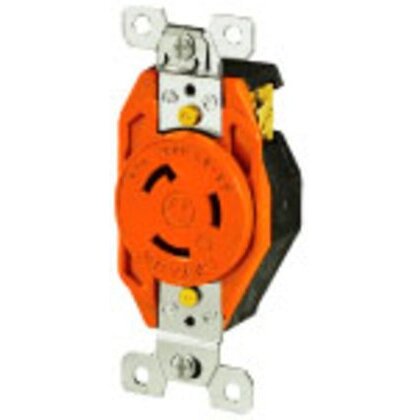

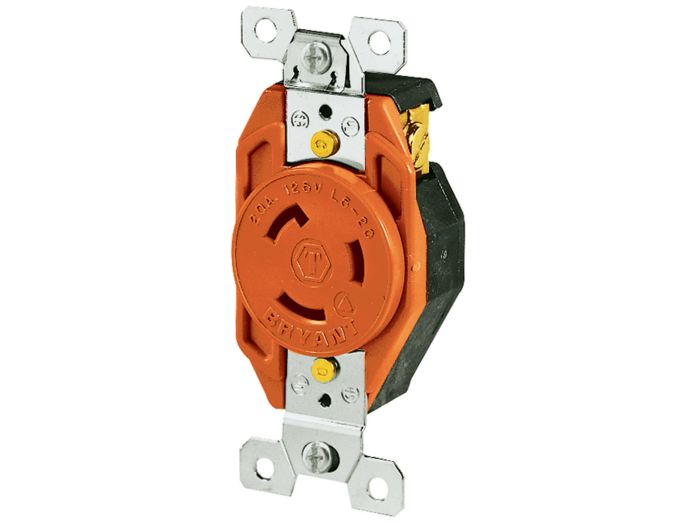

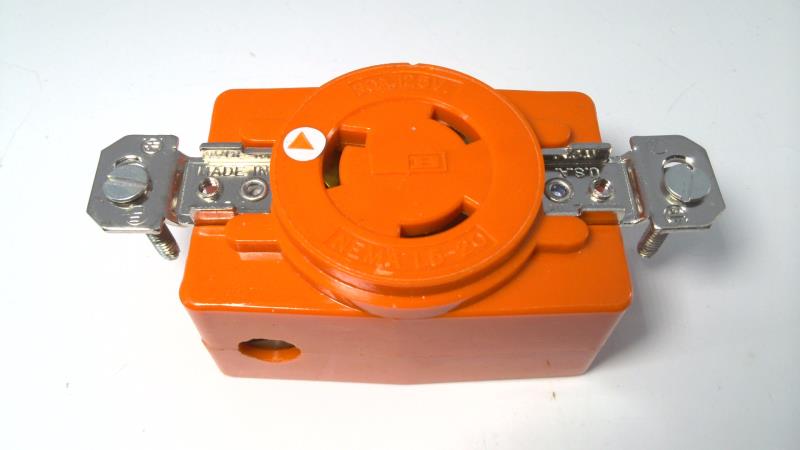

Bryant 70520IG Locking Devices, Isolated Ground Industrial, Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R

Product Description

The BRYANT 70520IG is a nylon flush receptacle designed for industrial use. Rated at 20A and 125V, this 2-pole, 3-wire grounding receptacle features an L5-20R NEMA configuration and screw terminals. It limits electrical noise on the equipment grounding circuit by providing two grounding paths for the installation.

• Limits electrical noise on the equipment grounding circuit by providing two grounding paths for the installation
• Nylon deep face design
• Triple-wipe brass line contacts

Product Highlights

Ideal for industrial applications requiring isolated grounding, this receptacle ensures a secure and noise-free electrical connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70520IG

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70520IG
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Single Nylon Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Locking
• Style: Isolated Ground
• Type: Single Receptacle
• UPC: 781786688551
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Industry Standard(s): WR Rating
• Nema Rating: L5-20R
• Standards - RoHS Compliance Status: CM
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: Yes
• Color: Orange
• Approvals: CSA, UL
• Part #: 70520IG
• Category: Plug/Receptacle
