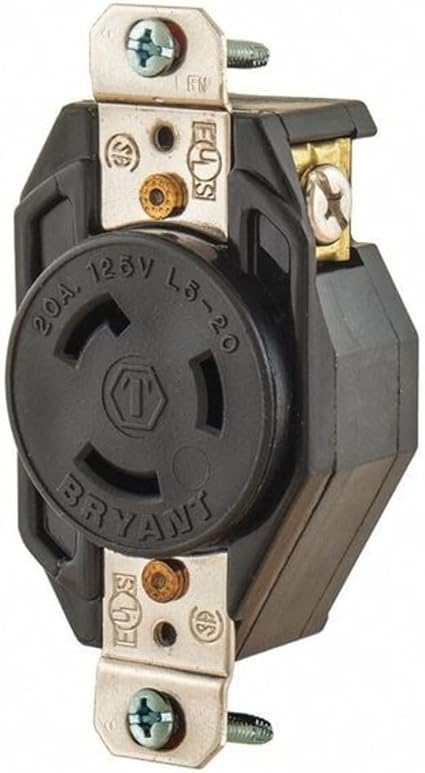

Bryant 70520FR Receptacle 20 Amp 125V Nema L5-20R

Product Description

The BRYANT 70520FR is an industrial grade locking receptacle. This 20 Amp, 125V receptacle features a nylon molded housing and is designed for reliable and safe electrical connections. It has combination back and side wiring terminals that accept #14 through #8 AWG solid or stranded conductors. The NEMA rating and configuration are molded into the face for easy identification.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide Width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade locking receptacle with nylon housing, combination wiring terminals, and molded NEMA configuration for easy identification.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70520FR
• Country of Origin: US

Technical Specifications

• Brand: Hubbell
• SKU: 354567
• Color: Black
• Material: Nylon
• Voltage: 125
• Amperage: 20
• Connector Type: Plug-In
• Total Power Outlets: 1
• Specification Met: NEMA
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon Face, Molded Reinforced Thermoplastic Polyester Base Material; Black Color; L5-20R Configuration; 3 Wire(S); UL 498, CSA, CE, NOM Approval; 125 V Voltage Rating; Flush Mounting; 20 Ampere Current Rating; Grounding; 2 Pole(S); Impact Resistant, Chemical Resistant; Back, Side Wiring; 1.56 Inch Face Outer Diameter; Tech SPEC[R] Brand; Applicable Standard Federal Specification WC596
• Manufacturer: Bryant Electric, Inc.
• Manufacturer Brand: Bryant Electric, Inc.
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781786688537
