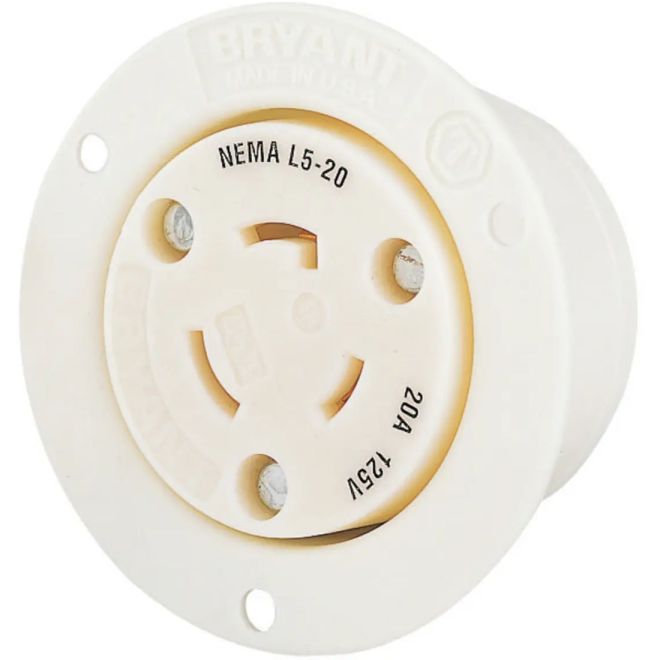

Bryant 70520ER Flanged Receptacle 20A 125V L5-20R

Product Description

The BRYANT 70520ER is an industrial flanged receptacle with a 20A and 125V rating, designed for heavy-duty applications. It features impact-resistant thermoplastic construction and backwired terminations for easy installation. Mounting screws are included. It is suitable for indoor dry environments unless protected by additional means.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial grade flanged receptacle with robust construction and easy installation.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70520ER
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 70520ER
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Receptacle
• UPC: 781786688506
• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L5-20R
• MPN: 70520ER
• Nominal Voltage Rating: 125 V
• Plug Type: Locking Equipment Female Receptacle
• Outlet Configuration: Single
• Model: 70520ER
• Nominal Current Rating: 20 A
• Current Type: AC
• Brand: BRYANT / Hubbell
• Gender: Female
• Country of Origin: China
• Category: Business & Industrial
• UL Rating Type: NEMA L5-20
• Rated Current: 20A
• Power Phase: 1-Phase
• Number of Pins/Wires: 3
• Rated Voltage: 125V
• Locking Blade: Yes
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Flanged Outlet
• NEMA Configuration: L5-20R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Part #: 70520ER
