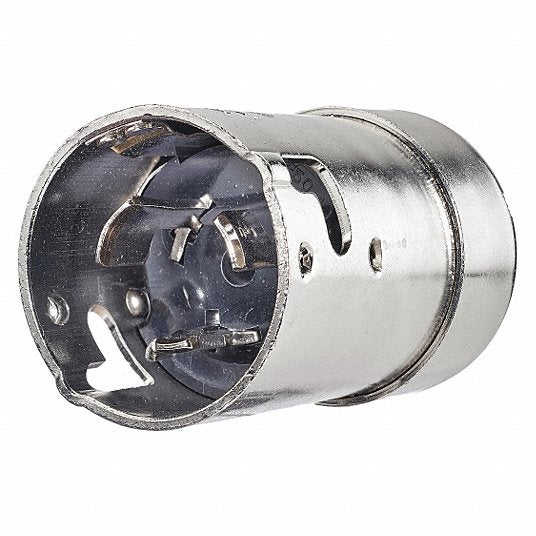

Bryant 6361CR Locking Plug 2P3W50A125V

Product Description

The BRYANT 6361CR is a locking plug designed for power connections that do not conform to standard NEMA configurations. This plug is suitable for industrial and commercial applications where equipment requires non-standard plug designs. It features 2 poles, 3 wires, and a 50A, 125V rating.

• MARINE LKG PLUG, 2P3W, 50A
• 125V,YL
• Corrosion Resistant

Product Highlights

Ideal for creating cable-to-plug terminations in industrial and commercial settings requiring non-standard plug designs.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 6361CR
• Country of Origin: USA (subject to change)

Technical Specifications

• Part #: 6361CR
• Category: Electrical Products
• Brand: BRYANT
• Manufacturer Part Number: 6361CR
• Body Length: 3.28 in
• Compatible with Series: Twist Lock
• Connection Orientation: Straight
• Current Rating: 50 A
• For Maximum Cable Diameter: 1.1 in
• For Minimum Cable Diameter: 0.83 in
• Horsepower Rating: 7 hp
• Housing Color: Yellow
• Housing Material: Brass
• IP Rating: IP20
• Maximum Wire Size: 12 AWG
• Midget Locking: No
• Minimum Wire Size: 14 AWG
• NEMA Configuration: Non-NEMA
• Number of Blades: 3
• Number of Poles: 2
• Overall Length: 3.28 in
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Corrosion Resistant
• Shrouded: Yes
• Standards: UL 498
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
