Bryant 619ahbq12xa1 High Wall Heat Pump R-410A 115V

Product Description

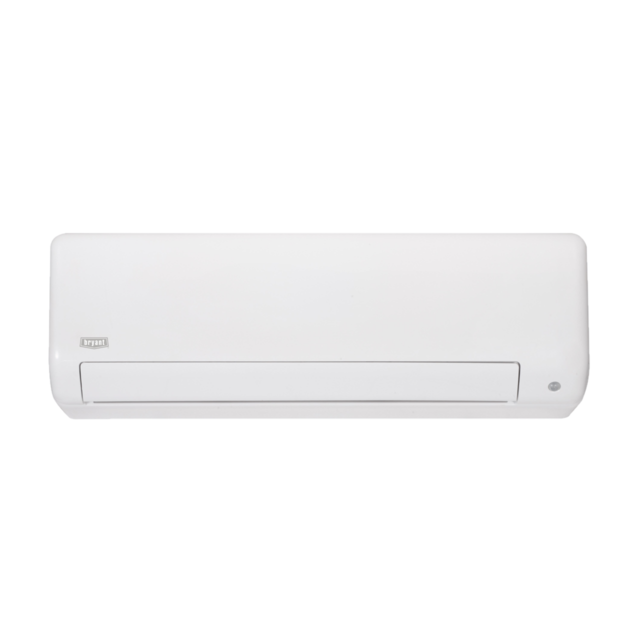

The BRYANT 619ahbq12xa1 is a high wall-mount heat pump indoor unit designed for ductless mini-split heating and cooling applications. Operating on 115 volts AC, single-phase, 60 Hz power and charged with R-410A refrigerant, this unit serves as the indoor air handler component in a split-system configuration. At 30 pounds and measuring 34.25 inches wide by 12.01 inches tall by 14.57 inches deep, the unit is sized for standard residential wall installations. Installation is typically performed by a licensed HVAC technician familiar with ductless split systems and refrigerant handling.

This high wall unit is intended for residential ductless heat pump systems where both heating and cooling are required from a single indoor head. It is part of the BRYANT 619AHB family, suited for room-by-room comfort control in applications where ducted systems are impractical. The unit mounts on an interior wall and connects to an outdoor condensing unit via refrigerant line sets and low-voltage control wiring. Typical installs include bedrooms, additions, converted spaces, and light commercial rooms requiring zoned climate control.

Key Features

• High wall-mount design for ductless mini-split heating and cooling
• R-410A refrigerant — compatible with current-generation ductless outdoor units
• 115V AC, single-phase, 60 Hz electrical supply
• Compact profile: 34.25 inches wide, 12.01 inches tall, 14.57 inches deep
• Part of the BRYANT 619AHB family platform

Compatibility

Designed for use within the BRYANT 619AHB family of ductless mini-split systems. Consult the system engineering guide or outdoor unit documentation to confirm matched-pair compatibility before installation.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician due to R-410A refrigerant handling requirements. Power down the outdoor unit and disconnect all electrical supply before servicing or mounting the indoor head. The wall mounting bracket must be anchored to structural backing capable of supporting the unit weight. Refer to the manufacturer installation manual for line-set routing, condensate drain slope, and low-voltage wiring termination procedures.

Technical Specifications

• Voltage: 115V AC
• Phase: 1-Phase
• Frequency: 60 Hz
• Refrigerant: R-410A
• Width: 34.25 inches
• Height: 12.01 inches
• Depth: 14.57 inches
• Weight: 30 pounds
• Family ID: 619AHB
• Country of Origin: CN

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 619ahbq12xa1
