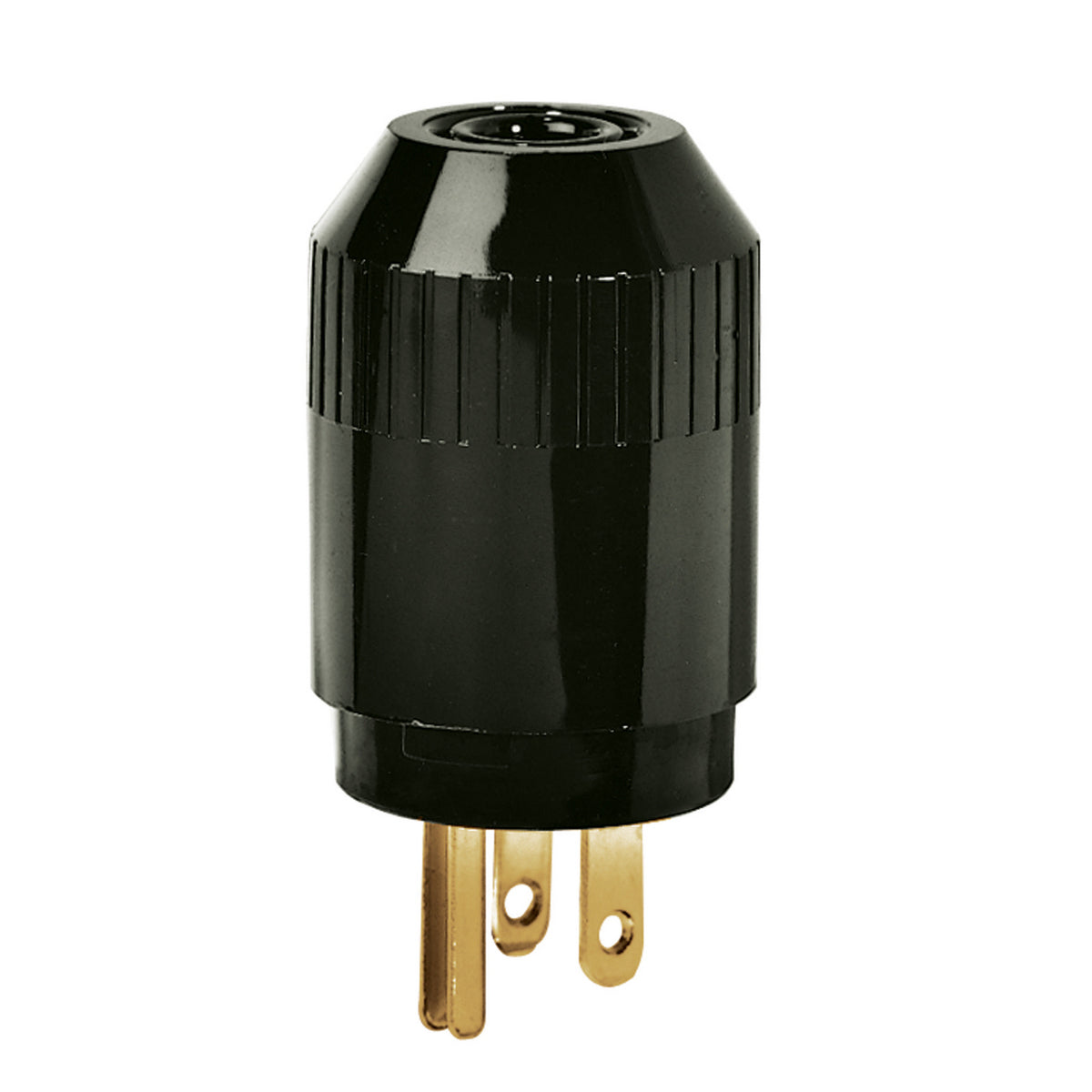

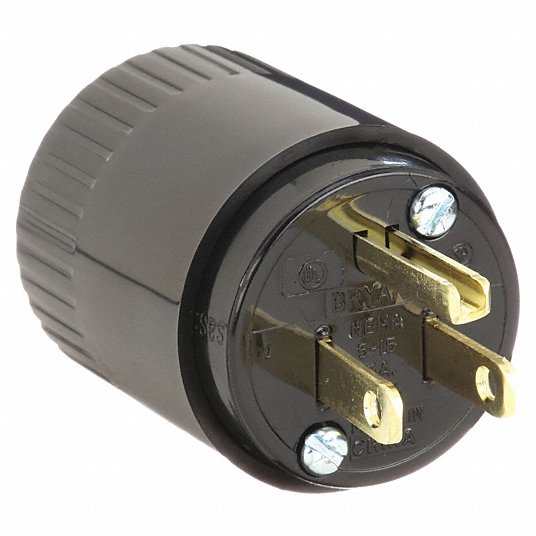

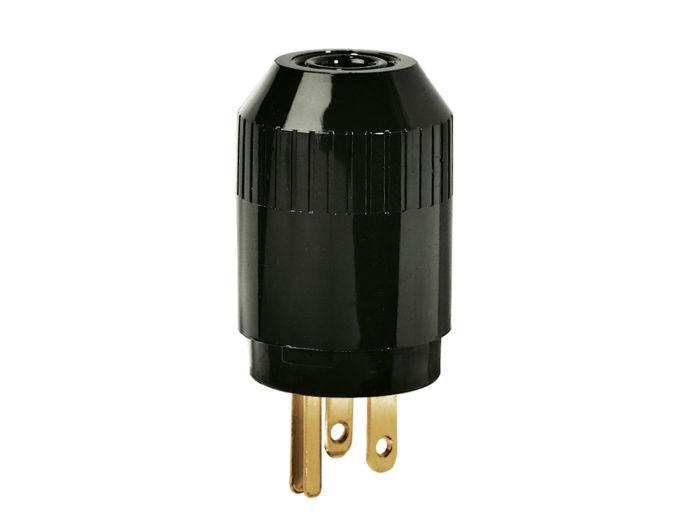

Bryant 5965B Straight Blade Plug 15A 125V 5-15P

Product Description

The BRYANT 5965B is a straight blade plug with terminations with screws that tighten down on conductors to secure them in place. It makes inline connections with receptacles and connectors to supply equipment with power. This industrial grade plug is NEMA 5-15P configured.

• Terminations with screws
• Inline connections with receptacles and connectors
• Heavy Duty

Product Highlights

The BRYANT Straight Blade Plug is ideal for industrial and commercial use.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5965B
• Country of Origin: China

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 5965B
• Body Length: 2.1 in
• Compatible Series: TECH-SPEC
• Connection Orientation: Straight
• Current Rating: 15 A
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.245 in
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Black
• Housing Material: Thermoplastic
• IP Rating: Not Rated
• Insulation Material: Thermoplastic
• NEMA Plug Configuration: 5-15P
• Number of Blades: 3
• Number of Poles: 2
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Voltage Rating: 125V AC
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• Manufacturer: Hubbell
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Item: Straight Blade Plug
• HP: 0.5
• Grade: Industrial
• Corrosion Resistant: No
• Material: Composite
• Number of Wires: 3
• Special Features: Ergonomic, Fluted Body Design
• Grade - Plugs and Receptacles: Industrial
• NEMA Plug Configuration - Plugs and Receptacles: 5-15P
• Antimicrobial: No
• Compatible with Series: TECH-SPEC(R)
• Market: Commercial, Industrial
• Application: Heavy Duty
• ARRA Compliant: Y
• Buy American Compliant: Y
• Catalog Number: 5965B
• Cord Diameter: 0.245 to 0.655 in
• Cord Type: All Portable
• Environmental Conditions: Indoor Dry unless protected by additional means
• EU RoHS Indicator: Y
• Terminal Type: Screw
• Type: 1-Phase Heavy Duty Grounding Male Standard
• Wattage: 1,875 W
• Wire Size: #14 AWG to #12 AWG
• Amperage Rating: 15 A
