Bryant 5684 Single Receptacle Outlet 15A 250V

Product Description

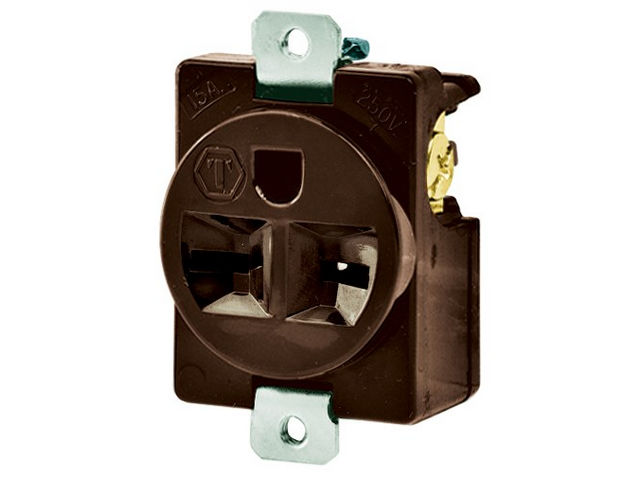

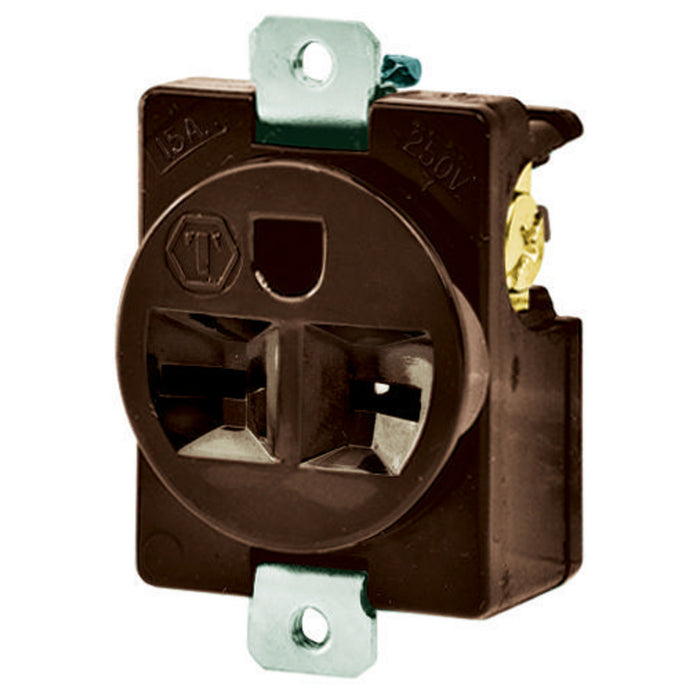

The Bryant 5684 is a brown single short-strap panel mount receptacle. This heavy-duty specification grade receptacle is NEMA 6-15R, grounding, and side wired, rated at 15A 250V. It features 8-32 tapped mounting holes on 1.94" centers and is suitable for floor mount and display receptacle boxes where space is limited.

• Rated 15 Amp, 250 Volt
• NEMA 6-15R configuration
• Features a short strap single receptacle

Product Highlights

The Bryant 5684 is ideal for commercial and residential electrical wiring needs.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5684
• Country of Origin: United States

Technical Specifications

• MPN: 5684
• Amperage: 15A
• Brand: Bryant
• Voltage: 250V AC
• Housing Color: Black
• Application: Electrical Wiring, Commercial, Outlet
• Finish: Brown
• Model: 5684
• Outlet Style: Single
• Additional Features: Panel Mount
• Device Type: Single Receptacle
• Grade: Heavy Duty Grade
• Ground: Grounding Screw
• NEMA Number: 6-15R
• Phase: 1 Phase
• Poles: 2
• Terminal Type(s): Side Wired
• Wires: 3
• Number of Poles: 2P
• Number of Wires: 3
• Wiring Method: Back & Side
