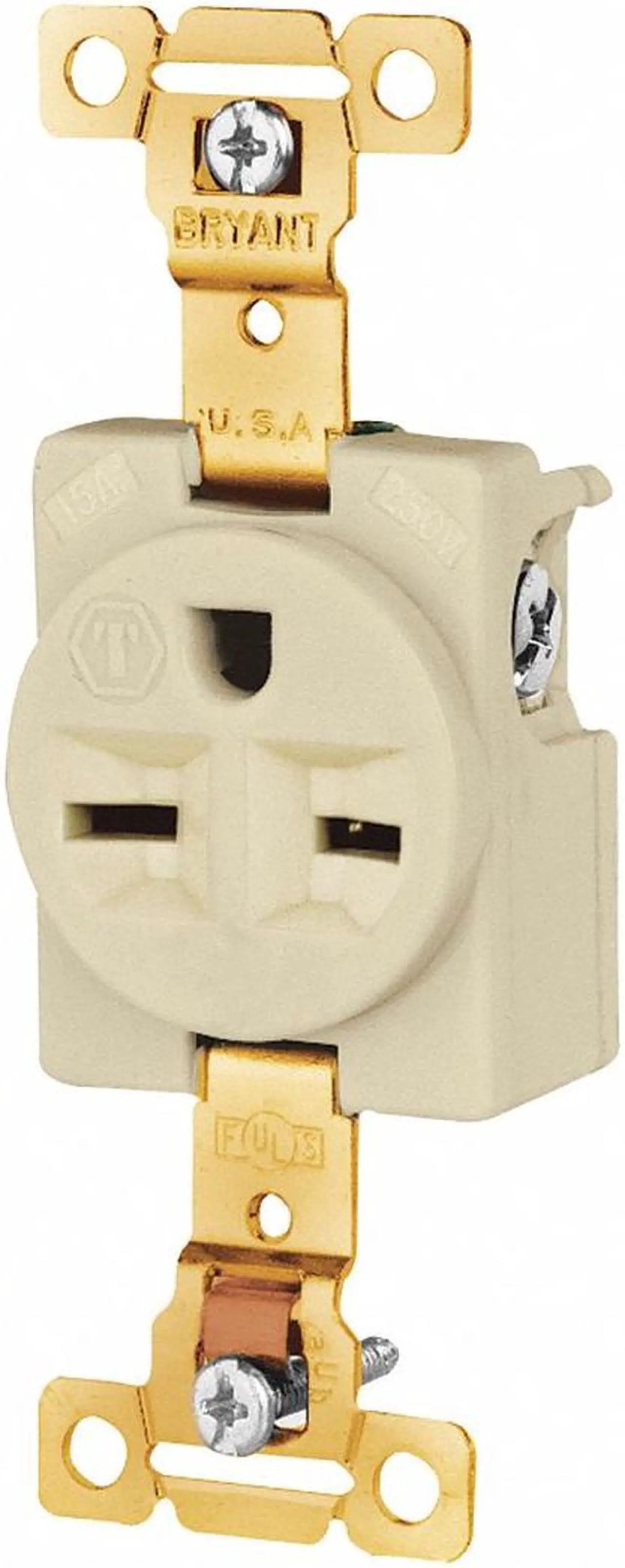

Bryant 5661I Industrial Grade Single Receptacle 15A 250V 6-15R

Product Description

The BRYANT 5661I is an industrial-grade single receptacle, designed for robust performance. Rated at 15A and 250V, this receptacle features a nylon housing material and a NEMA 6-15R configuration. It is suitable for commercial and industrial applications requiring a reliable power connection.

• Commercial/Industrial Grade
• 2-Pole 3-Wire Grounding
• 15A 250V
• 6-15R

Product Highlights

Ideal for industrial settings, this receptacle provides a secure and durable power solution.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5661I
• Country of Origin: United States

Technical Specifications

• Part Number: 5661I
• Current Rating: 15 A
• Voltage Rating: 250 V
• Grounding: Grounded
• Housing Material: Nylon
• Mount Type: Flush
• NEMA Receptacle Configuration: 6-15R
• Number of Poles: 2
• Number of Wires: 3
• Phase: Single Phase
• Receptacle Type: Single
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• Application: Extra Heavy Duty Industrial Specification Grade
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Extra Heavy Duty
• Style: Finder Groove Face
• Type: Single Receptacle
• UPC: 781786625914
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Wattage: 3750
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 6-15R
• Standards: CSA Certified; UL Listed
• Connection Orientation: Straight
• Cover Type: No Cover
• GFCI: No
• Housing Color: Ivory
• Number of Gangs: 1
• Polarized: Yes
• Resistance Properties: Corrosion Resistant
• AFCI: No
• Grade: General Use
• Horsepower Rating: 1/2 hp
• Includes Mounting Hardware: Yes
• IP Rating: IP20
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mounting Location: Outlet Box
• Number of Outlets: 1
• Number of Wall Plates Included: 0
• Overall Depth: 0.9 in
• Surge Protection: No
• UNSPSC: 39121406
• Amps: 15 Amps
