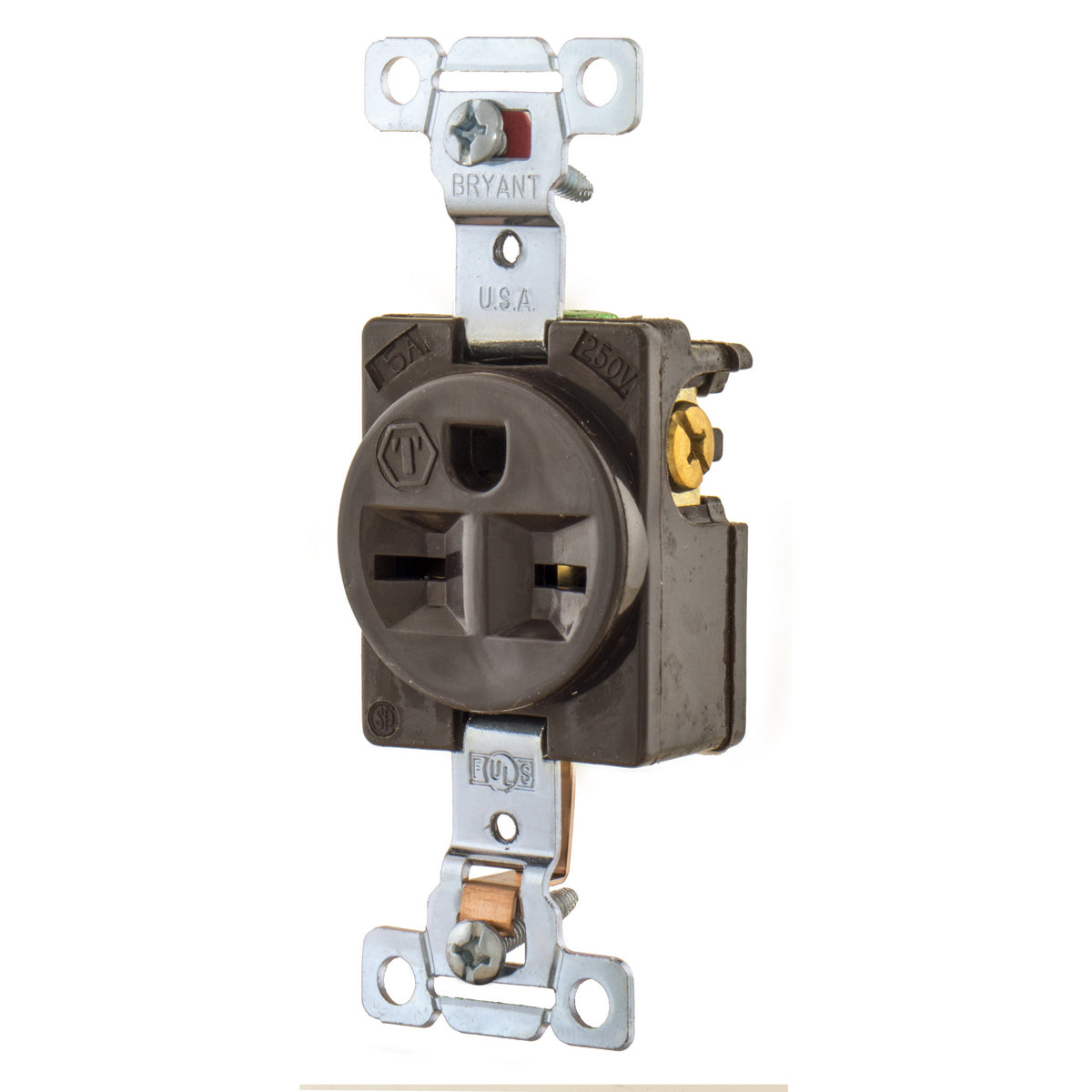

Bryant 5661 Straight Blade Devices, Receptacles, Single, 15A 250V, 6-15R

Product Description

The BRYANT 5661 is a straight blade receptacle designed for commercial and industrial use. This single receptacle is a 2-pole, 3-wire grounding type, rated for 15A and 250V with a 6-15R NEMA rating. It is suitable for heavy-duty industrial applications and indoor dry environments.

• Commercial/Industrial Grade
• 2-Pole 3-Wire Grounding
• Back and Side Wired

Product Highlights

This receptacle features a finder groove face and screw mounting for secure installation.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5661
• Country of Origin: USA

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 5661
• Color: Brown
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Extra Heavy Duty
• Style: Finder Groove Face
• Type: Receptacle
• UPC: 781786625907
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Wattage: 3750
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 6-15R
• Standards - RoHS Compliance Status: CM
• Material Type: Steel
• Specification Met: NEMA
• HS Code: 853669
