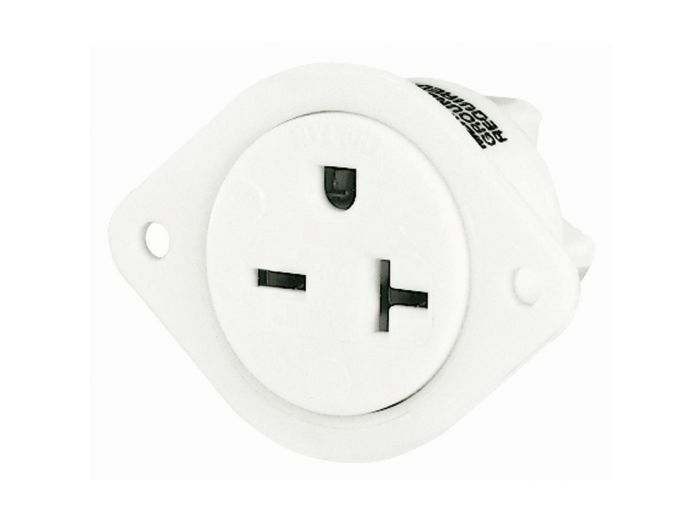

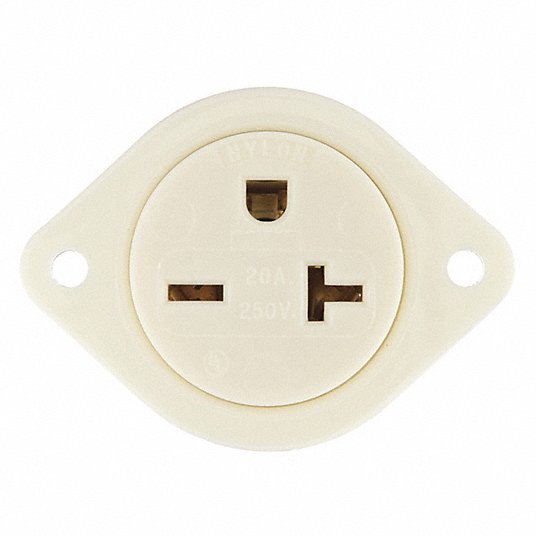

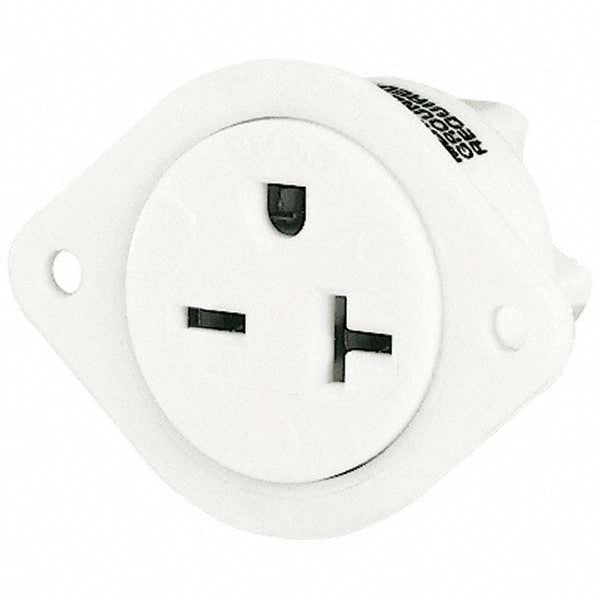

Bryant 5479 flanged receptacle single 250V ac 20 a 2 pole / 3 wire

Product Description

The BRYANT 5479 is a general-purpose flanged receptacle designed for standard installations requiring electrical performance and durability. This receptacle provides basic, non-locking power connections without added protection or monitoring features. It is a 250V AC, 20A, 2-pole, 3-wire grounding receptacle.

• Corrosion resistant
• Includes mounting hardware
• NEMA 6-20R configuration

Product Highlights

The BRYANT flanged receptacle is ideal for commercial applications. It features screw terminals and back/side wiring.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5479
• Country of Origin: USA

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 5479
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No Cover
• Current Rating: 20 A
• Flange Type: Flanged
• GFCI: No
• Grade: Industrial
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: White
• Housing Material: Nylon
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Market: Commercial
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Surface
• NEMA Receptacle Configuration: 6-20R
• Number of Gangs: 1
• Number of Outlets: 1
• Number of Poles: 2
• Number of Wall Plates Included: 0
• Number of Wires: 3
• Phase: Single
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Corrosion Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Voltage Rating: 250V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
• Model: 5479
• California Prop 65 Warning: N
• Country of Origin: US
• Material: Nylon
• Style: Clamp Type
• Amperage: 20
• Number Of Phases: 1
• Body Material: Nylon
• Resistance Features: Impact-Resistant
• UNSPSC Code: 39121406
• Product Service Code: 5935
• Amps: 20 Amps
• Count per pack: 1
• Volts: 250 VAC
• Size: #14 AWG to #12 AWG
• Application: Commercial/Industrial
• Mounting Type: Panel
• Series: Heavy Duty
