Bryant 5362BI Receptacle, Straight Blade, Industrial A 20A 125V 5-20R

Product Description

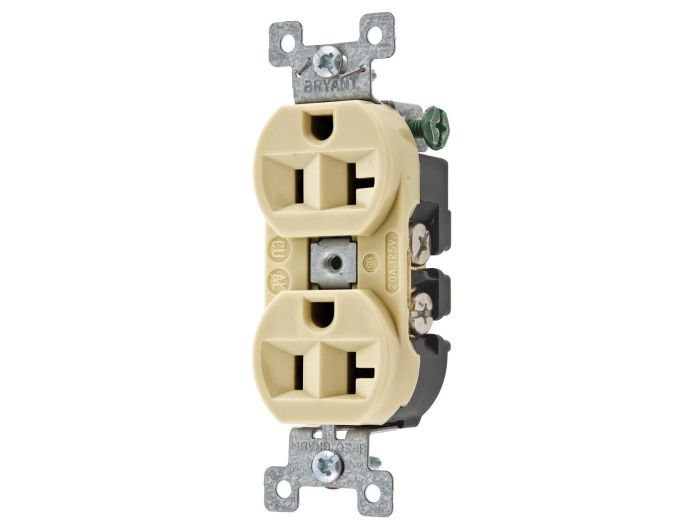

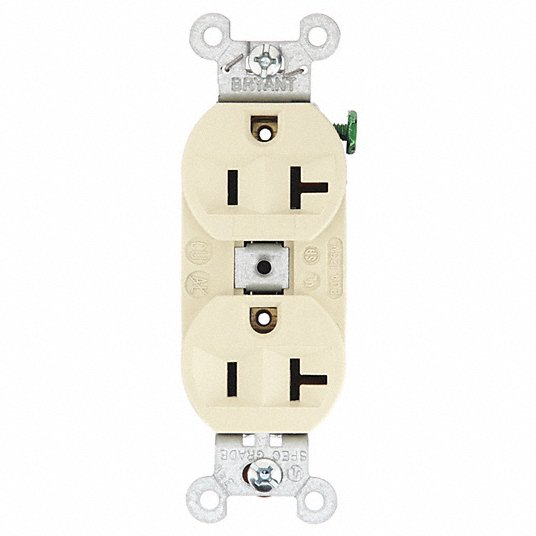

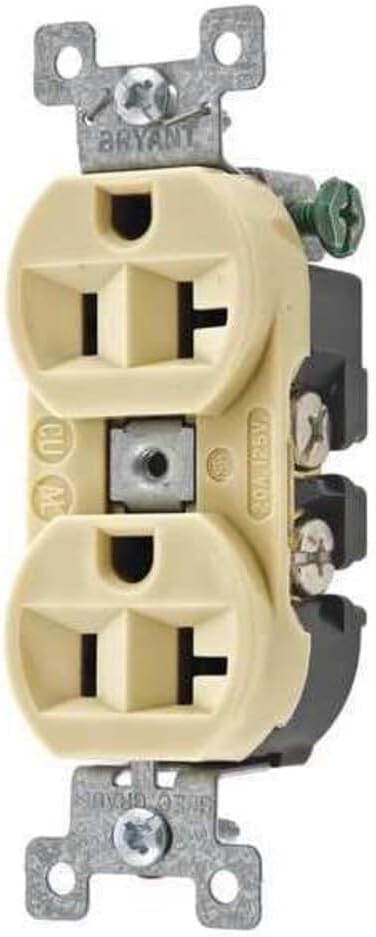

The BRYANT 5362BI is a straight blade, industrial grade receptacle. Designed for standard installations, it provides basic, non-locking power connections where electrical performance and durability are required. It is a 2-pole, 3-wire grounding receptacle with a slender and compact design.

• Slender/compact design
• Finder Groove Face
• Triple wipe contacts

Product Highlights

This receptacle is ideal for commercial and industrial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5362BI
• Country of Origin: USA (subject to change)

Technical Specifications

• Catalog Number: 5362BI
• Color: Ivory
• Environmental Conditions: Indoor Dry unless protected by additional means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material: Thermoplastic/Composite
• Material - Mounting Hardware: Screw Mounting
• Mounting Type: Screw Mount
• OEM Brand Name: Hubbell Bryant
• Series: Hubbell-PRO
• Size: Standard Sized Product
• Style: Finder Groove Face
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
• Type: Standard Duplex
• UPC: 781786715028
• Dimensions: 3.28 in x 1.38 in x 0.92 in
• Height: 0.92 in
• Length: 3.28 in
• Weight: 0.2 lb
• Width: 1.38 in
• Current Rating: 20 A
• Connectivity: Back and Side Wired
• Phase: Single Phase
• Voltage Rating: 125 V
• Wattage: 1875 W
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #12 AWG to #10 AWG
• Industry Standard(s): UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
• Nema Rating: 5-20R
• Carton Quantity: 10
• Pallet Quantity: 3600
• Brand: BRYANT
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No Cover
• Face Plate Height: 2.7 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Ivory
• Housing Material: Composite; Thermoplastic
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Operating Temperature: 167 °F
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 12 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Overall Depth: 0.9 in
• Polarized: Yes
• Receptacle Type: Duplex
• Special Resistance: Impact Resistant
• Standards: CSA Certified C22.2; Federal Specification W-C-596; NEMA WD-6; UL E2186
• Surge Protection: No
• Voltage Rating Description: 125 V
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Compatible Devices: Outlet
• Material - Body: Brass
• Connector Type: Plug In
• Specification Met: NEMA
• Item Weight: 0.2 Pounds
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Description: Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory
• Voltage: 125 VAC
• Connection Type: Duplex Receptacle
• NEMA Configuration: 5-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
• Net Weight: 0.18 lbs
• Gross Weight: 0.2 lbs
