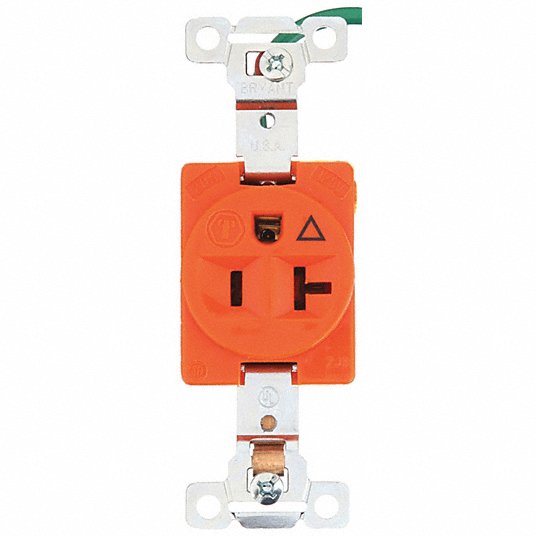

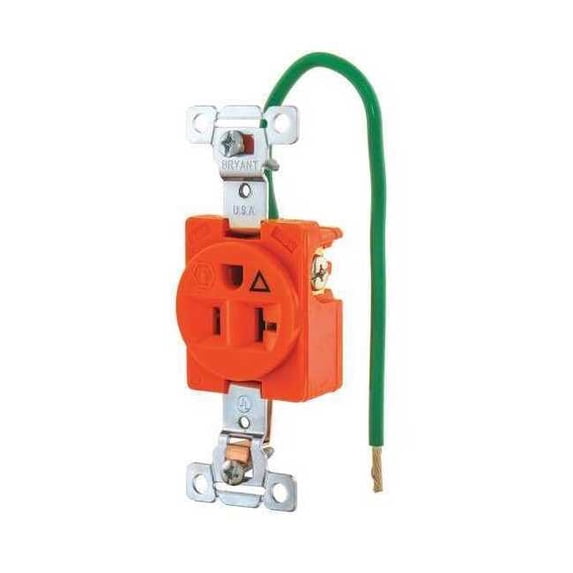

Bryant 5361IG Single Receptacle 20A 125V 5-20R

Product Description

The BRYANT 5361IG is a single receptacle designed for commercial and industrial use. This 20A 125V receptacle features an isolated ground to limit electrical noise, a one-piece grounding system, and a heavy-duty wraparound steel yoke for enhanced strength and security. It is suitable for standard installations requiring electrical performance and durability.

• One-piece grounding system including integral self-grounding strap
• Full-face, wraparound design is molded of high-impact, chemical-resistant nylon
• Extended barrier (shroud) on sides of cover surround wire terminals for added insulation and isolation of conductors

Product Highlights

Commercial/Industrial grade receptacle with isolated ground and robust construction for reliable power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5361IG
• Country of Origin: USA

Technical Specifications

• Brand: Bryant Electric
• Model: 5361IG
• MPN: 5361IG
• Amperage: 20 Amps
• Voltage: 125 Volts
• Nema Rating: 5-20R
• Material: Nylon
• Color: Orange
• Item Type: Single
• Application: Extra Heavy Duty Industrial Specification Grade
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Mounting Type: Flush
• Standards: CSA Certified; UL Listed
• Wire Size: #14 AWG to #12 AWG
• Phase: Single Phase
• Connection Orientation: Straight
• Grounding: Grounded; Isolated Ground
• Housing Material: Composite
• Receptacle Type: Single
• Wiring Method: Back/Side
• Current Rating: 20 A
• Voltage Rating: 125 V
• Wattage: 2500
