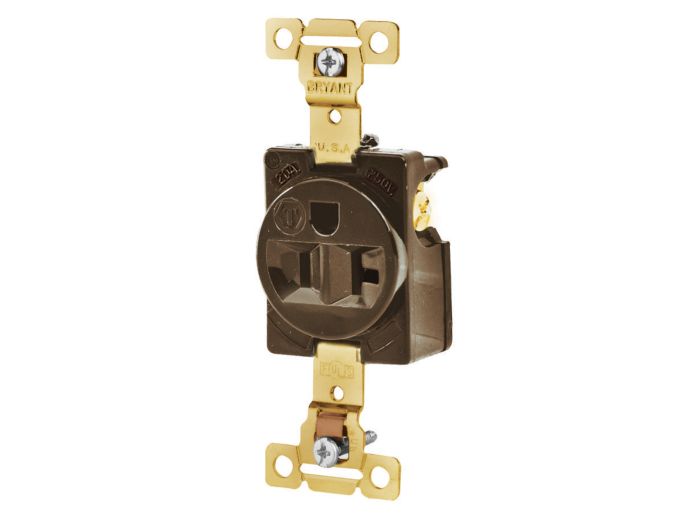

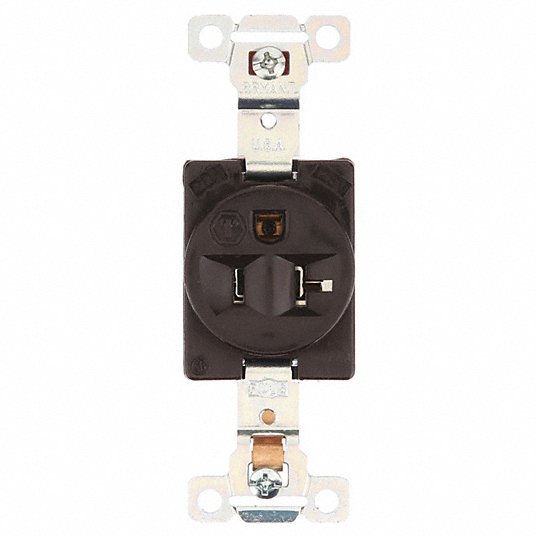

Bryant 5361 Receptacle Single 20A 125V 5-20R

Product Description

The BRYANT 5361 is a single, commercial/industrial grade receptacle. This 2-pole, 3-wire grounding receptacle supports 20A and 125V with a NEMA 5-20R configuration. Designed for standard installations where electrical performance and durability are required without specialized grounding, signaling, or surge suppression.

• Full-face, wraparound design is molded of high-impact, chemical-resistant nylon
• Extended barrier (shroud) on sides of cover surround wire terminals for added insulation and isolation of conductors
• Heavy-duty wraparound steel yoke locked in for maximum strength and security

Product Highlights

This receptacle is ideal for industrial applications requiring a reliable and safe electrical connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5361
• Country of Origin: USA (subject to change)

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 5361
• Color: Brown
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Extra Heavy Duty
• Style: Finder Groove Face
• Type: Single Receptacle
• UPC: 781786625426
• Amperage Rating: 20 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 20 A
• Current Rating: 20
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• Material: Nylon, Steel
• Voltage: 125 Volts
• Specification Met: NEMA
• Connector Type: Plug In
• Manufacturer Part Number: 5361
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Connection Type: Receptacle
• NEMA Configuration: 5-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No
• Cover: No
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 1
• Housing Color: Brown
• Housing Material: Nylon
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Industrial
• Maximum Wire Size: 12
• Minimum Wire Size: 14
• Mount Type: Flush
• Mounting Location: Outlet Box
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wall Plates Included: 0
• Number of Wires: 3
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Corrosion Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
