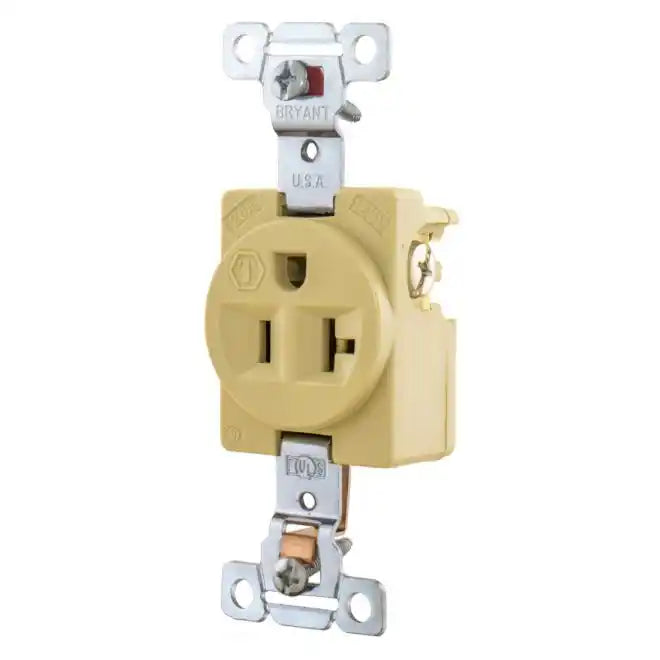

Bryant 5351I Receptacle 20A 125V 5-20R

Product Description

The BRYANT 5351I is a single, commercial/industrial grade receptacle. This 2-pole, 3-wire grounding receptacle is side wired and rated for 20A and 125V with a NEMA configuration of 5-20R. The one-piece ground system provides reliable continuity, and triple-wipe brass line contacts ensure excellent conductivity.

• Commercial/Industrial Grade
• 2-Pole 3-Wire Grounding
• Side Wired

Product Highlights

This receptacle is ideal for heavy-duty applications requiring a reliable and durable connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5351I

Technical Specifications

• Manufacturer Part Number: 5351I
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 20 A
• Voltage: 125V AC
• Connection Type: Receptacle
• NEMA Configuration: 5-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
• Application: Extra Heavy Duty Compact Industrial Specification Grade
• Catalog Number: 5351I
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Finder Groove Face
• Type: Single Receptacle
• UPC: 781786174115
• Amperage Rating: 20 A
• Connectivity: Side Wired Only
• Current / Amperage Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Manufacturer Alternate Number: 5351-I
• Rated Current: 20A
• Power Phase: 1-Phase
• Number of Pins/Wires: 3
• Rated Voltage: 125V
• Locking Blade: No
• UOM: ea
• Brand: BRYANT
• MPN: 5351I
• Condition: New
• Amperage: 20A
• Ground: Grounding
• Application Grade: Industrial
• Wiring Method: Side
