Bryant 5295 straight blade plug 15A 125V 5-15P

Product Description

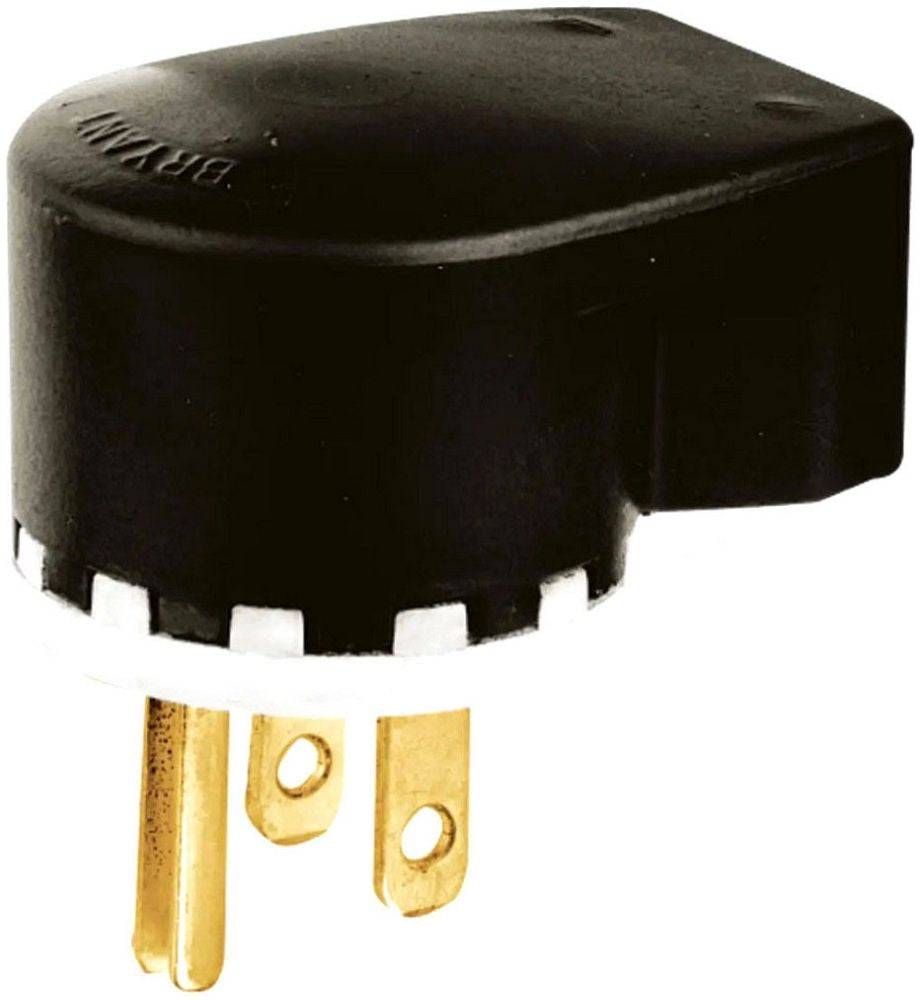

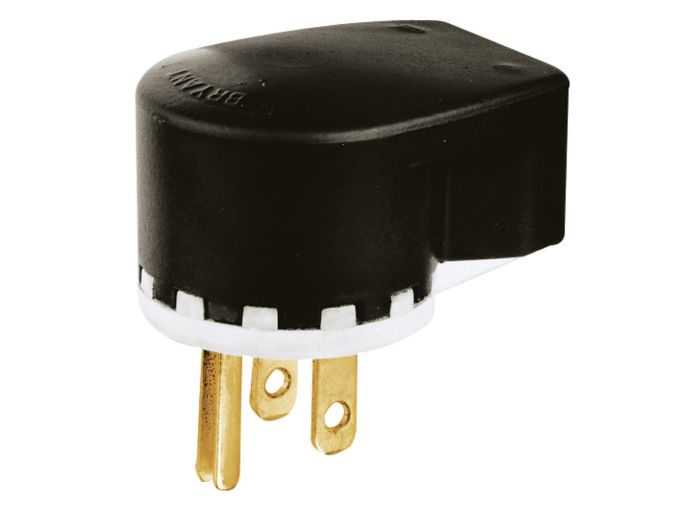

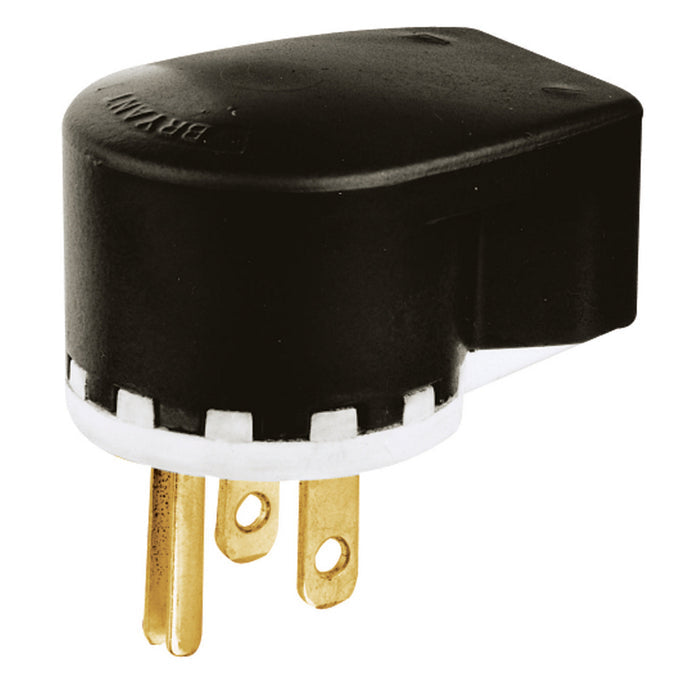

The BRYANT 5295 is a straight blade plug designed for heavy-duty industrial and commercial applications. This angled male plug features a nylon construction and is rated for 15A and 125V. It is a 2-pole, 3-wire grounding plug with a NEMA 5-15P configuration.

• Hinged 1-Piece Body Opens Wide for Easy Wiring
• Clamp-Type Terminals Ensure Secure Wire Terminations
• Internal Cord Grips Prevent Conductor Slippage

Product Highlights

Heavy-duty, industrial/commercial grade angled plug with secure wire terminations and internal cord grips.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5295
• Country of Origin: Puerto Rico

Technical Specifications

• Approval: UL, CSA
• Configuration: 5-15P
• Constructional Feature: Impact/Chemical Resistant
• Cord Size: 0.3 to 0.655 Inch
• Grade: Heavy Duty, Industrial, Commercial
• Ground Type: Grounding
• Manufacturer Name: Bryant
• Material: Nylon
• Number Of Poles: 2
• Number Of Wires: 3
• Product UPC: 781786174108
• Type: Polarized, Angled
• Application: Heavy Duty
• Catalog Number: 5295
• Cord Range: 0.300"-0.655"
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Standard
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• UPC: 781786174108
• Length: 1.25 in
• Width: 2.07 in
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Portable
• Connector Type: Plug
• Connector Angle: Angled
• Voltage: 125V
• Grounding Style: Self-Grounded
• Resistance Features: Impact-Resistant
• Number Of Phases: 1
• Body Material: Composite
• Standards: UL Listed; CSA Certified
• Nema Configuration: 5-15P
• UNSPSC Code: 39121400
• Manufacturer Part Number: 5295
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Body Type: Angled
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
