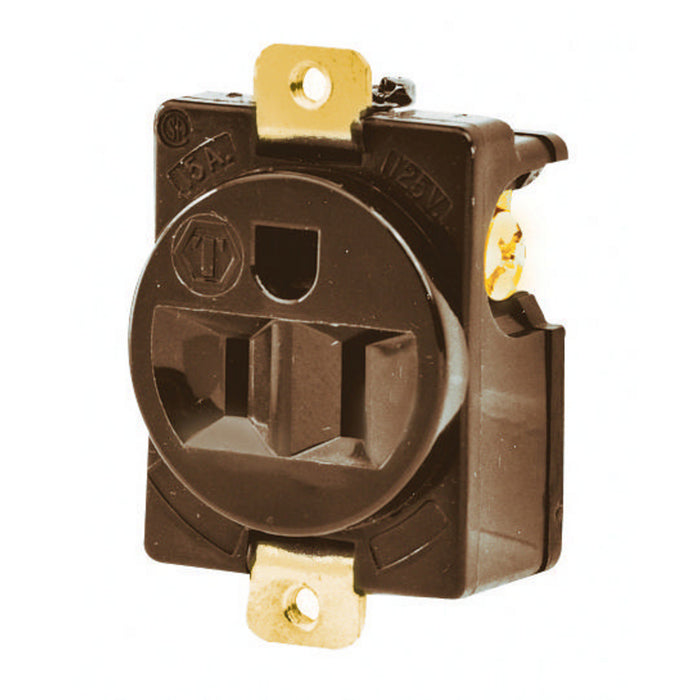

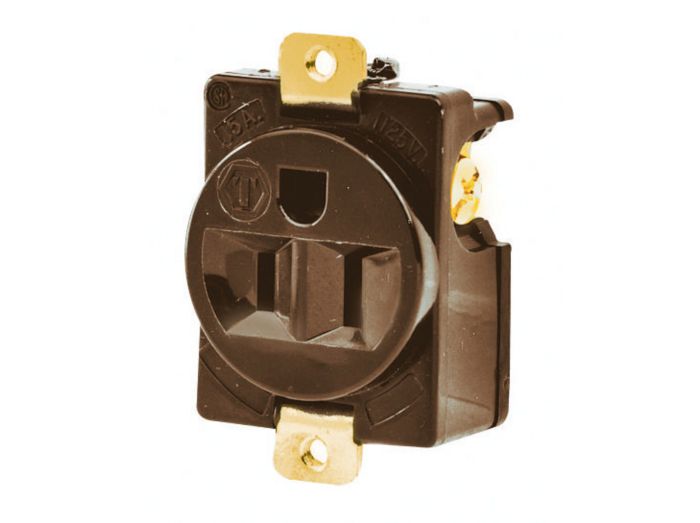

Bryant 5284 Receptacles, Short Yoke, Commercial/Industrial Grade, 15A 125V, 5-15R

Product Description

The BRYANT 5284 is a straight blade receptacle designed for commercial and industrial applications. This 2-pole, 3-wire grounding receptacle features a short yoke and is rated for 15A and 125V with a 5-15R NEMA rating. It is suitable for panel mounting with 1.94" centers.

• Short Yoke
• Commercial/Industrial Grade
• 2-Pole 3-Wire Grounding

Product Highlights

Ideal for heavy-duty industrial applications, this receptacle ensures a reliable and safe power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5284
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 5284
• Color: Brown
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Panel Mount Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Extra Heavy Duty
• Style: Finder Groove Face
• Type: Single Receptacle
• UPC: 781786625235
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Input Voltage: 125 VAC
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
