Bryant 5279 Straight Blade Devices, Equipment Base Devices - Clamp Type, 15A 125V

Product Description

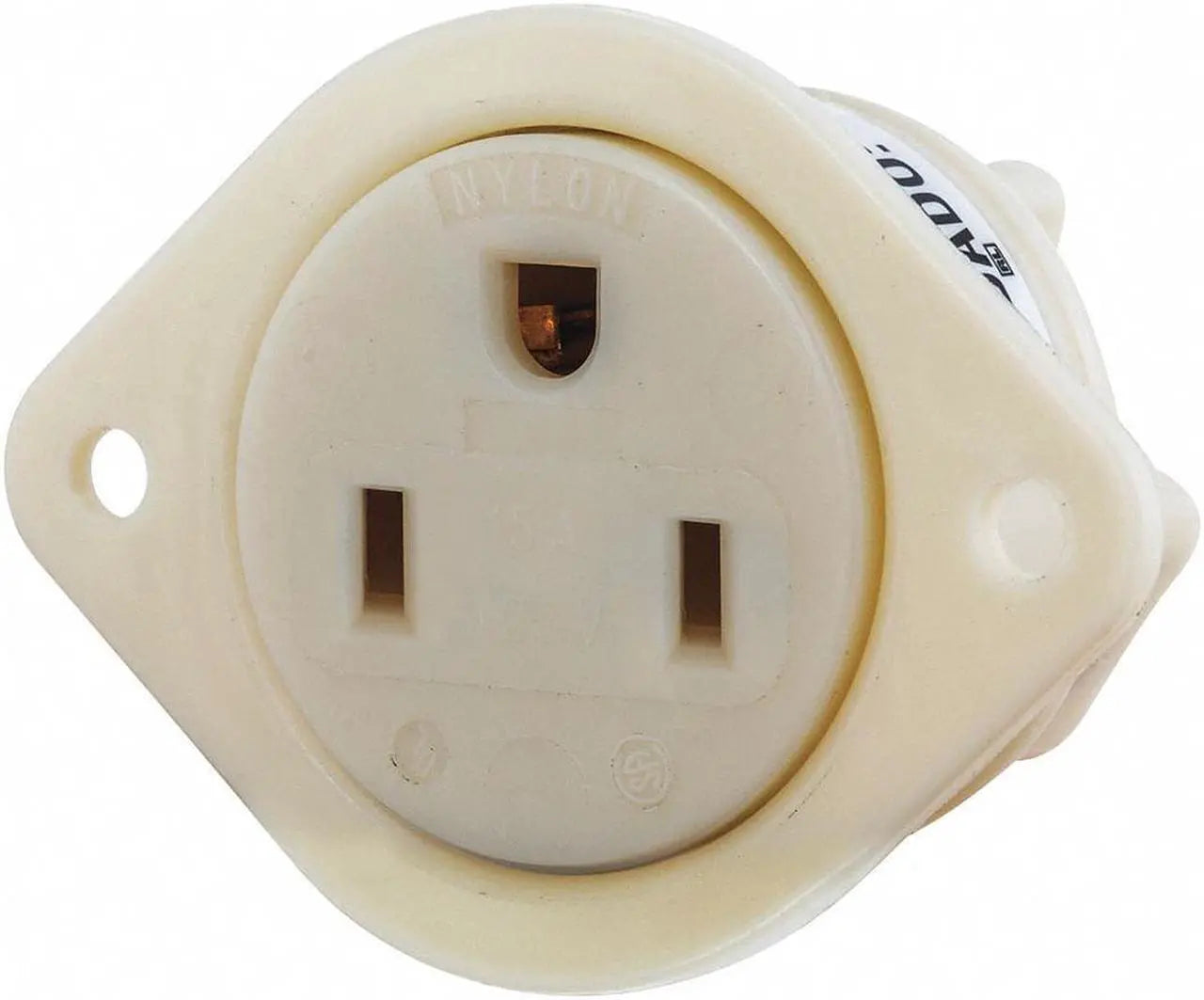

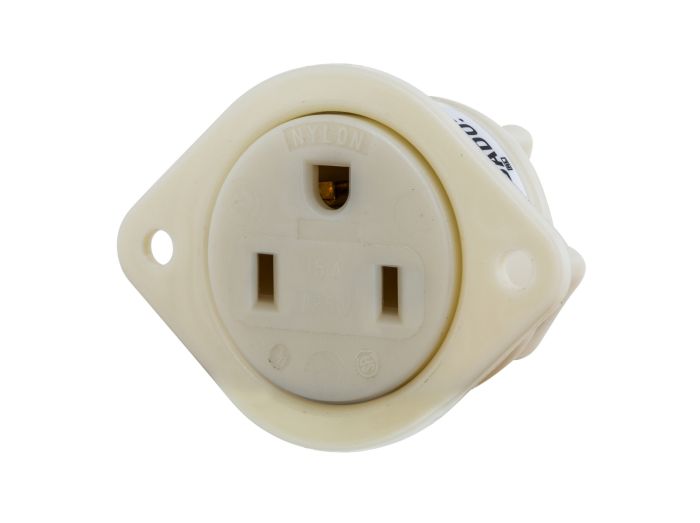

The BRYANT 5279 straight blade device is an equipment base device with a clamp type design. This industrial/commercial grade receptacle features back wiring and a female nylon cup. Rated for 15A and 125V, it is a 2-pole, 3-wire grounding device.

• Back Wiring
• Female Nylon Cup
• Industrial/Commercial

Product Highlights

The BRYANT straight blade receptacle is ideal for industrial and commercial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5279
• Country of Origin: US

Technical Specifications

• Application: Commercial/Industrial
• Catalog Number: 5279
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Flanged Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Clamp Type
• Type: Flanged Receptacle
• UPC: 781786659957
• Amperage Rating: 15 A
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• Material: Nylon
• Voltage: 125 Volts
• Connector Type: Plug-In
• Total Power Outlets: 1
• Material Type: Thermoplastic
• Specification Met: NEMA
• Model: 5279
• Included Components: Electrical Receptacle
• Unit Count: 1.0 Count
• Item Type Name: Electrical Receptacle, Electrical Outlet
• Manufacturer Part Number: 5279
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Connection Type: Flanged Outlet
• NEMA Configuration: 5-15R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
• Country of Origin: US
• California Prop 65 Warning: N
