Bryant 5278 Flanged Inlet Straight Blade Industria 15A 125V 5-15P

Product Description

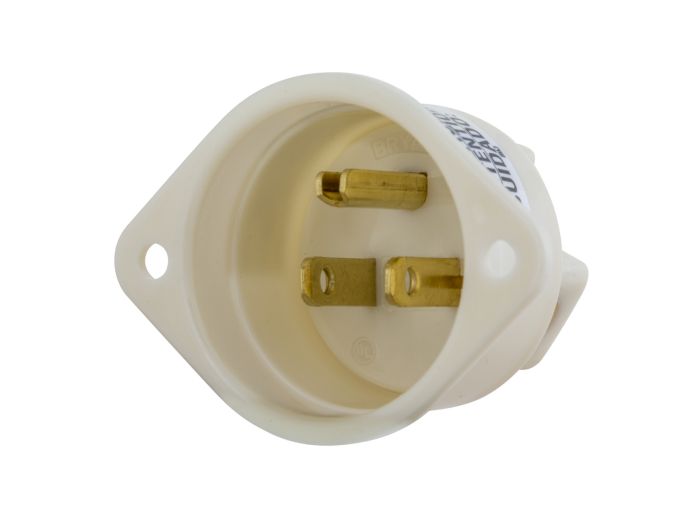

The BRYANT 5278 is a flanged inlet, straight blade industria device. This equipment base device features a clamp type, back wiring, and a male nylon cup. Designed for industrial and commercial applications, it supports 15A and 125V with a 2-pole, 3-wire grounding configuration and a 5-15P NEMA rating.

• Back Wiring
• Male Nylon Cup
• Industrial/Commercial
• 15A 125V
• 2-Pole 3-Wire Grounding

Product Highlights

Flanged inlet with straight blade, designed for industrial and commercial use with back wiring and a male nylon cup.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5278
• Country of Origin: Puerto Rico

Technical Specifications

• Manufacturer: Bryant Electric
• Manufacturer #: 5278
• Catalog Number: 5278
• Application: Extra Heavy Duty Industrial
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: Single Flanged
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Clamp Type
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
• Type: Flanged Inlet
• UPC: 781786625181
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 3000V Minimum in
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875
• Number Of Wires: 3-Wire
• Nema Rating: 5-15P
• Standards - RoHS Compliance Status: CM
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Flanged Inlet
• NEMA Configuration: 5-15P
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
• Material: Thermoplastic
• Amperage: 15 Amps
• Specification Met: NEMA
• Grade: Industrial
• Connector Angle: No Angle
• Grounding Style: Self-Grounded
• Resistance Features: Impact-Resistant
• Number Of Phases: 1
• Body Material: Nylon
• Standards: UL Listed; CSA Certified
• Connection Orientation: Straight
• Cover Type: No
• For Location: Indoor
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: White
• Housing Material: Nylon
• Includes Mounting Hardware: Yes
• Maximum Operating Temperature: 75 C
• Minimum Operating Temperature: -40 F
• Mount Hole Center-to-Center Width: 2 in
• NEMA Plug Configuration: 5-15P
• Number of Blades: 3
• Number of Gangs: 1
• Phase: Single
• Receptacle Type: Single
• Surge Protection: No
• Wire Connection Location: Back
• Wire Connection Type: Screw Terminals
