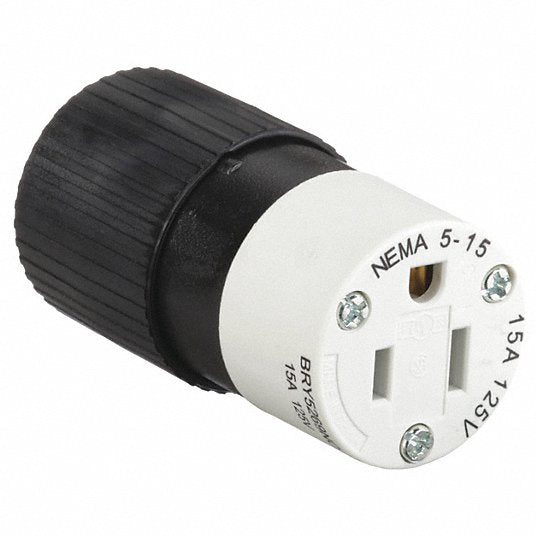

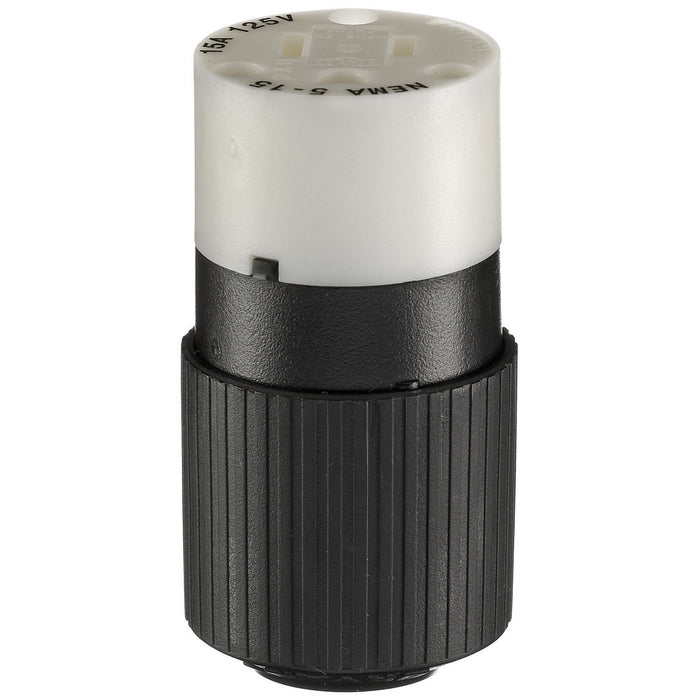

Bryant 5269NC Female Connector Body 15A 125V 5-15R

Product Description

The BRYANT 5269NC is a heavy-duty, industrial/commercial grade female connector body. This straight blade connector features screw terminals to secure conductors. It makes inline connections with plugs to supply equipment with power. Rated for 15A 125V, it is a 2-pole, 3-wire grounding connector with a NEMA 5-15R configuration.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 15A 125V
• 2-Pole 3- WireGrounding

Product Highlights

The BRYANT 5269NC connector is ideal for industrial and commercial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5269NC
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial Grade
• Catalog Number: BRY5269NC
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: Tech-Spec Triple Gripper
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75
• UNSPSC: 39121421
