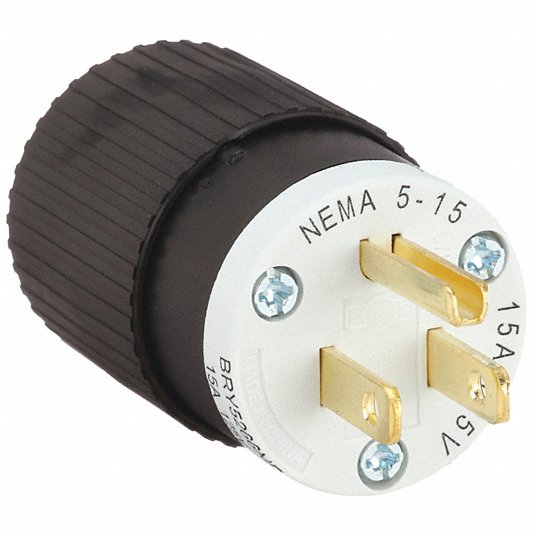

Bryant 5266NP Straight Blade Devices Male Plug 15A 125V 5-15P

Product Description

The BRYANT 5266NP is a straight blade male plug designed for heavy-duty industrial and commercial use. Rated at 15A and 125V, this 2-pole, 3-wire grounding plug features a 5-15P NEMA configuration. It makes inline connections with receptacles and connectors to supply equipment with power.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 15A 125V
• 2-Pole 3-Wire Grounding

Product Highlights

This straight blade plug is ideal for industrial and commercial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5266NP
• Country of Origin: China

Technical Specifications

• Application: Extra Heavy Duty Industrial Grade
• Catalog Number: BRY5266NP
• Color: Black and White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Tech-Spec Triple Gripper
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Series: Industrial
• Style: Extra Heavy Duty
• Type: Plug
• UPC: 781786005877
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V AC
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Portable
• Compatible Series: Triple Gripper
• Connection Orientation: Straight
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Black; White
• Housing Material: Composite
• IP Rating: Not Rated
• Insulation Material: Nylon
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• NEMA Plug Configuration: 5-15P
• Number of Blades: 3
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant, Impact Resistant
• Shrouded: Yes
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121402
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Body Length: 2.18 in
• Outside Diameter: 1.52 in
