Bryant 5261IG Single Receptacle 15A 125V

Product Description

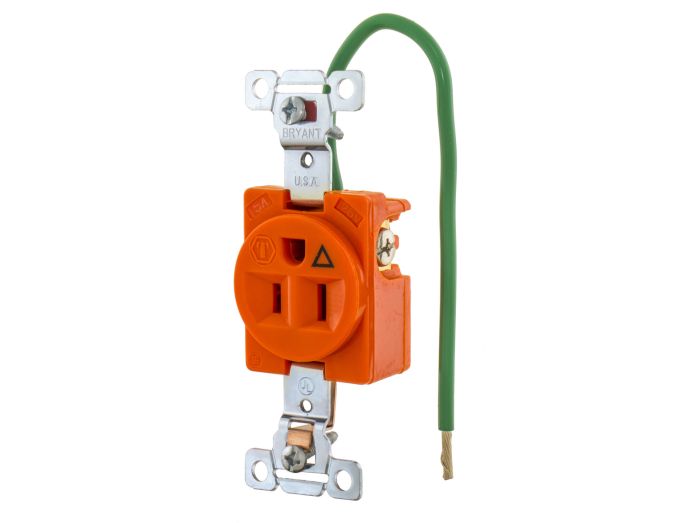

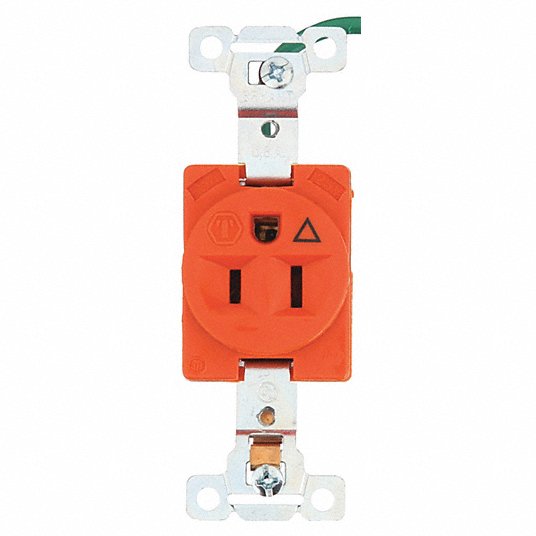

The Bryant 5261IG tech-spec isolated ground receptacles use insulation barrier construction to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. Isolated ground devices help limit electrical noise on the equipment grounding circuit by providing two grounding paths for the installation.

• One-piece grounding system including integral self-grounding strap
• Full-face, wraparound design is molded of high-impact, chemical-resistant nylon
• Extended barrier (shroud) on sides of cover surround wire terminals for added insulation and isolation of conductors

Product Highlights

The Bryant 5261IG is ideal for installations where electrical performance and durability are required.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5261IG
• Country of Origin: USA

Technical Specifications

• Brand: BRYANT
• Color: Orange
• Material: Metal,Steel
• Voltage: 125 VAC
• Amperage: 15 A
• Connector Type: Plug-In
• Total Power Outlets: 1
• Specification Met: NEMA
• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 5261IG
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Straight Blade
• Style: Finder Groove Face
• Type: Single Receptacle
• UPC: 781786624962
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Face Plate Height: 1.8 in
• Face Plate Width: 1.4 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: General Use
• Grounding: Grounded; Isolated Ground
• Horsepower Rating: 1/2 hp
• Housing Color: Orange
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Wall Plates Included: 0
• Overall Depth: 0.9 in
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Impact Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Connection Type: Receptacle
• NEMA Configuration: 5-15R
• Watertight: No
• Isolated Ground: Yes
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
