Bryant 5261I Straight Blade Single Receptacle 15A

Product Description

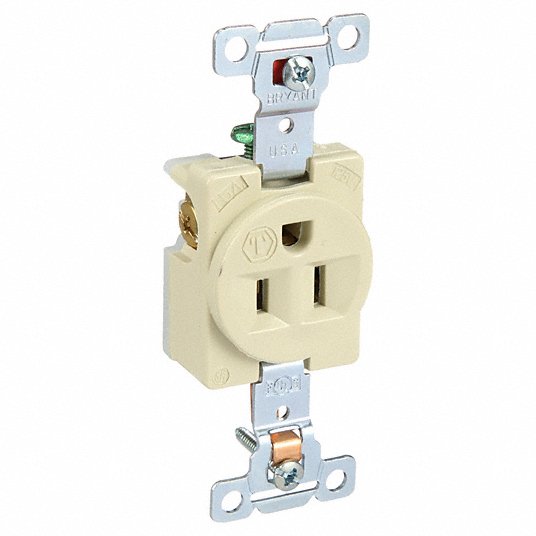

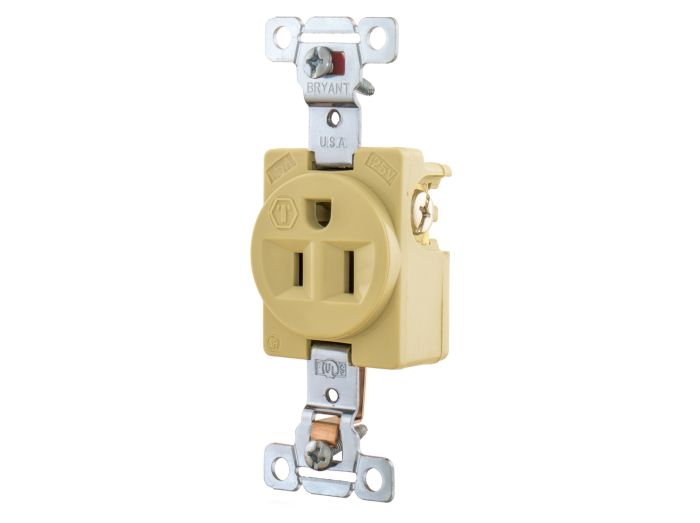

The BRYANT 5261I is a straight blade single receptacle. Constructed from nylon, it features a circuit ID marking area and a heavy-duty, copper-alloy self-grounding system. This receptacle is ideal for commercial and industrial applications where electrical performance and durability are required.

• Nylon Construction with Circuit ID Marking Area
• Heavy Duty, Copper-Alloy Self-Grounding System
• Commercial/Industrial Grade

Product Highlights

The BRYANT 5261I is a durable and reliable receptacle suitable for various commercial and industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5261I
• Country of Origin: USA

Technical Specifications

• Approval: UL, CSA C22.2, NOM, CE, Fed Spec WC596
• Color: Ivory
• Configuration: 5-15R
• Grade: General Use
• Ground Type: Grounding
• Manufacturer Name: Bryant
• Material: Nylon
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• PDW ID: ECL162874
• Product UPC: 781786624955
• Type: Single
• Wiring: Back, Side
• Application: Extra Heavy Duty Industrial Specification Grade
• Catalog Number: 5261I
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Extra Heavy Duty
• Style: Finder Groove Face
• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Wattage: 1875
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Brand: Bryant Electric
• Compatible Devices: All
• Connector Type: Plug in
• Total Power Outlets: 1
• Manufacturer: Bryant
• Part Number: 5261-I
• Model: 5261I
• Straight Blade Receptacles: Straight Blade Receptacles
• AFCI: No
• Connection Orientation: Straight
• Cover: No
• Cover Type: No
• Country of Origin: USA (subject to change)
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Ivory
• Housing Material: Nylon
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• IP Rating: IP20
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 2
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Corrosion Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Volts AC: 120
• Amps: 15
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Connection Type: Receptacle
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
