Product Description

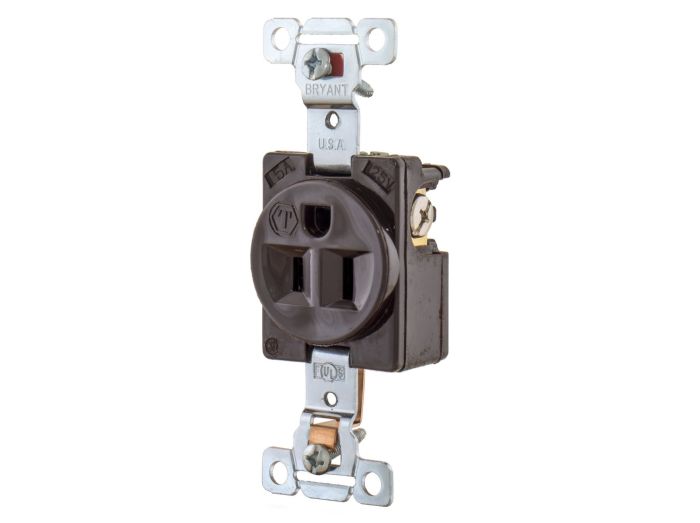

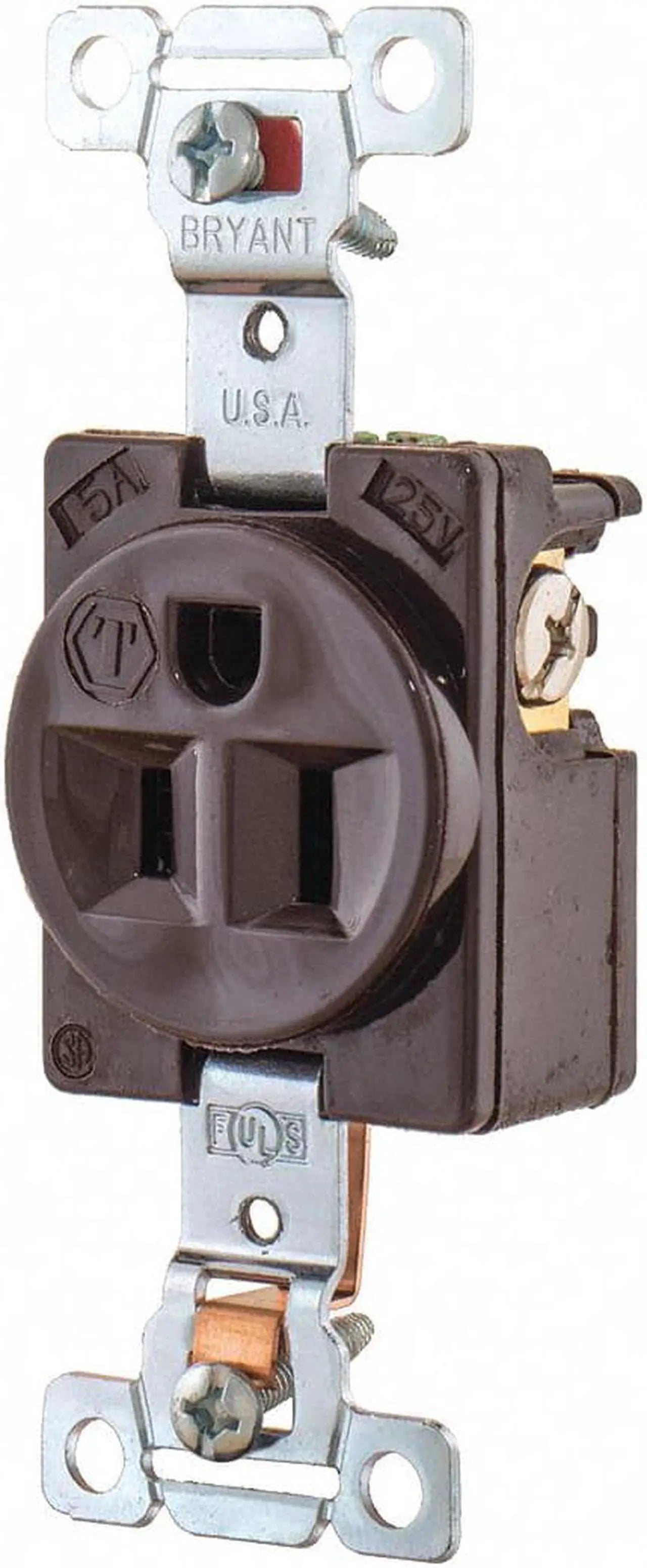

The BRYANT 5261 is a single, commercial/industrial grade receptacle. This 2-pole, 3-wire grounding receptacle supports 15A and 125V with a 5-15R NEMA rating. Designed for standard installations, it provides electrical performance and durability without specialized features.
- Commercial/Industrial Grade
- 2-Pole 3-Wire Grounding
- Back and Side Wired
Product Highlights
This receptacle is ideal for indoor use in demanding environments, ensuring a reliable power connection.
Product Information
Standard Information
-
Brand: BRYANT
-
Manufacturer Part Number: 5261
-
Country of Origin: USA
Technical Specifications
-
Application: Extra Heavy Duty Industrial Specification Grade
-
Catalog Number: 5261
-
Color: Brown
-
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
-
EU RoHS Indicator: Yes
-
Item Type: Single
-
Material - Mounting Hardware: Screw Mounting
-
OEM Brand Name: Hubbell Bryant
-
Series: Extra Heavy Duty
-
Style: Finder Groove Face
-
Type: Single Receptacle
-
UPC: 781786624948
-
Amperage Rating: 15 A
-
Connectivity: Back and Side Wired
-
Current Rating: 15 A
-
Phase: Single Phase
-
Voltage Rating: 125 V
-
Voltage Rating Description: 125 V
-
Wattage: 1875
-
Number Of Poles: 2-Pole
-
Number Of Wires: 3-Wire
-
Wire Size: #14 AWG to #12 AWG
-
Nema Rating: 5-15R
-
AFCI: No
-
Brand: BRYANT
-
Connection Orientation: Straight
-
Cover: No
-
Cover Type: No
-
Flange Type: Non-Flanged
-
For Location: Indoor
-
GFCI: No
-
Grade: General Use
-
Grounding: Grounded
-
Horsepower Rating: 1/2 hp
-
Housing Color: Brown
-
Housing Material: Nylon
-
IP Rating: IP20
-
Includes Mounting Hardware: Yes
-
Market: Industrial
-
Maximum Wire Size: 12 AWG
-
Minimum Wire Size: 14 AWG
-
Mount Type: Flush
-
Mounting Location: Outlet Box
-
NEMA Receptacle Configuration: 5-15R
-
Number of Gangs: 1
-
Number of Outlets: 2
-
Number of Wall Plates Included: 0
-
Polarized: Yes
-
Receptacle Type: Single
-
Special Resistance: Impact Resistant
-
Standards: CSA Certified; UL Listed
-
Surge Protection: No
-
Wire Connection Type: Screw Terminals
-
Wiring Method: Back/Side
-
Manufacturer Part Number: 5261
-
Manufacturer: Bryant Electric
-
Family Series: Bryant Electric Plugs & Receptacles
-
Voltage: 125 VAC
-
Connection Type: Receptacle
-
NEMA Configuration: 5-15R
-
Watertight: No
-
Isolated Ground: No
-
Illuminated: No
-
Approvals: CSA, UL
-
Comments: Specification Grade
-
Compatible Devices: All
-
Connector Type: Plug in
-
Total Power Outlets: 1
-
Material: Nylon
