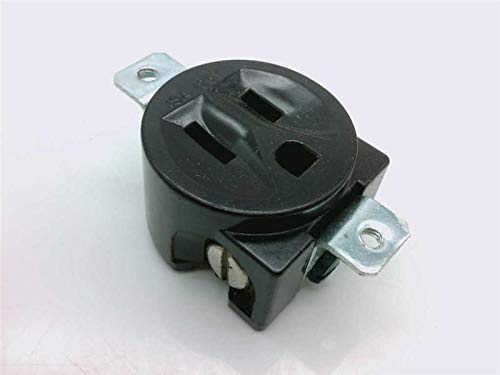

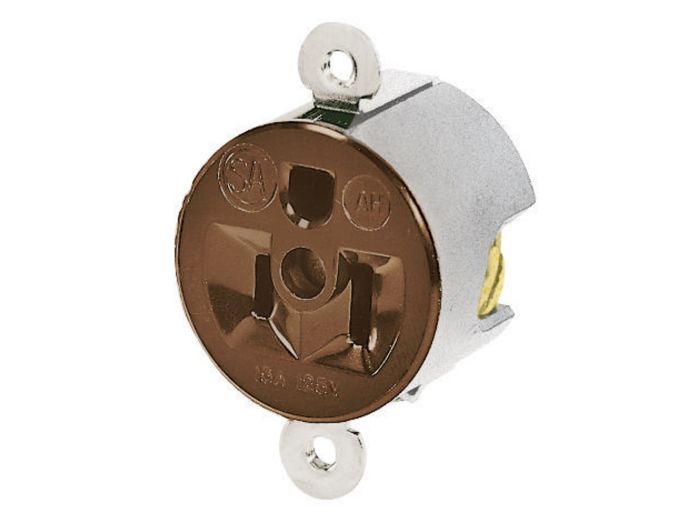

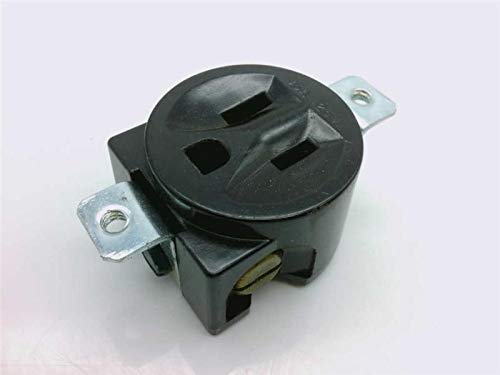

Bryant 5258 Straight Blade Single Receptacle 15AMP 125V

Product Description

The BRYANT 5258 is a straight blade, single receptacle rated for 15AMP and 125V. This panel mount single receptacle is designed for commercial and industrial use. It features a 2-pole, 3-wire grounding configuration and side wiring with a urea face.

• 125V
• 15AMP
• Straight Blade

Product Highlights

This receptacle is ideal for commercial and industrial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5258
• Country of Origin: United States

Technical Specifications

• Voltage: 125V
• Amperage: 15AMP
• Type: Receptacle
• Blade Type: Straight Blade
• Configuration: Single
• Application: Commercial, Electrical Wiring, Outlet
• Catalog Number: 5258
• Color: Brown
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: Panel Mount Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Extra Heavy Duty
• Style: Finder Groove Face
• UPC: 781786659209
• Amperage Rating: 15 A
• Connectivity: Side Wired Only
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Brand: Hubbell
• Material: Plastic
• Suitable For: Interior
• Country of Origin: United States
• Manufacturer Part Number: 5258
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Connection Type: Receptacle
• NEMA Configuration: 5-15R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
• Ground: Grounding
• Wiring Method: Back & Side
