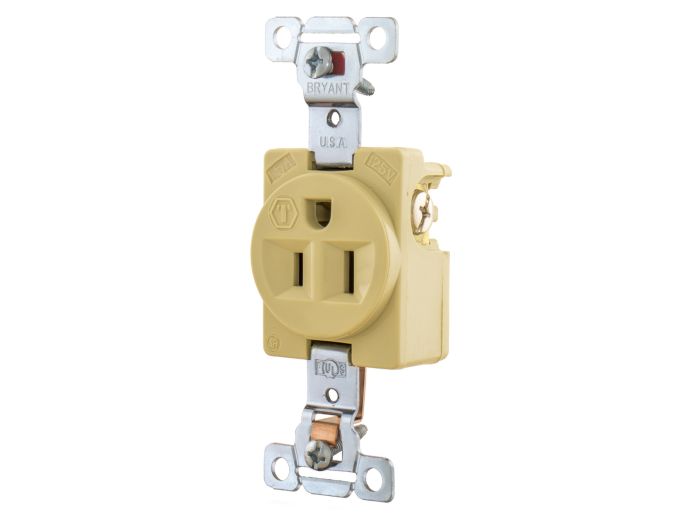

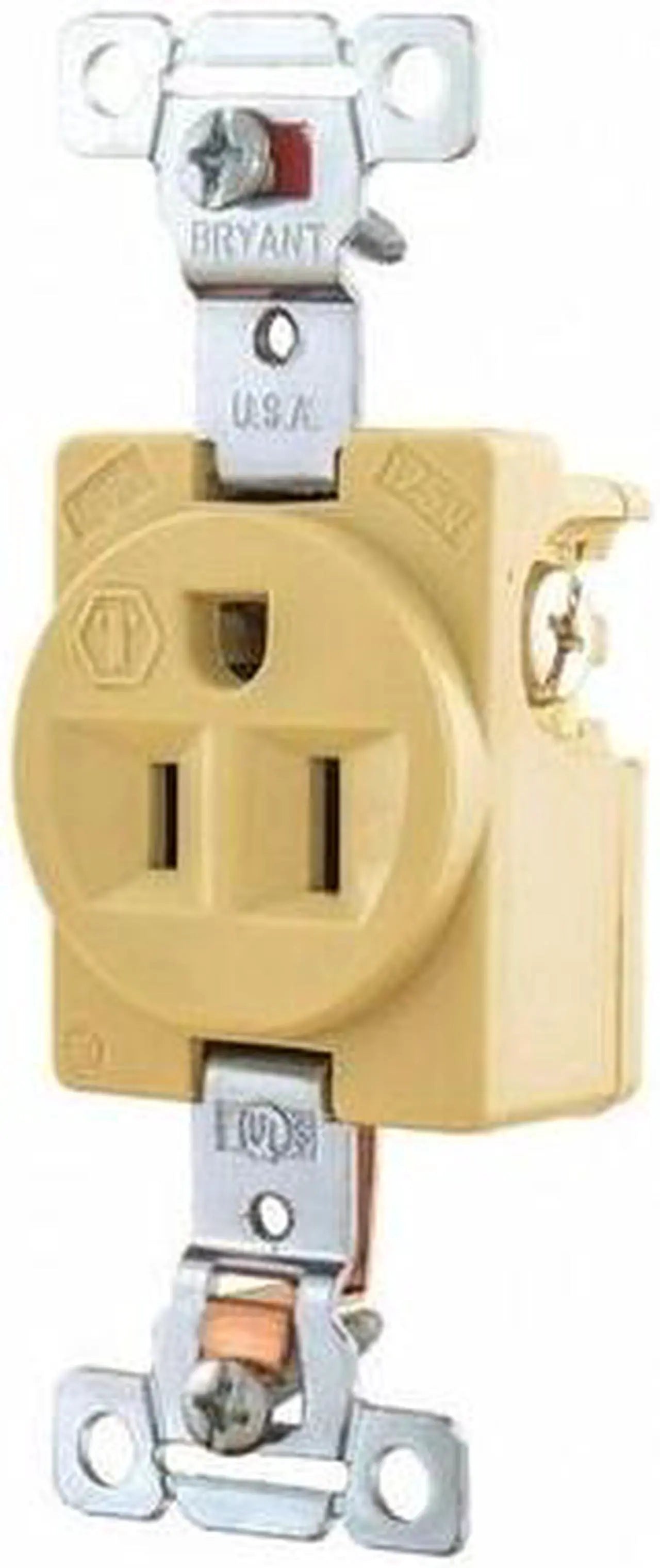

Bryant 5251I Receptacle Single 15A 125V 5-15R

Product Description

The BRYANT 5251I is a single, commercial/industrial grade receptacle. This 2-pole, 3-wire grounding receptacle is side wired and rated for 15A at 125V with a 5-15R NEMA rating. Designed for standard installations where electrical performance and durability are required.

• Commercial/Industrial Grade
• 2-Pole 3-Wire Grounding
• Side Wired

Product Highlights

The BRYANT 5251I receptacle is ideal for commercial and industrial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5251I
• Country of Origin: USA

Technical Specifications

• Application: Extra Heavy Duty Compact Industrial Specification Grade
• Catalog Number: 5251I
• Color: Ivory
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Single
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Finder Groove Face
• Type: Straight Blade Receptacles
• UPC: 781786174047
• Amperage Rating: 15 A
• Connectivity: Side Wired Only
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Brand: BRYANT
• Voltage: 125VAC
• MPN: 5251I
• Model: 5251I
• AFCI: No
• Connection Orientation: Straight
• Cover Type: No
• Cover: No
• Face Plate Height: 1.8 in
• Face Plate Width: 1.4 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: Ivory
• Housing Material: Nylon
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 1
• Overall Depth: 0.9 in
• Polarized: Yes
• Receptacle Type: Single
• Special Resistance: Corrosion Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Side
• UNSPSC: 39121406
• Manufacturer Part Number: 5251I
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Connection Type: Receptacle
• NEMA Configuration: 5-15R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
