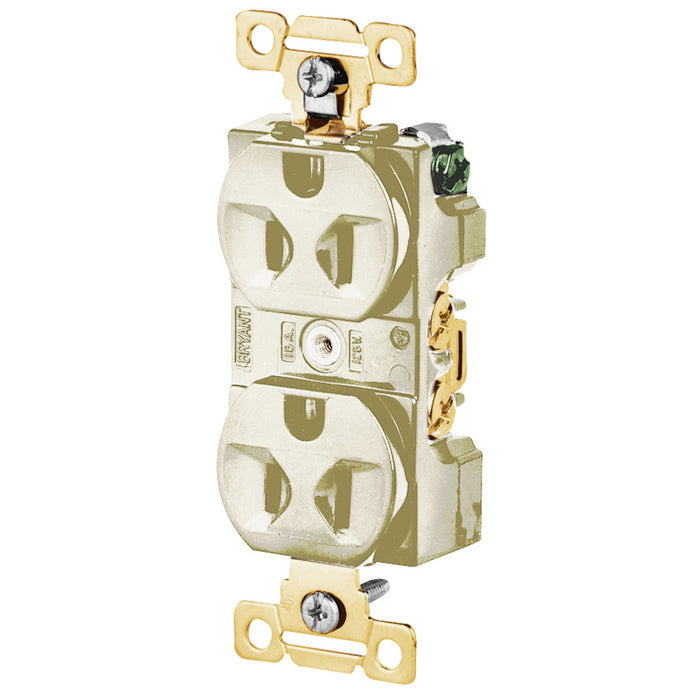

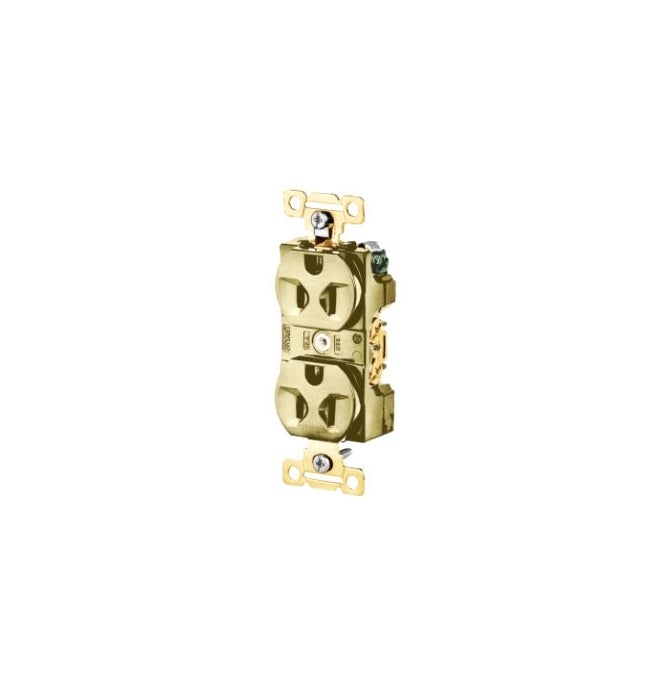

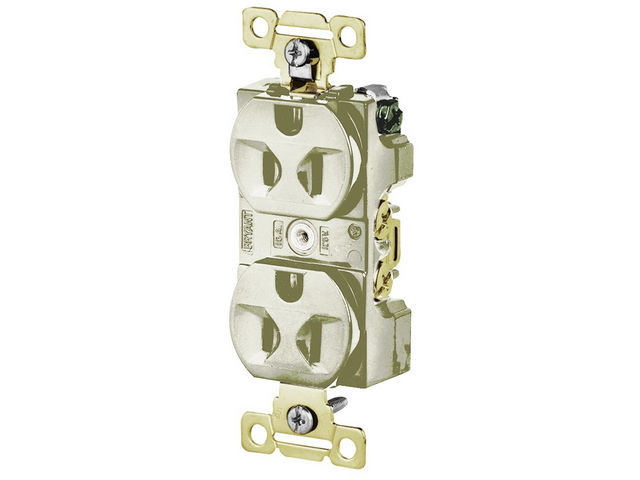

Bryant 5242I Duplex Receptacle 15A 125V 5-15R Single Pack

Product Description

The BRYANT 5242I is a duplex receptacle designed for commercial and industrial use. This 2-pole, 3-wire grounding receptacle is side wired and rated for 15A at 125V. It is a standard-sized product suitable for heavy-duty applications and indoor dry environments.

• Commercial/Industrial Grade
• 2-Pole 3-Wire Grounding
• Side Wired

Product Highlights

The BRYANT 5242I is ideal for industrial settings requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5242I

Technical Specifications

• Application: Extra Heavy Duty Compact Industrial Specification Grade
• Catalog Number: 5242I
• Color: Ivory
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Finder Groove Face
• Type: Duplex Receptacle
• UPC: 781786624801
• Amperage Rating: 15 A
• Connectivity: Side Wired Only
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Product Name: Bryant Duplex Receptacle Industrial Grade 15A 125V 5-15R Ivory (5242I)
• Brand: Bryant
• SKU: 5242I
• Mfr. Part Number: 5242I
• Housing Color: Ivory
• UPC Code: #781786624801
• Poles: 2-POLE
• Wires: 3-WIRE GROUNDING
• Wiring: SIDE WIRED
• Amperage: 15A
• Voltage: 125V
• NEMA: 5-15R
