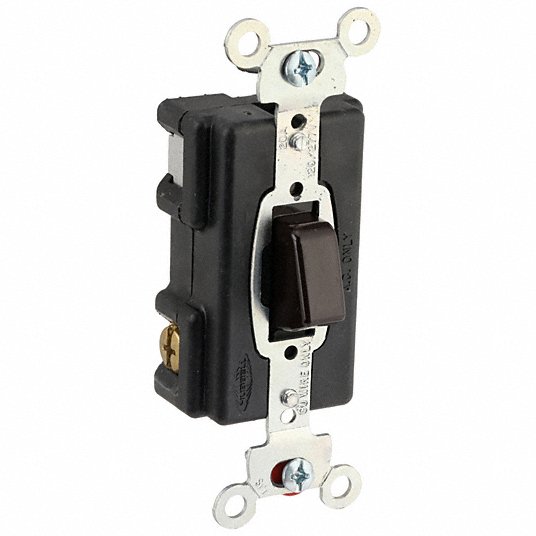

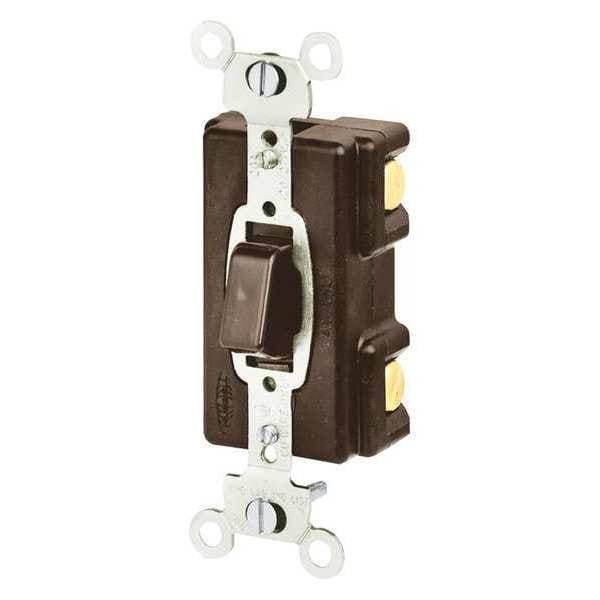

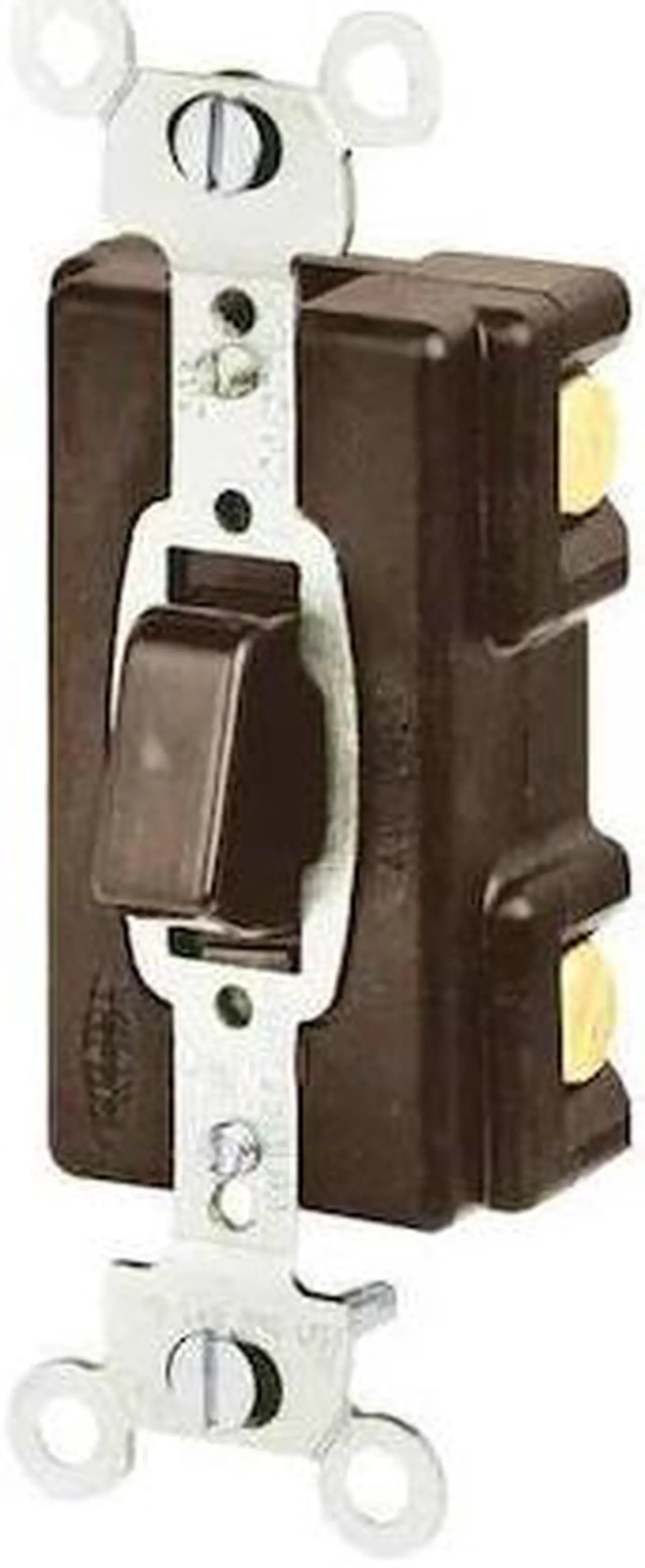

Bryant 4983 Wall Switch 20A 3-Way Type Press Style

Product Description

The BRYANT 4983 is a 20A wall switch with a 3-way type and press style. It is designed for industrial applications. The switch features a brass and nickel-plated steel ground terminal and offers maintained switch function. It supports back and side wiring methods and meets UL/CSA standards.

• Current Rating 20 A
• Voltage Rating 120/277V AC
• Wiring Method Back, Side

Product Highlights

This BRYANT wall switch is ideal for industrial settings, providing reliable performance and easy installation with its screw terminals.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4983
• Country of Origin: US

Technical Specifications

• Brand: BRYANT
• Features: Brass and Nickel Plated Steel Ground Terminal
• Switch Type: 3-Way
• MPN: 4983
• Model: 4983
• Color: Brown
• Country of Origin: US
• Style: Three Way
• UPC: 781786498303
• Current Rating: 20 A
• Switch Function: Maintained
• Voltage Rating: 120/277V AC
• Wiring Method: Back, Side
• Horsepower Rating: 2 hp
• Number of Switches: 1
• Standards: UL/CSA
• Switch Style: Push Button
• Wire Connection Type: Screw Terminals
• Market: Industrial
• Amps AC: 20 A
• Voltage AC: 120 to 277
• Application Environment: Industrial
• Description/Special Features: Brass and Nickel Plated Steel Ground Terminal
• Rated HP: 1 to 2
• Voltage Rating Description: 120/277 VAC
• Current / Amperage Rating: 20 A
• Series: General Purpose
• Illuminated: No
• Locking: No
• Nightlight: No
• Pilot Light: No
• UNSPSC: 39121512
