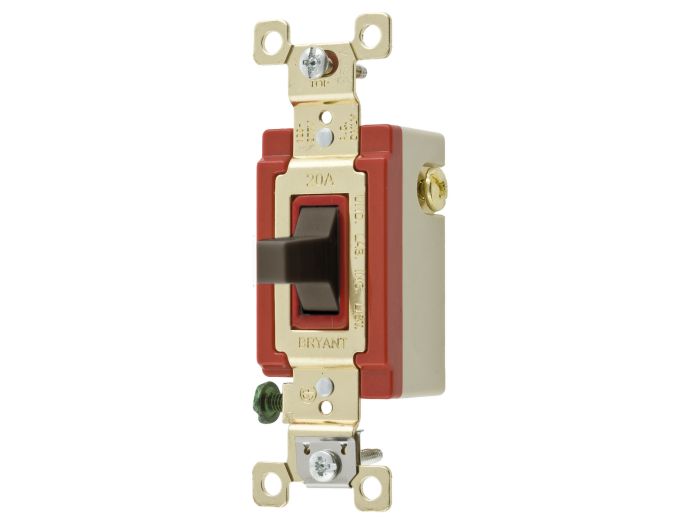

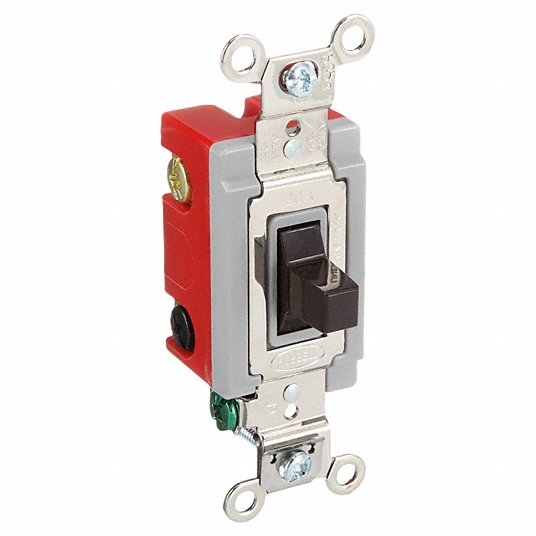

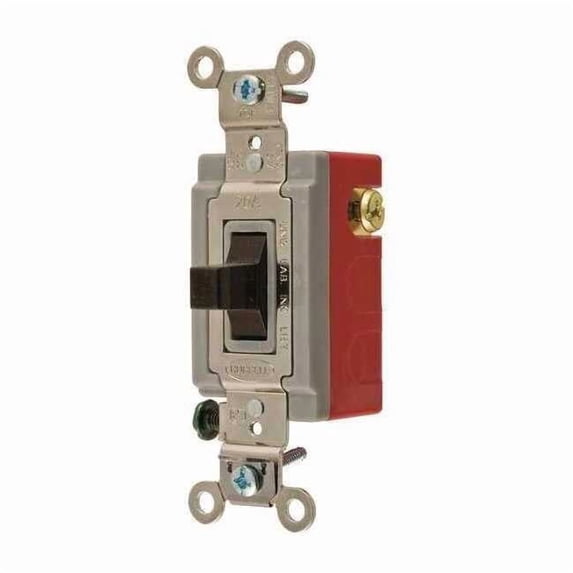

Bryant 4921 Industrial Grade Toggle Switch 20A 120/277V AC

Product Description

The BRYANT 4921 is an industrial grade toggle switch designed for general purpose AC applications. This momentary single pole-double throw center off switch is rated for 20A at 120/277V AC and features back and side wiring. It provides reliable power control for various electrical devices and equipment.

• Rated for 20A at 120/277V AC
• Momentary single pole-double throw (SPDT) configuration
• Back and side wiring for versatile installation

Product Highlights

Industrial grade toggle switch with momentary SPDT function, suitable for controlling electrical circuits in various applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4921
• Country of Origin: China

Technical Specifications

• Application: Back and Side Wired
• Catalog Number: 4921
• Color: Brown
• Series: Extra Heavy Duty
• Style: Single Pole Double Throw
• Type: Toggle
• UPC: 781786624061
• Amperage Rating: 20 A
• Voltage Rating: 120/277 VAC
• Mounting Type: Wall Mount
• Voltage: 120 VAC, 277 VAC
• Current Rating: 20 Amps
• Maximum Current: 20 Amps
• Insulation Resistance: 100 Megaohms
• Operation Mode: ON-OFF
• Switch Type: Toggle
• Circuit Type: single_pole
• Connector Type: Quick Connect
• Material Type: Plastic
• Contact Material: Brass
• Horsepower Rating: 2 hp
• Number of Switches: 1
• Standards: NEMA WD-1; UL20
• Wire Connection Type: Screw Terminals
• Features: Quiet
• Wiring Method: Back/Side
• Overall Height: 1.7 in
• Mount Hole Center-to-Center Height: 2.4 in
• Overall Width: 1.9 in
• Illuminated: No
• Locking: No
• Approvals: CSA, UL
• Amps: 20 Amps
• Grounding: Grounded
