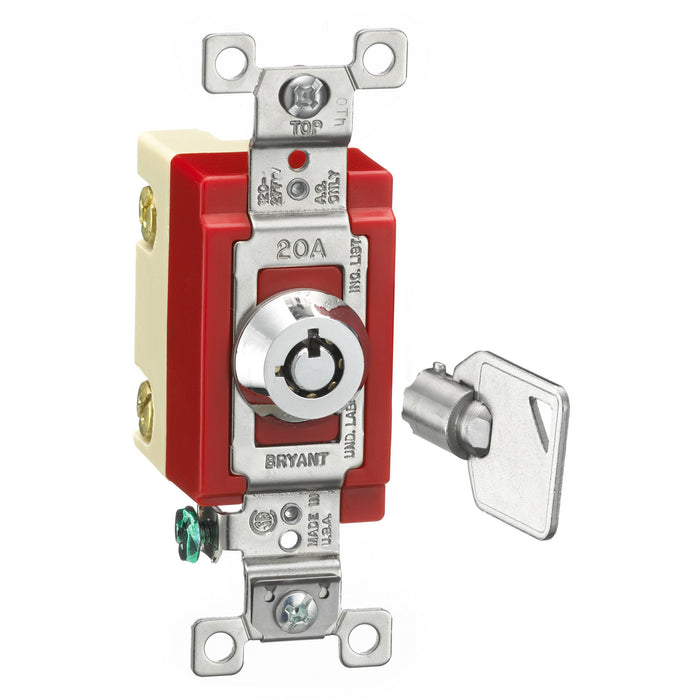

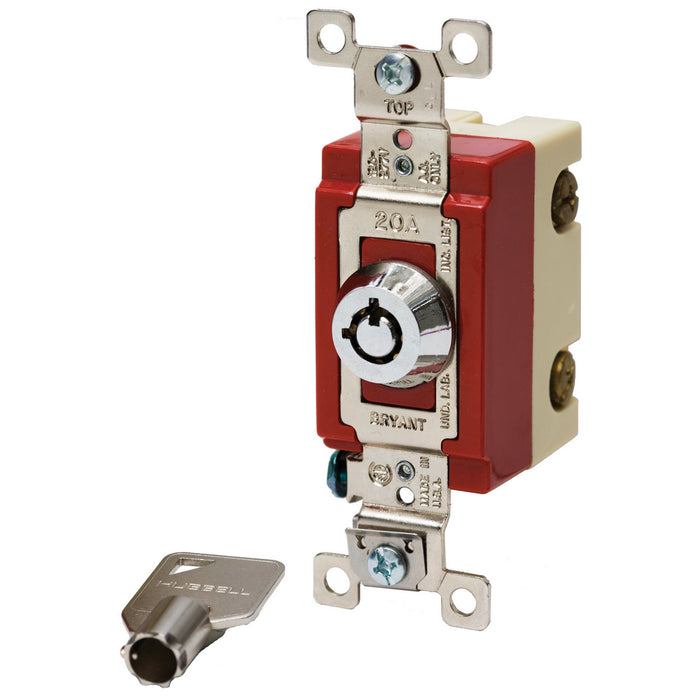

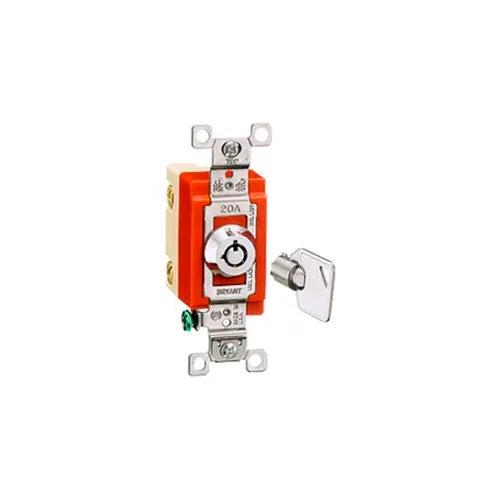

Bryant 4901RKL Barrel Key Switch, Single Pole, 20A, 120/277V AC, Rotary Locking

Product Description

The Bryant 4901RKL is a barrel key switch with a single pole. This industrial switch is rated for 20A and 120/277V AC and features rotary locking. It is constructed with a thermoset base and face, metallic toggle/actuator, and high-performance copper alloy terminals. The switch complies with UL 20 and NEMA WD-1 standards.

• Rated for 20A and 120/277V AC
• Complies with UL 20 and NEMA WD-1 standards
• Features a thermoset base and face

Product Highlights

This Bryant barrel key switch offers security and reliability for industrial applications. It is suitable for controlling lighting, machinery, and alarm systems.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4901RKL
• Country of Origin: Mexico

Technical Specifications

• Brand: Bryant
• Manufacturers Part Number: 4901RKL
• Voltage: 120 / 277V AC
• Amperage: 20 A
• Wiring Syle: Back & Side Wired
• Contact Type: Single Pole
• Made in the USA: Yes
• Terminal Gauge Max: 10 AWG ga
• Terminal Gauge Min: 14 AWG ga
• Type: Locking
• Series: Extra Heavy Duty
• Application: Back and Side Wired
• Voltage Rating: 120/277 VAC
• Current / Amperage Rating: 20 A
• Switch Function: Maintained
• Switch Style: Locking
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• Family Series: Bryant Electric Switches
• Grade: Industrial
• Switch Configuration: Single Pole
• Illuminated: No
• Locking: Yes
• Approvals: CSA, UL
• Comments: Barrel Key
• amps: 20
• style: Single Pole
• v/AC: 120/277
• Electrical switch type: SPST (Single Pole Single Throw)
• Volts: 120/277 V
• Actuator: Key Operated
• Connection: Back and Side Wired/Screw Terminal
• Environmental Conditions: -40 to 75 deg C Operating Temperature/UL 94 V-2 Flammability Rating
• Indicator: Dot Indicates ON
• Load: Inductive/Resistive
• Lock Type: Cylindrical
• Manufacturer Name: Hubbell
• Material: Composite
• Mounting: Threaded
• Number of Poles: 1
• Power Rating: 5540 W
