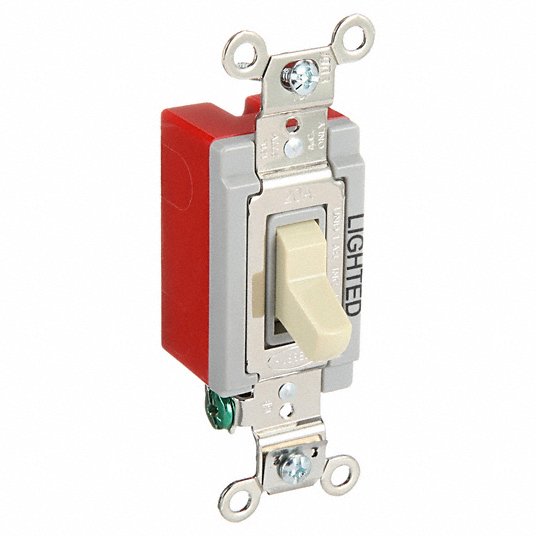

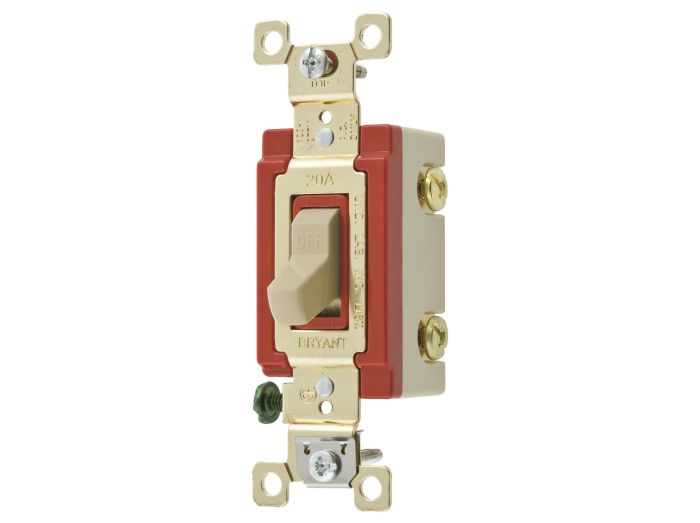

Bryant 4901GLI Illuminated Industrial Grade Toggle Switch, Single Pole, 20A 120/277V AC

Product Description

The BRYANT 4901GLI is an illuminated industrial-grade toggle switch designed for general-purpose AC power control. This single-pole switch is rated for 20A at 120/277V AC and features back and side wiring options. It provides power control for electric devices and equipment such as ceiling fans, lights, outlets, and appliances.

• Light on with Load Off
• Single Pole
• Back and Side Wired

Product Highlights

The BRYANT 4901GLI toggle switch is ideal for controlling electrical circuits in various applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4901GLI
• Country of Origin: China

Technical Specifications

• Application: Back and Side Wired
• Catalog Number: 4901GLI
• Series: Extra Heavy Duty
• Style: Single Pole
• Type: Toggle
• UPC: 781786623842
• Amperage Rating: 20 A
• Current Rating: 20 A
• Voltage Rating: 120/277V AC
• Voltage Rating Description: 120/277 VAC
• Brand: BRYANT
• Features: Light on with Load Off
• Horsepower Rating: 2 hp
• Illuminated: Yes
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: Single Pole
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121507
• Model: 4901GLI
• Family Series: Bryant Electric Switches
• Grade: Industrial
• Switch Configuration: Single Pole
• Voltage: 120 VAC, 277 VAC
• Operator Color: Ivory
• Locking: No
• Wiring: Back and Side Wired
• Approvals: CSA, UL
• Amps: 20A
• Hp: 2 hp
• Illuminated / Non-illuminated: Yes
• Market: Industrial Grade
• Width: 1.91 in
• Wire Connection Location: Back, Side
• Wire Connection Types: Screw Terminals
