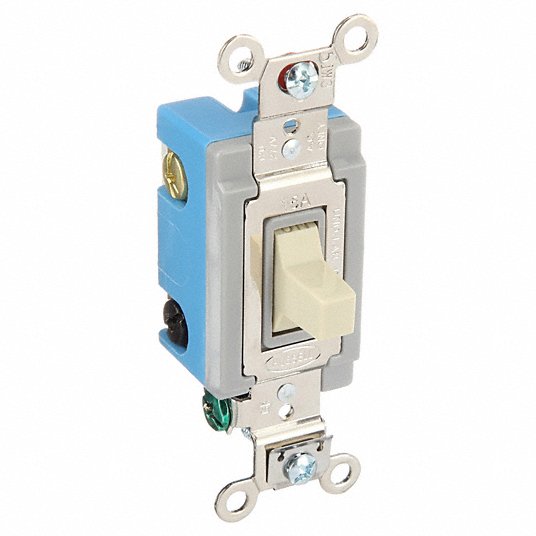

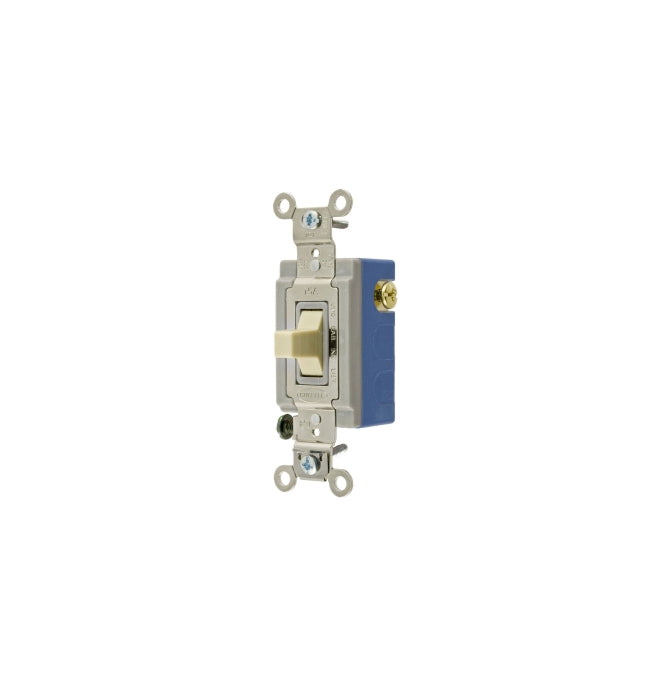

Bryant 4821I Double Throw AC Toggle Switch 0.5 HP at 120 VAC, 2 HP at 240/277 VAC

Product Description

The BRYANT 4821I is a double throw AC toggle switch. This switch is designed for industrial applications. It features back and side wiring and has a momentary operation type. The switch provides power control for electric devices and equipment such as ceiling fans, lights, outlets, and appliances.

• Industrial grade toggle switch
• Momentary single pole-double throw center off
• Back and side wired

Product Highlights

This toggle switch is ideal for controlling power in various electrical devices and equipment.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4821I
• Country of Origin: China

Technical Specifications

• Application: Industrial
• Approval: UL, CSA
• Color: Ivory
• Contact Configuration: SPDT
• Handle Type: Toggle
• Manufacturer Name: Bryant
• Operation Type: Momentary
• Power Rating: 0.5 HP at 120 VAC, 2 HP at 240/277 VAC
• Type: 3-Position, 2-Circuit
• Wiring: Back, Side
• Catalog Number: 4821I
• Series: Extra Heavy Duty
• Style: Single Pole Double Throw
• Amperage Rating: 15 A
• Voltage Rating: 120/277 VAC
• Part Number: 4821I
• Brand: Bryant
• Current Rating: 15 A
• Horsepower Rating: 2 hp
• Illuminated: No
• Number of Switches: 1
• Standards: UL/CSA/NOM
• Switch Function: Momentary
• Switch Style: Toggle
• Switch Type: Single Pole/Double Throw
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121507
